Exhaust Pipe And Catalytic Converter: Components: Illustration

WARNING: This page is about a different car, the 2010 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

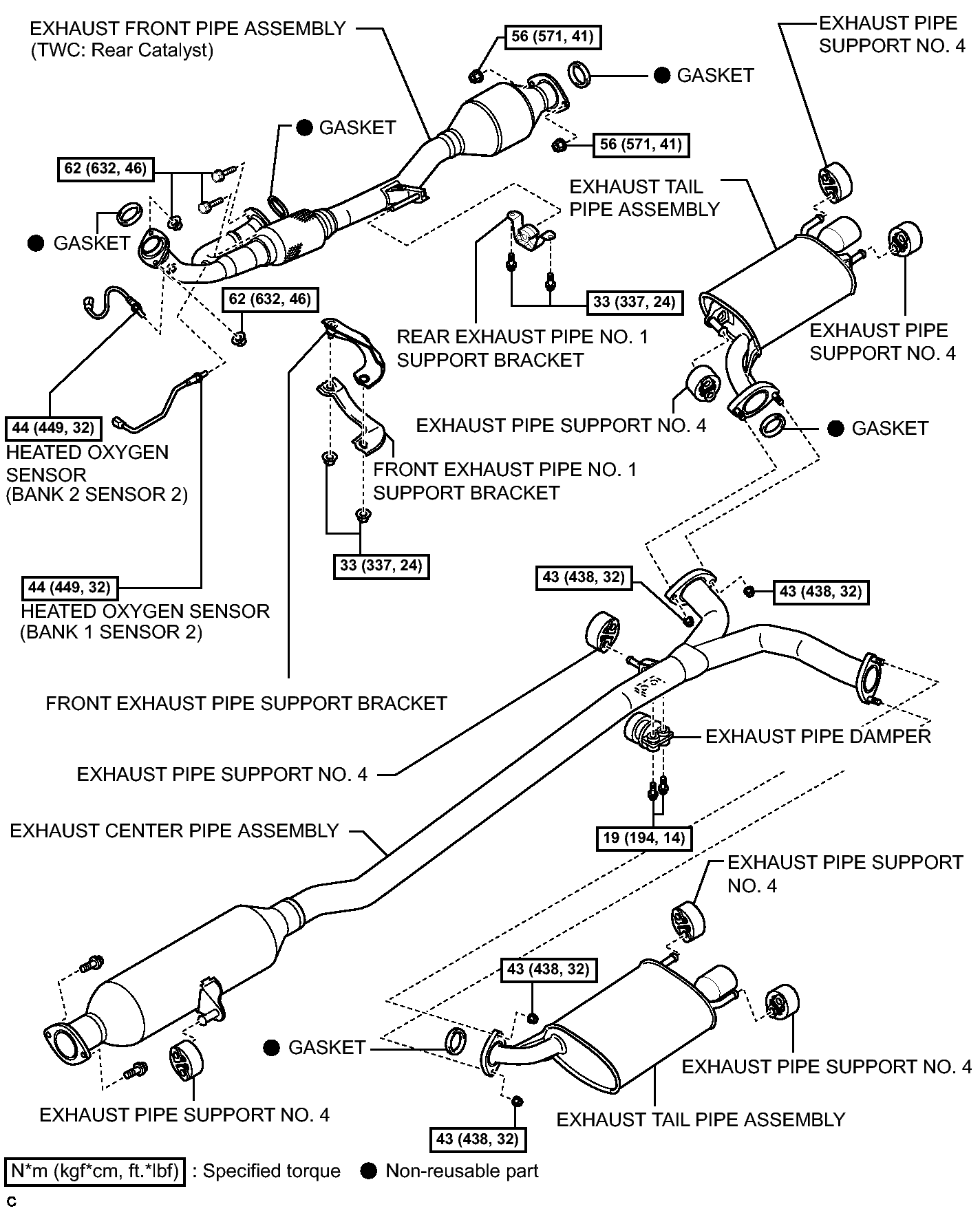

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications
GTY174447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
