VC Output Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2010 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

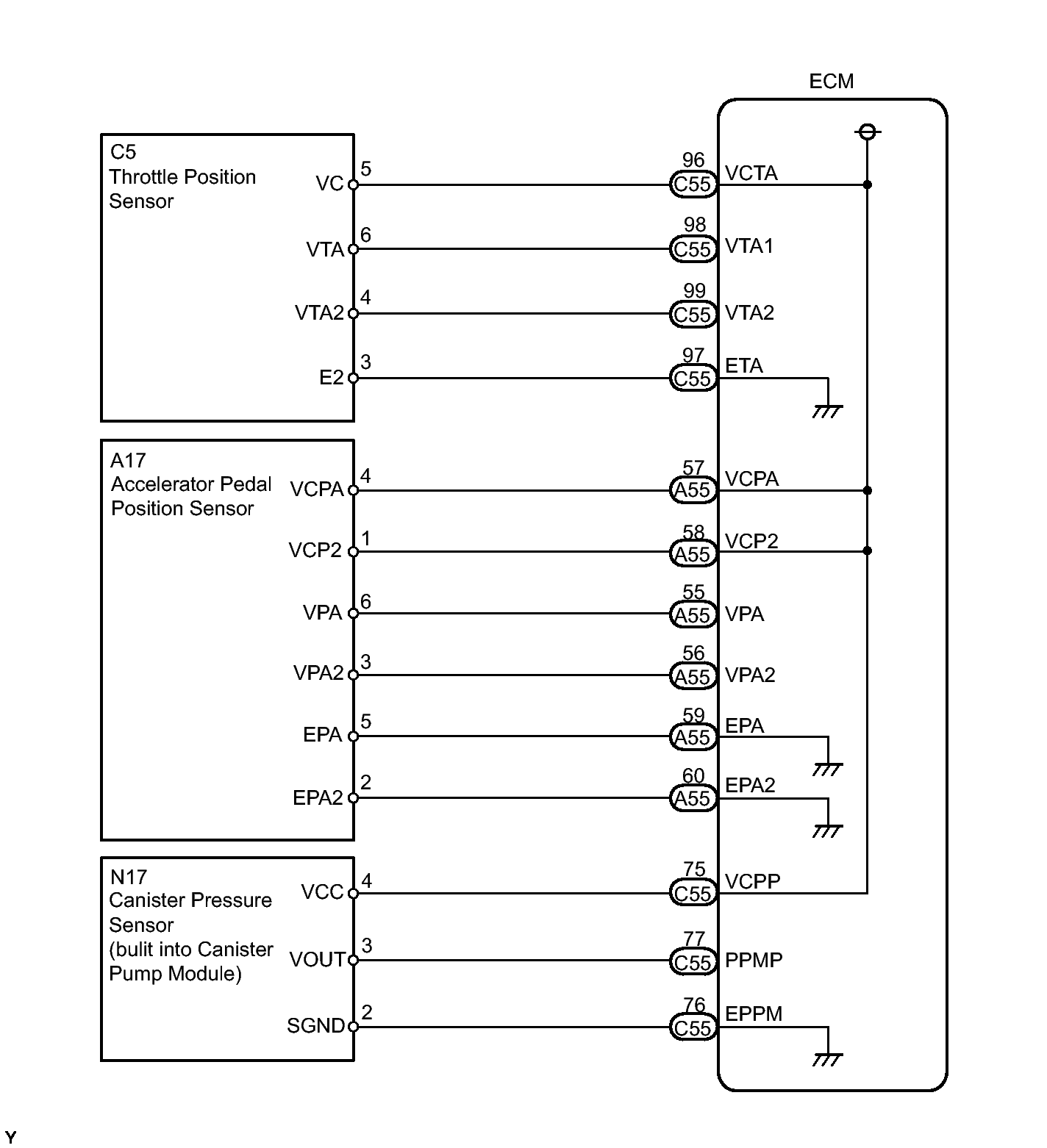

Fig 1: VC Output Wiring Diagram (1 Of 2)
GTY180673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

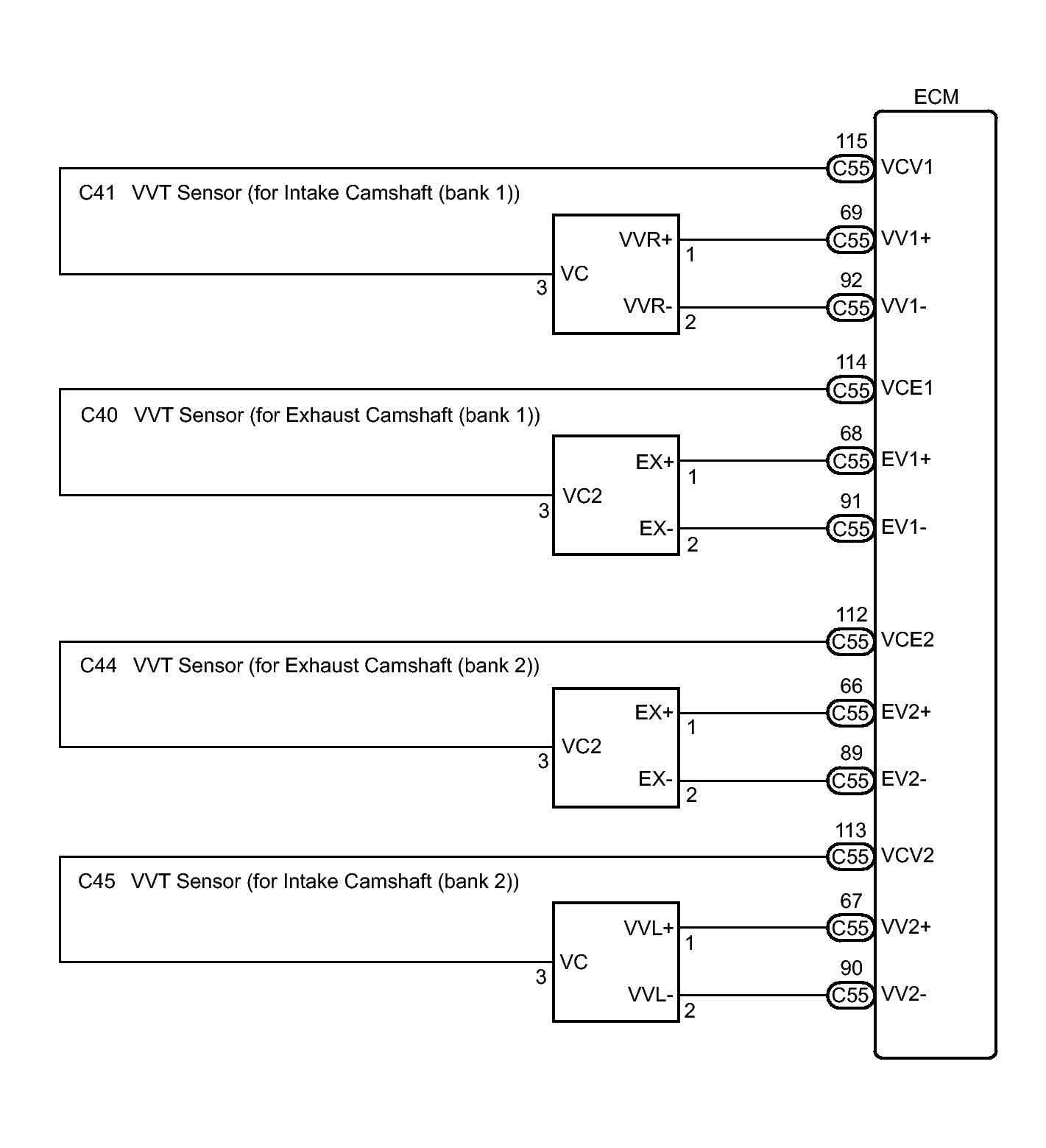

Fig 2: VC Output Wiring Diagram (2 Of 2)
GTY178271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
