Active Control Engine Mount System: Description
WARNING: This page is about a different car, the 2010 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

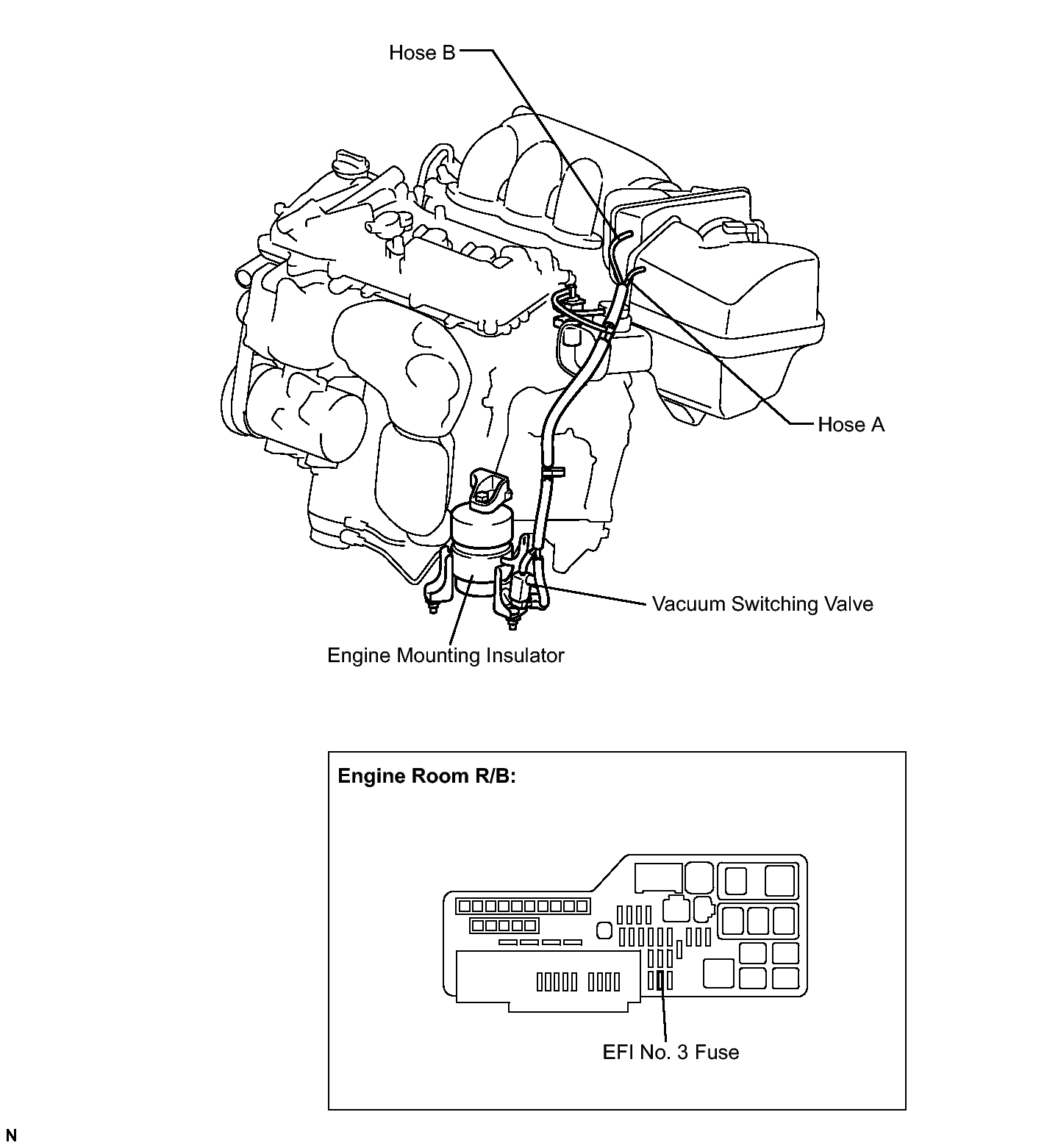

LOCATION
The Active Control Engine Mount (ACM) system decreases engine vibration at a low engine speed using the ACM VSV. The VSV is controlled by a pulse signal transmitted to the VSV from the ECM. The frequency of this pulse signal is matched to the engine speed to decrease engine vibration.
