DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input): Procedure

1. Disconnect the park/neutral position switch connector.
   Fig 1: Disconnect The Park/Neutral Position Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch to ON.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   C1-1 (RB) - Body ground	Ignition switch ON	11 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Turn the ignition switch to ON.
   Fig 2: Turn The Ignition Switch To ON

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   C1-4 (B) - Body ground	Ignition switch ON	11 to 14 V

NG → See step   5

OK: Go to next step

1. Disconnect the park/neutral position switch connector.
   Fig 3: Disconnect The Park/Neutral Position Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

   Standard Resistance

   Tester Connection	Shift Lever Position	Specified Condition
   4 - 9	P or N	Below 1 Ω
   	Except P and N	10 Ω or higher
   1 - 2	R	Below 1 Ω
   	Except R	10 Ω or higher
   1 - 7	D, S, "+" or "-"	Below 1 Ω
   	Except D, S, "+" and "-"	10 Ω or higher

NG → See step   7

OK: Go to next step

1. Connect the park/neutral position switch connector.
   Fig 4: Connect The Park/Neutral Position Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the TCM connectors.
3. Turn the ignition switch to ON, and measure the voltage according to the value(s) in the table below when the shift lever is moved to each position.

   Standard Voltage

   Tester Connection	Shift Lever Position	Specified Condition
   C63-15 (R) - Body ground	R	11 to 14 V*
   	Except R	Below 1 V
   C63-16 (D) - Body ground	D, S, "+" or "-"	11 to 14 V
   	Except D, S, "+" and "-"	Below 1 V

   HINT:

   *: The voltage will drop slightly due to lighting up of the back up light.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   6

1. Turn the ignition switch off.
2. Disconnect the TCM connector.
3. Disconnect the park/neutral position switch connector.
4. Measure the resistance according to the value(s) in the table below.

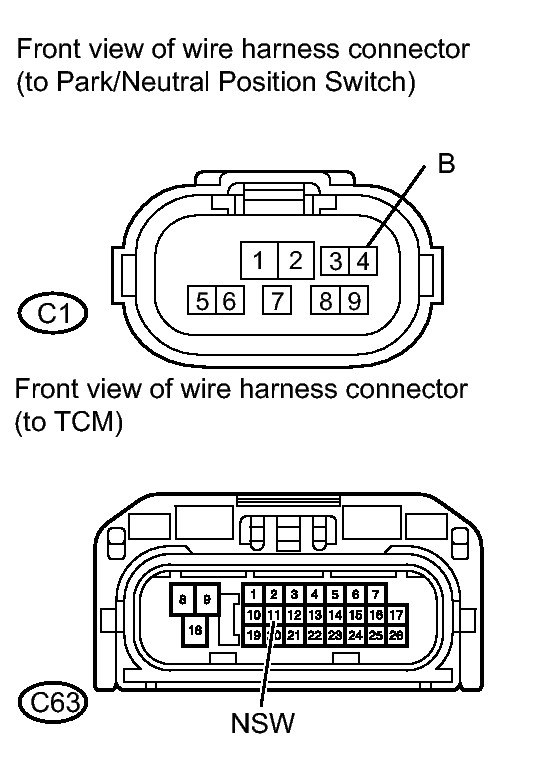

   Fig 5: Measure The Resistance

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance (Check for Open)

   Tester Connection	Condition	Specified Condition
   C1-4 (B) - C63-11 (NSW)	Always	Below 1 Ω

   Standard Resistance (Check for Short)

   Tester Connection	Condition	Specified Condition
   C1-4 (B) or C63-11 (NSW) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   6
