DTC P0617: Starter Relay Circuit High: Wiring Diagram

WARNING: This page is about a different car, the 2010 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

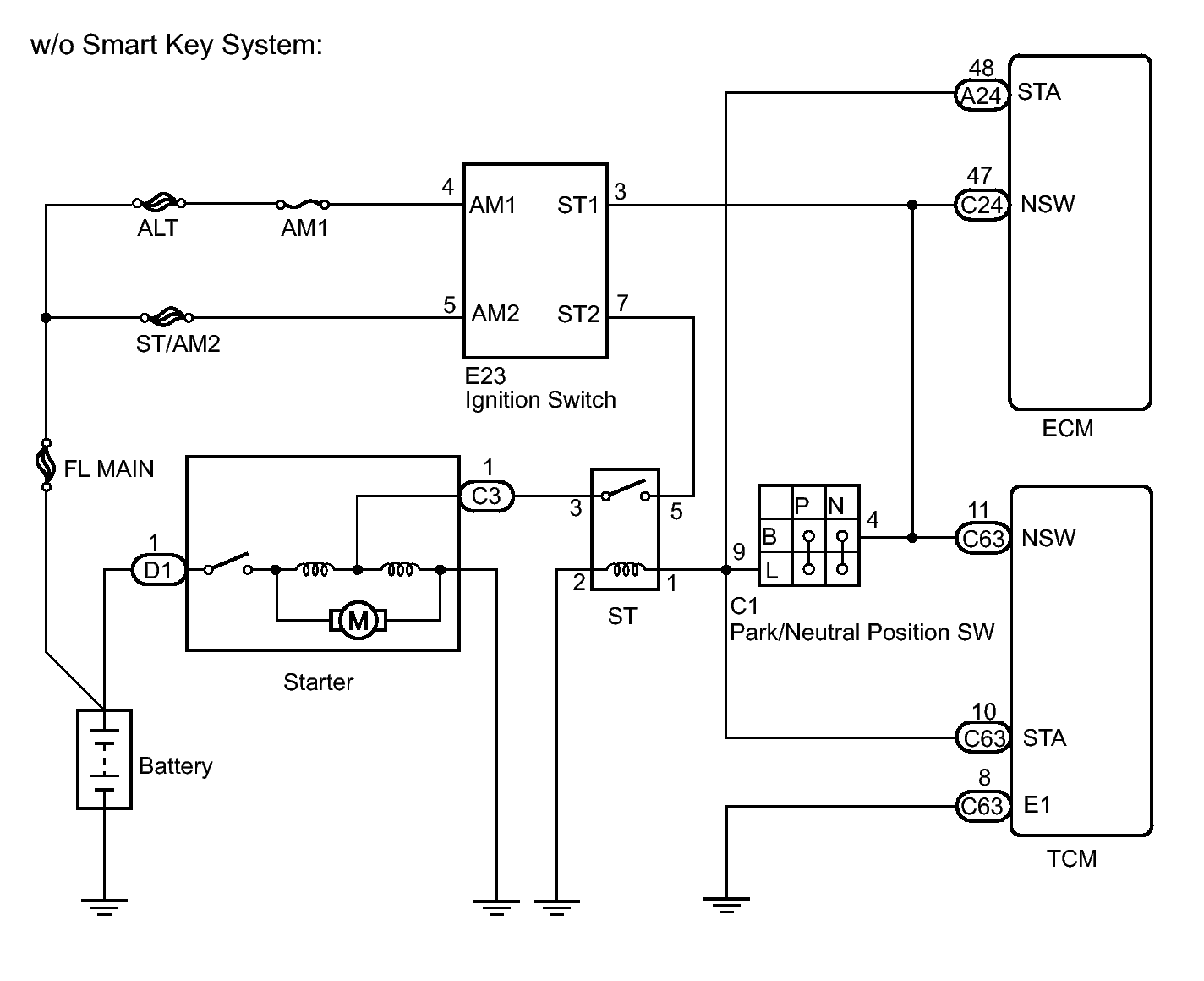

Fig 1: Starter Relay Circuit High Wiring Diagram (1 of 2)
GTY181424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

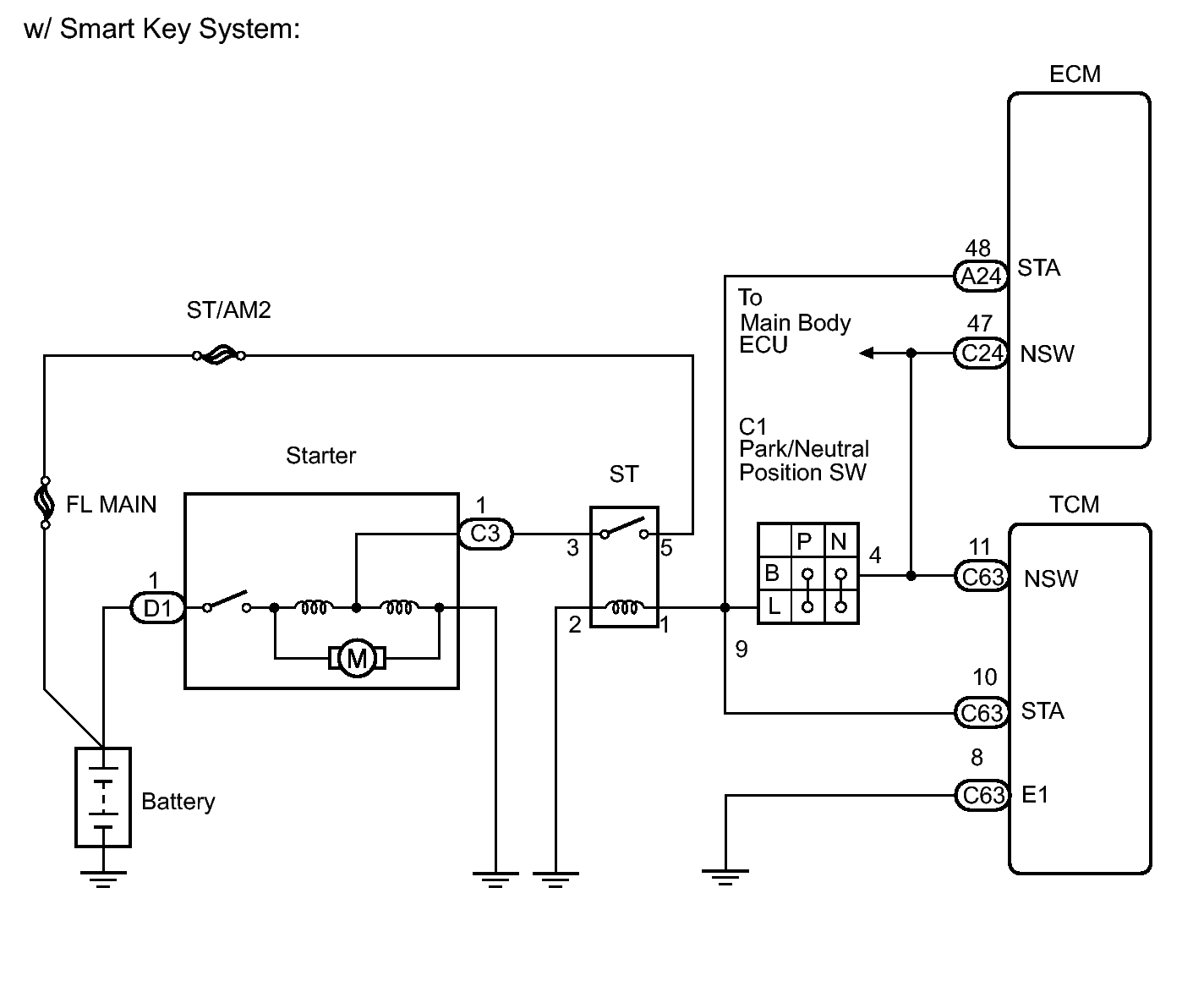

Fig 2: Starter Relay Circuit High Wiring Diagram (2 of 2)
GTY178917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
