: Location of Connector Joining Wire Harness and Wire Harness; : Location of Ground Points: [2AR-FE]

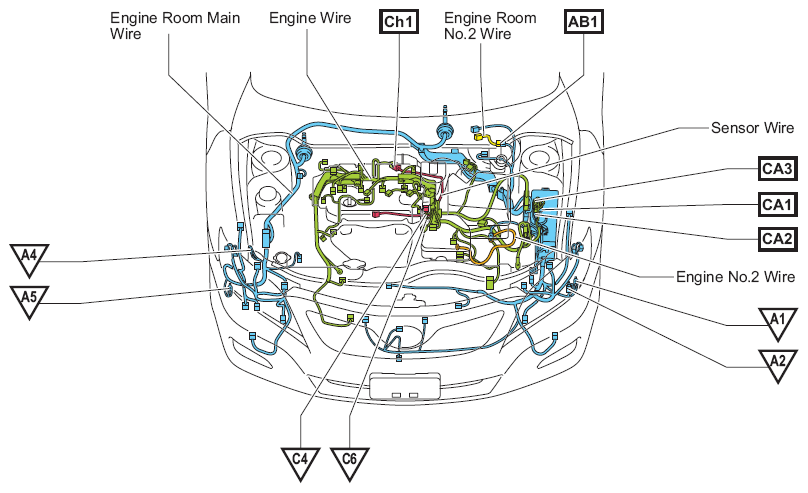

Fig 1: Locating Wiring Harness And Ground Points (2AR-FE)
G07113782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
