High Pitched Horn: Removal: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL (for 2GR-FE)  . Refer to REMOVAL - Step 1
  2. REMOVE FRONT BUMPER ASSEMBLY  . Refer to REMOVAL - Step 2
  3. REMOVE HIGH PITCHED HORN ASSEMBLY
    1. Disconnect the connector.

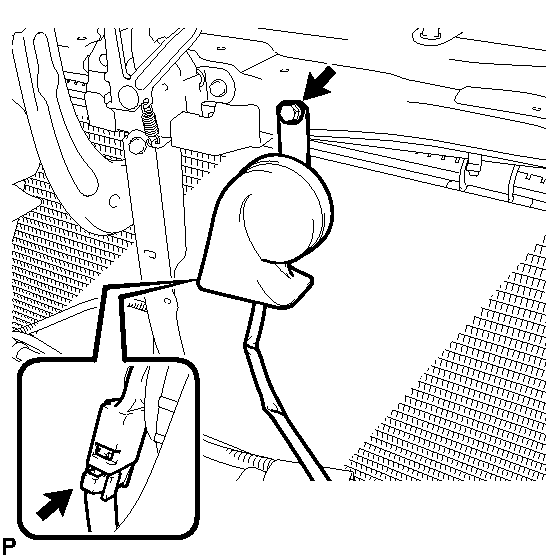

      Fig 1: Locating High Pitched Horn Assembly Bolt
      GTY206897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the high pitched horn assembly.
