Fuel Receiver Gauge Malfunction: Procedure

1. Check if CAN communication DTC is output. Refer to DIAGNOSIS SYSTEM .

   Result

   Result	Proceed to
   CAN communication DTC is not output	A
   CAN communication DTC is output	B. Refer to DIAGNOSTIC TROUBLE CODE CHART

B → GO TO CAN COMMUNICATION SYSTEM

A: Go to next step

1. Connect Techstream to the DLC3.
2. Ignition switch on (IG).
3. Turn Techstream on.
4. Enter following menus: Body Electrical / Combination Meter / Active Test.
5. Check the operation by referring to the table below.
   COMBINATION METER:



   Tester Display	Test Part	Control Range	Diagnostic Note
   Fuel Meter Operation	Fuel receiver gauge	EMPTY, 1/2, FULL	-

   OK

   Needle indication is normal.

NG → REPLACE COMBINATION METER ASSEMBLY

OK: Go to next step

1. Connect Techstream to the DLC3.
2. Ignition switch on (IG).
3. Turn Techstream on.
4. Enter following menus: Body Electrical / Combination Meter / Data List.
5. Check the values by referring to the table below.
   COMBINATION METER:



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Fuel Input	Fuel input signal Min.: 0, Max.: 255	Fuel gauge indicates (E): 35 Fuel gauge indicates (3/4): 85 Fuel gauge indicates (1/2): 145 Fuel gauge indicates (1/4): 186 Fuel gauge indicates (E): 206	-

   OK

   Fuel value signal displayed on Techstream is almost the same as needle indication.

NG → See step   6

OK: Go to next step

1. Disconnect the F2 and fuel sender gauge assesmbly connectors.
   Fig 1: Identifying Combination Meter And Fuel Sender Gauge Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   F2-15 (FR) - 2	Always	Below 1 Ω
   F2-16 (FE) - 1	Always	Below 1 Ω
   2 - Body ground	Always	10 kΩ or higher
   F2-16 - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

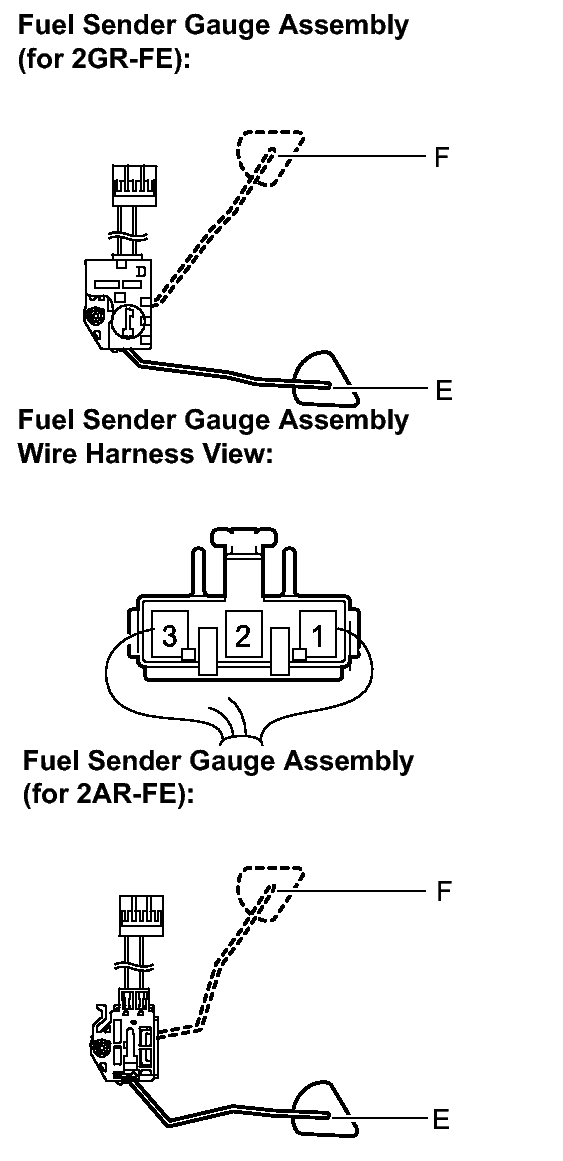

1. Disconnect the fuel sender gauge connector.
   Fig 2: Inspecting Fuel Sender Gauge Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the fuel sender gauge assembly.
3. Check that the float moves smoothly between F and E.
4. Measure the resistance between the terminals 1 and 2 of connector according to the value(s) in the table below.

   Standard resistance

   Float Level	Resistance (Ω)
   F	13.5 to 16.5
   Between E and F	13.5 to 414.5 (Gradually changes)
   E	405.5 to 414.5

NG → REPLACE FUEL SENDER GAUGE ASSEMBLY

OK: Go to next step

1. Replace the combination meter assembly to a new one or a normal one.

   OK

   The operation of the combination meter assembly returns to normal.

NG → REPLACE ECM

OK → END
