Rear Door: Components: Illustration

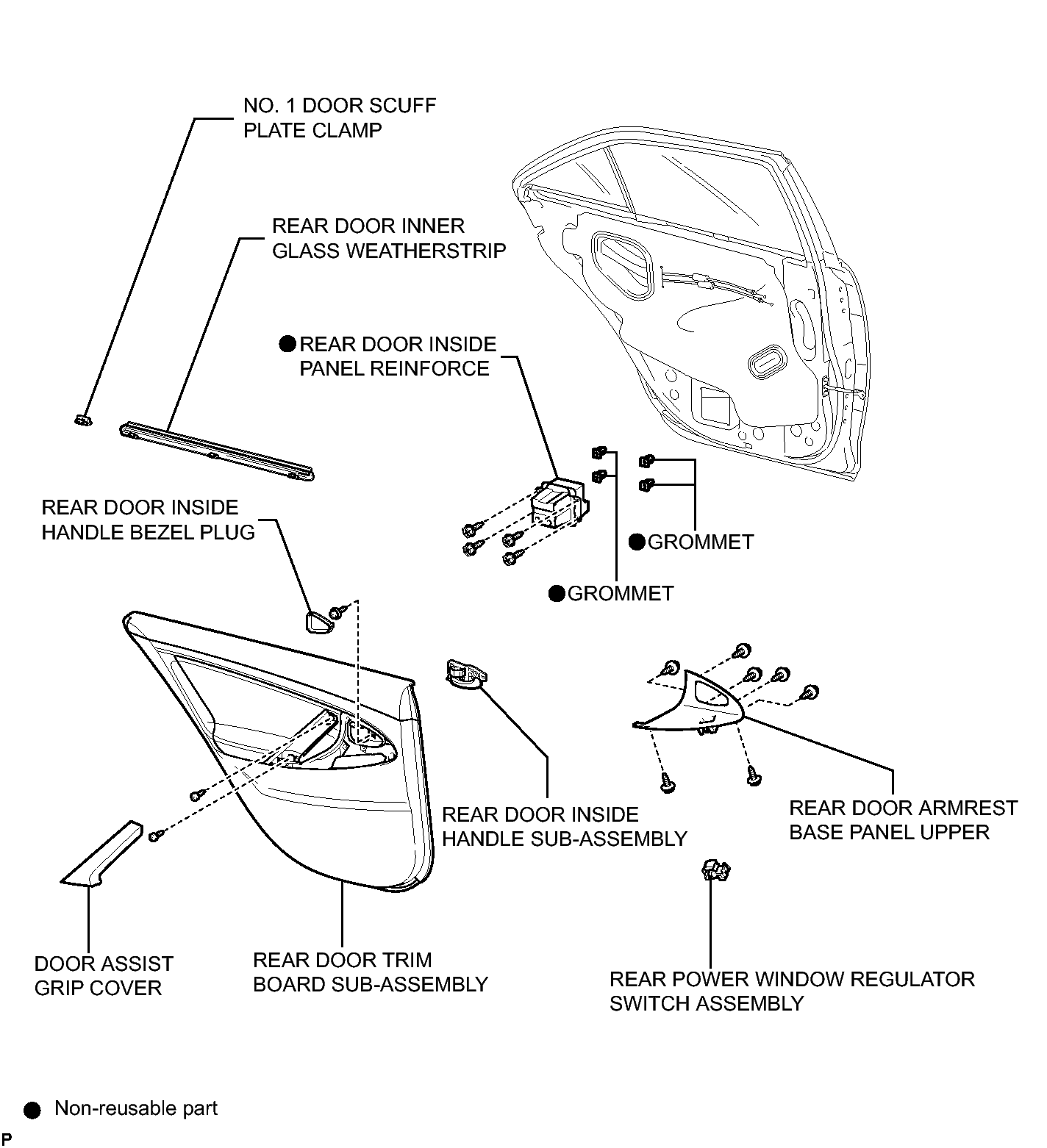

Fig 1: Identifying Rear Door Replacement Components (1 Of 3)
GTY190400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

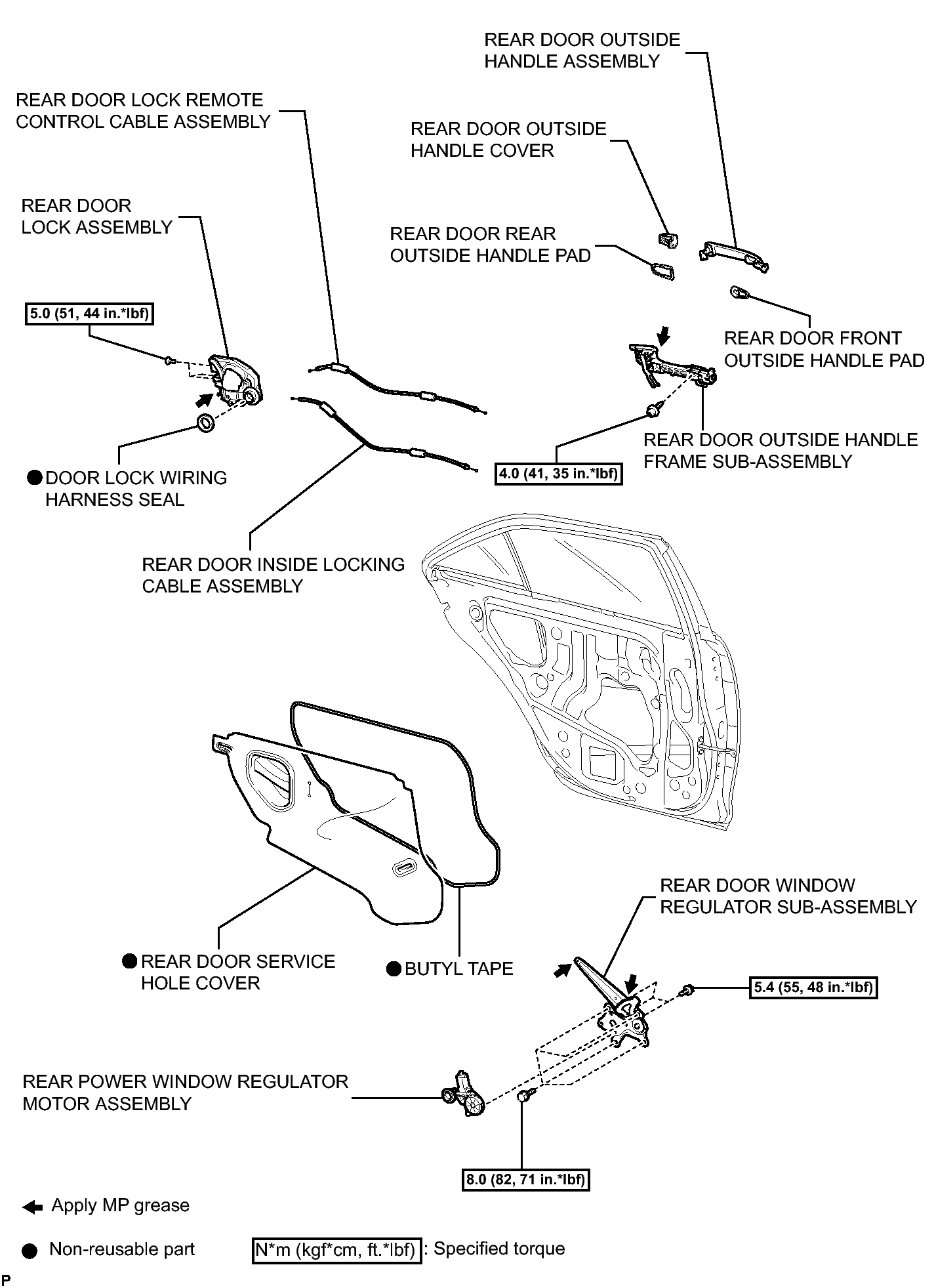

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (2 Of 3)
GTY197601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

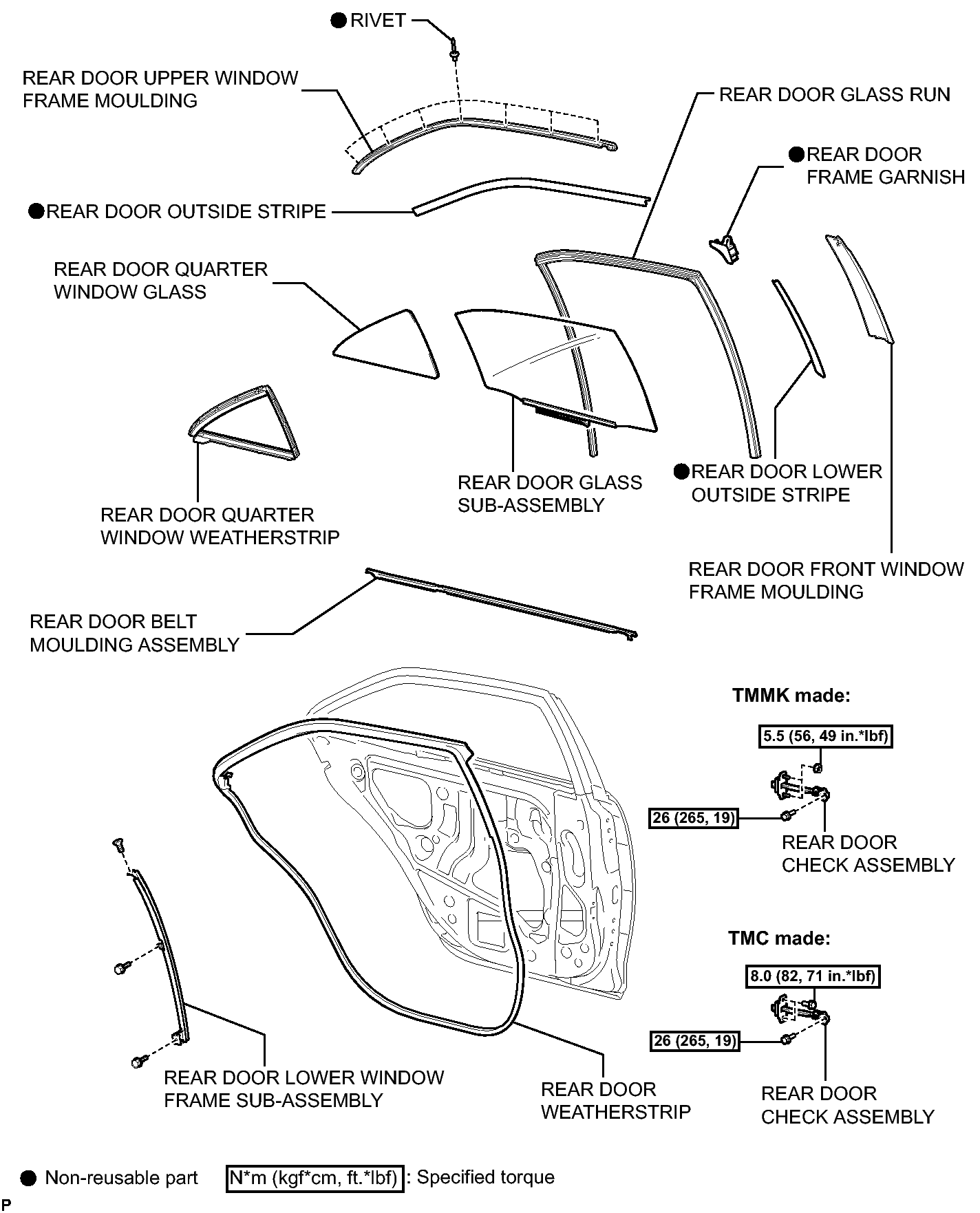

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (3 Of 3)
GTY168821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
