Luggage Compartment Door: Adjustment: Adjustment

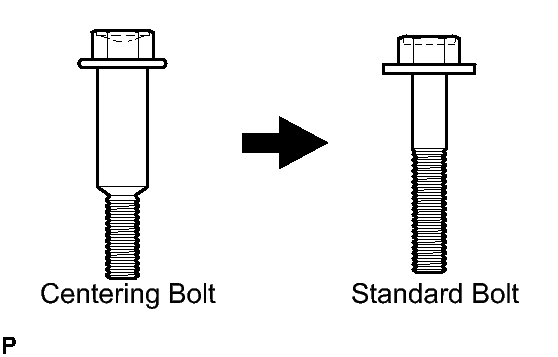

Fig 1: Identifying Centering Bolt And Standard Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Centering bolts are used to mount the door hinge to the door. The door cannot be adjusted with the centering bolts on. Substitute the centering bolts with standard bolts when making adjustments.
• A bolt without a torque specification is shown in the standard bolt chart. Refer to SPECIFIED TORQUE FOR STANDARD BOLTS .

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER  . Refer to REMOVAL - Step 1
2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
3. REMOVE SPARE WHEEL COVER CLAMP
4. REMOVE SPARE WHEEL COVER ASSEMBLY
5. REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY  See step  4
6. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for TMC Made)  See step  5
7. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (except TMC Made)  See step  6
8. REMOVE REAR FLOOR FINISH PLATE  See step  7
9. ADJUST LUGGAGE COMPARTMENT DOOR
   1. Loosen the door side hinge bolts to adjust the door horizontally and vertically.

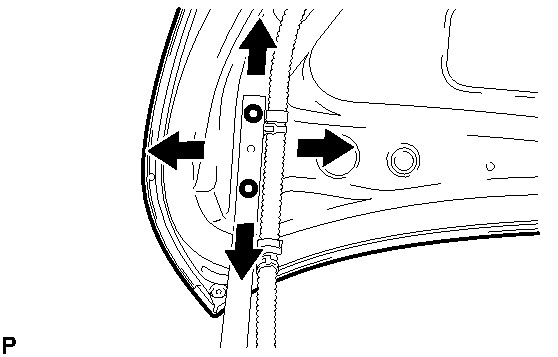

      Fig 1: Adjusting Luggage Compartment Door Hinge Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N*m (77 kgf*cm, 66 in.*lbf)

   2. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic hammer.

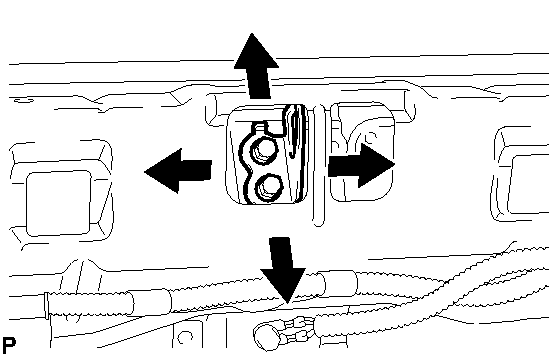

      Fig 2: Adjusting Striker Position

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Tighten the striker mounting screws after the adjustment.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

10. INSTALL REAR FLOOR FINISH PLATE  See step  6
11. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for TMC Made)  See step  7
12. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (except TMC Made)  See step  8
13. INSTALL LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY  See step  9
14. INSTALL SPARE WHEEL COVER ASSEMBLY
15. INSTALL SPARE WHEEL COVER CLAMP
16. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
17. INSTALL LUGGAGE COMPARTMENT DOOR COVER  . Refer to INSTALLATION - Step 6
