Hood Lock Control Cable Assembly: Components: Illustration

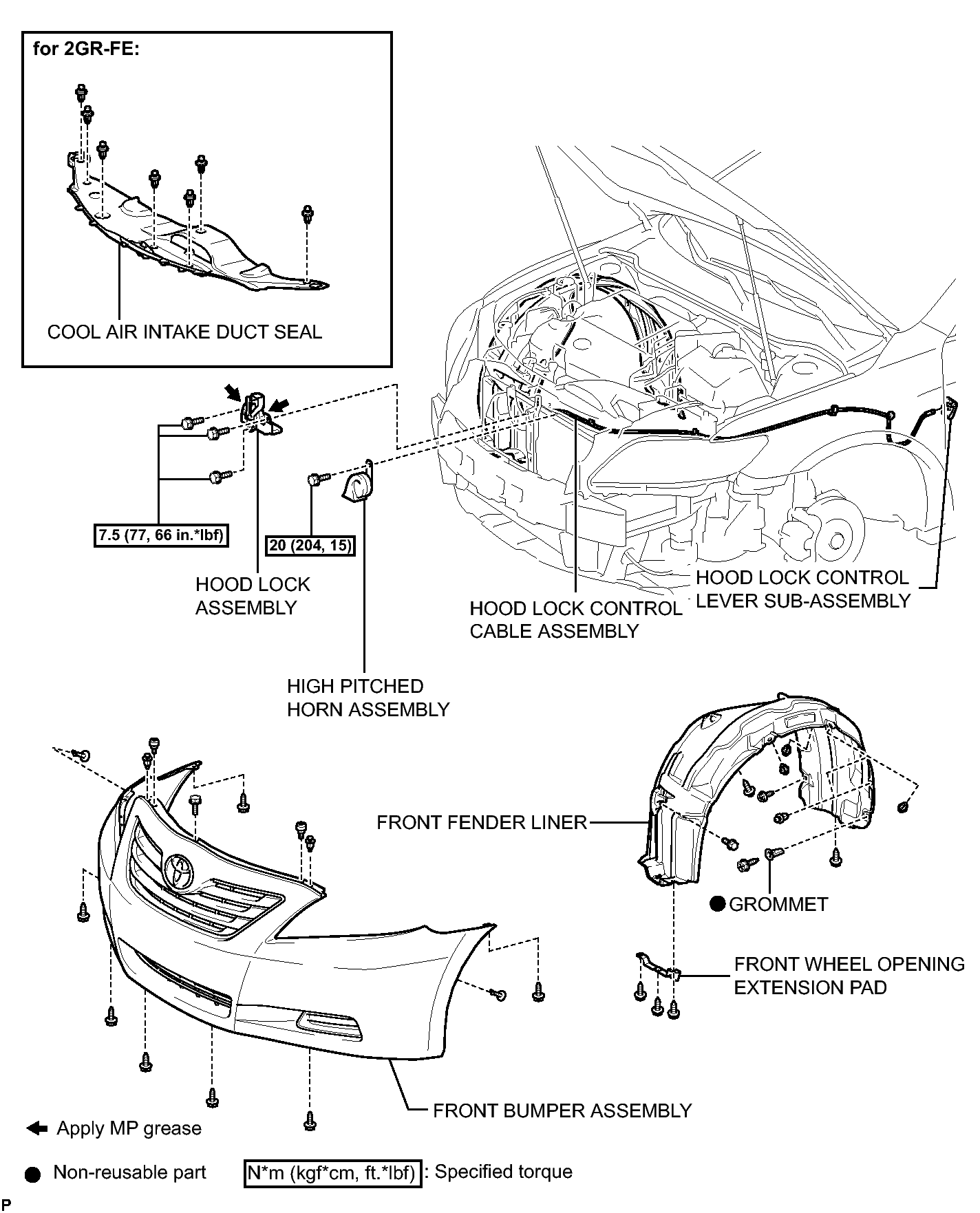

Fig 1: Identifying Hood Lock Control Cable Assembly Replacement Components With Torque Specifications
GTY180945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
