Front Door: Components: Illustration

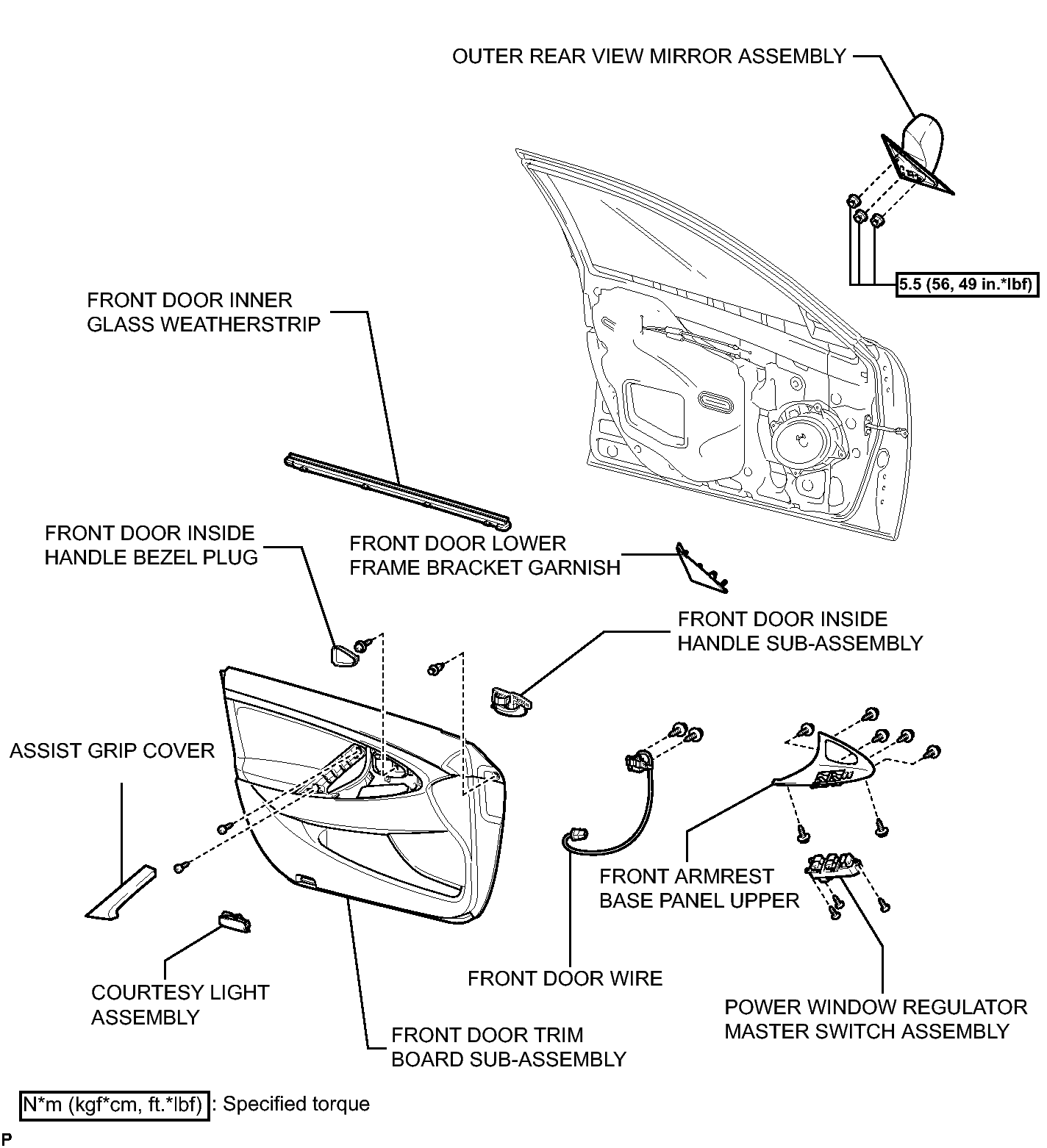

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (1 Of 3)
GTY178191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

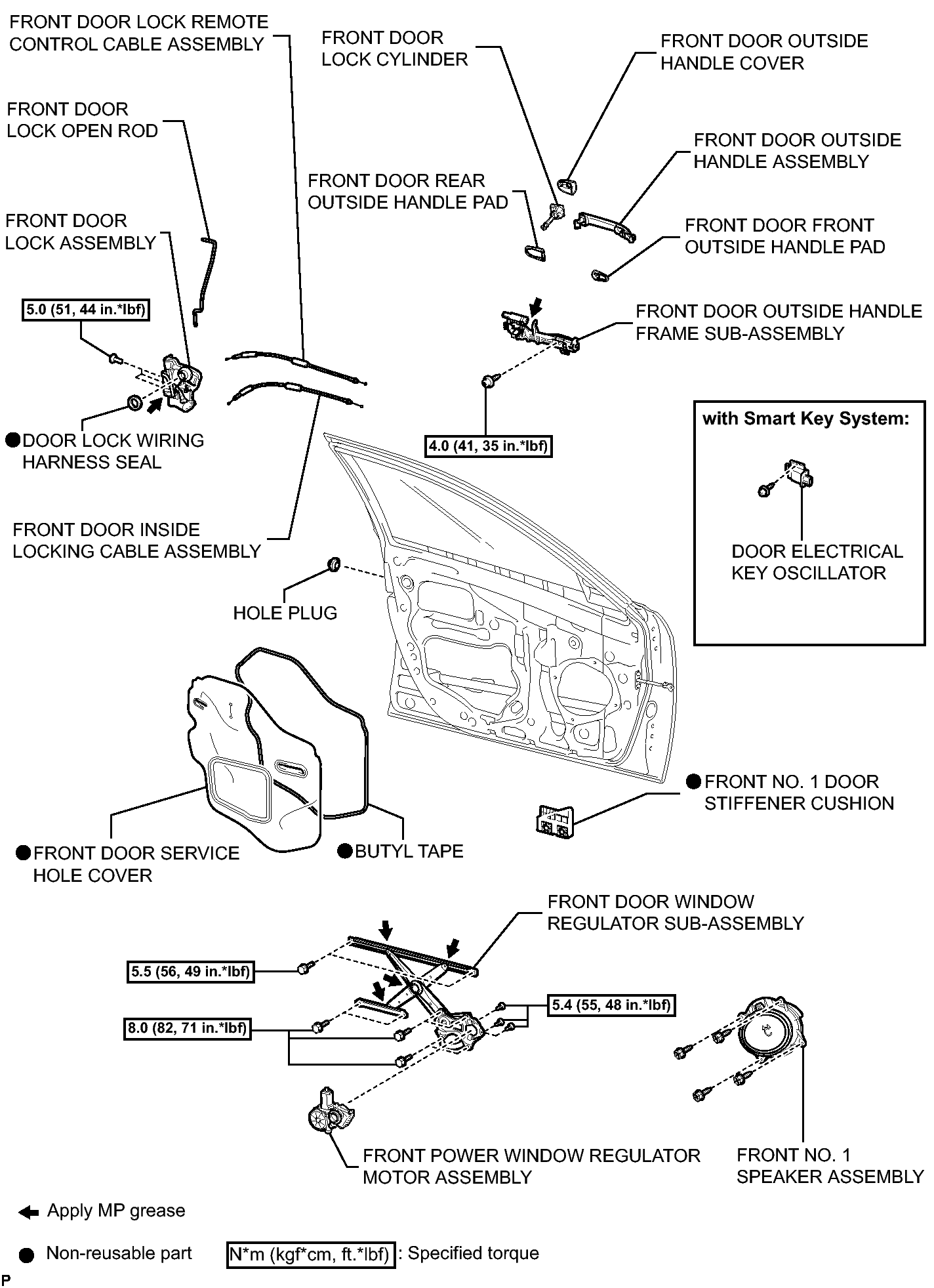

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (2 Of 3)
GTY189206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

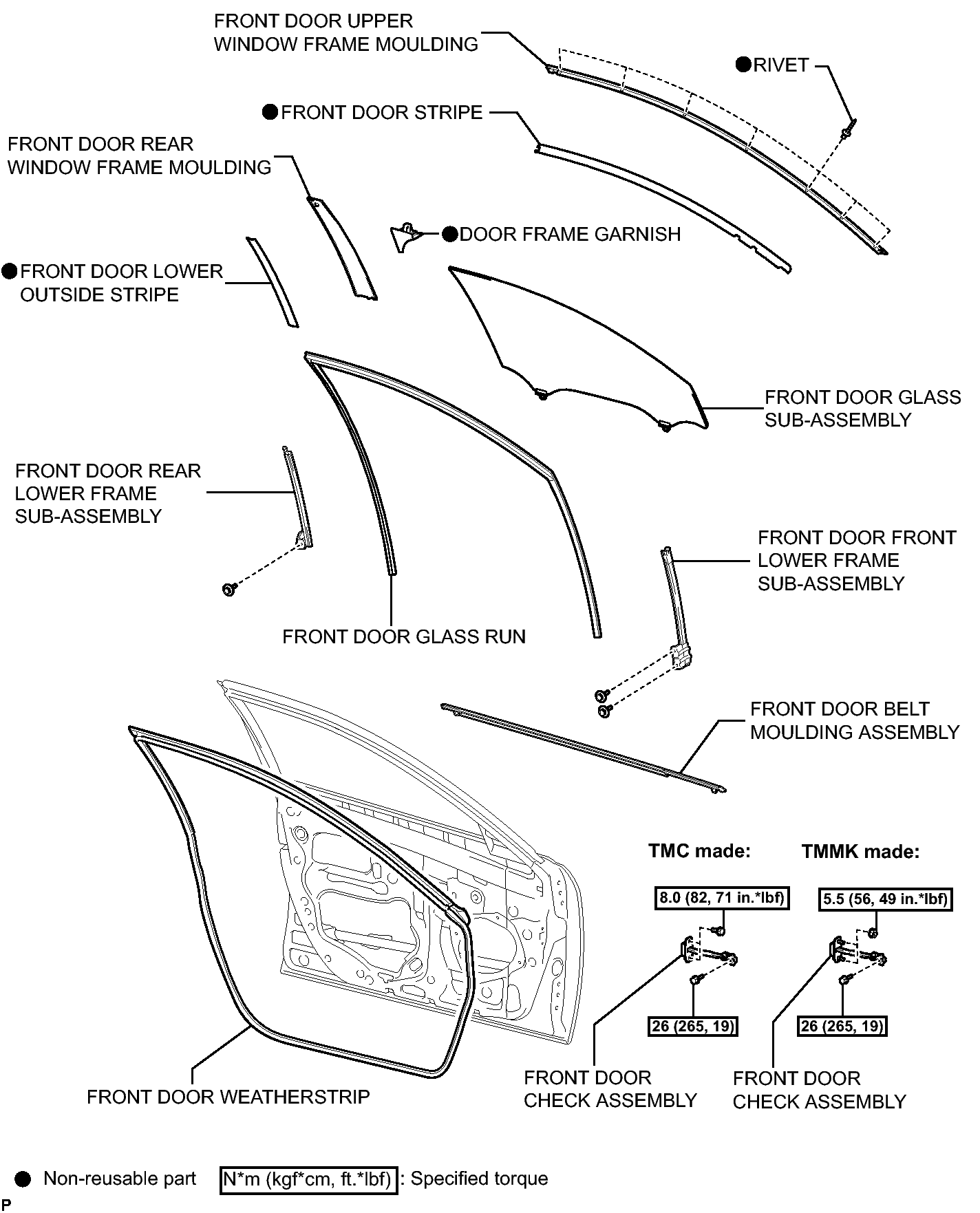

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (3 Of 3)
GTY173268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
