DOOR CONTROL TRANSMITTER (w/o Smart Key System): Components: Illustration

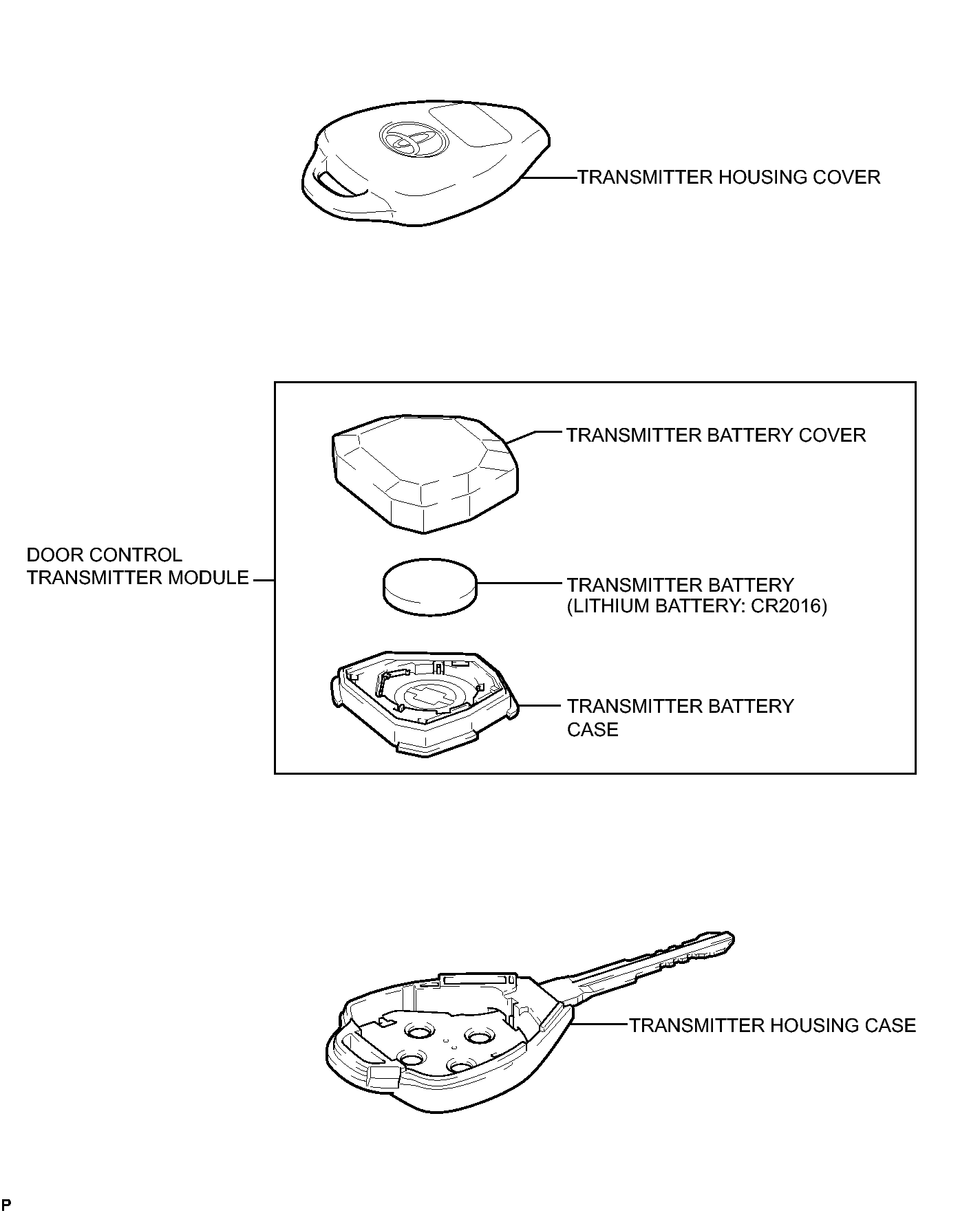

Fig 1: Identifying Door Control Transmitter (W/O Smart Key System) Replacement Components
GTY197521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
