Steering Pad Switch: Components: Illustration

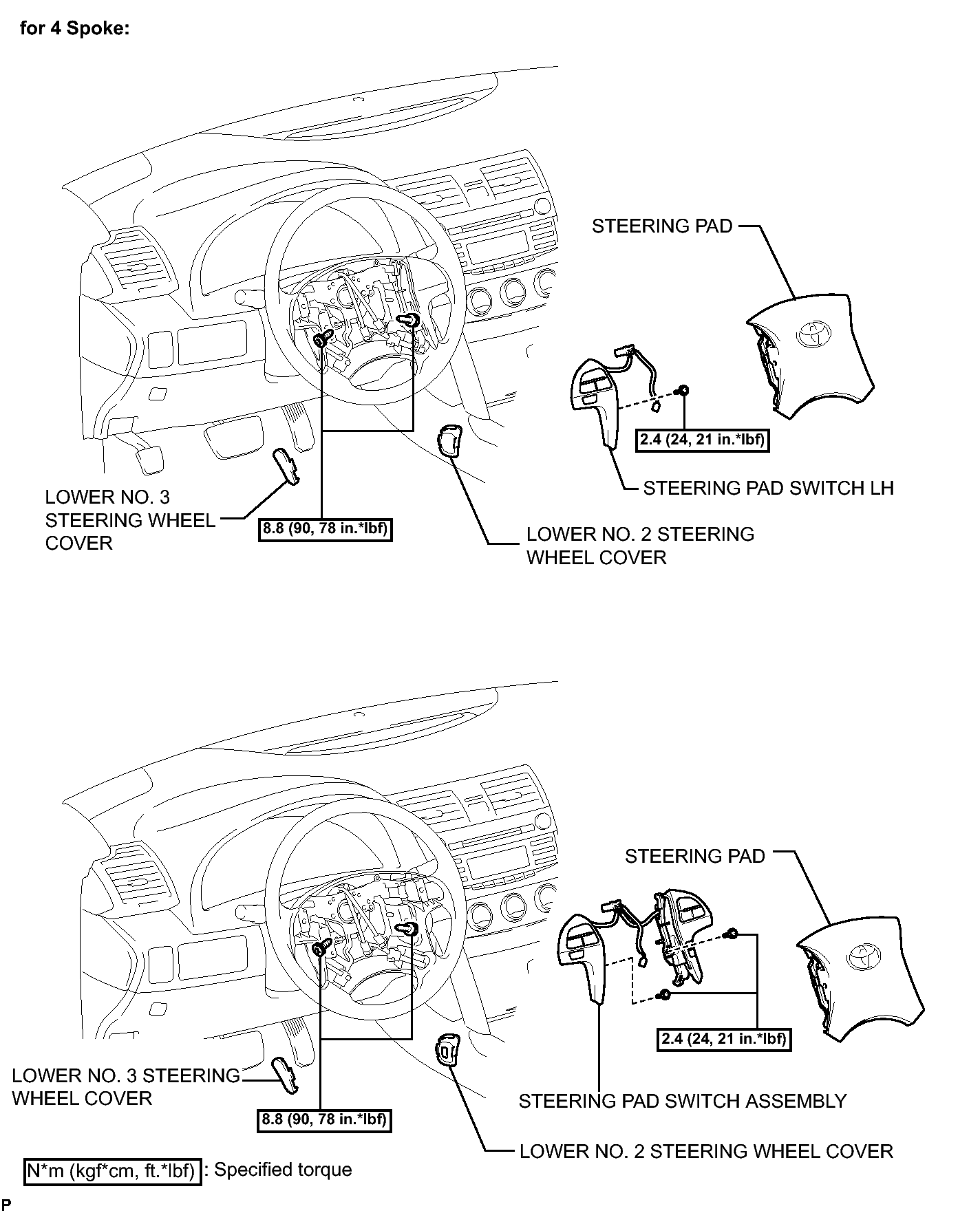

Fig 1: Identifying Steering Pad Switch Replacement Components With Torque Specifications - For 4 Spoke

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

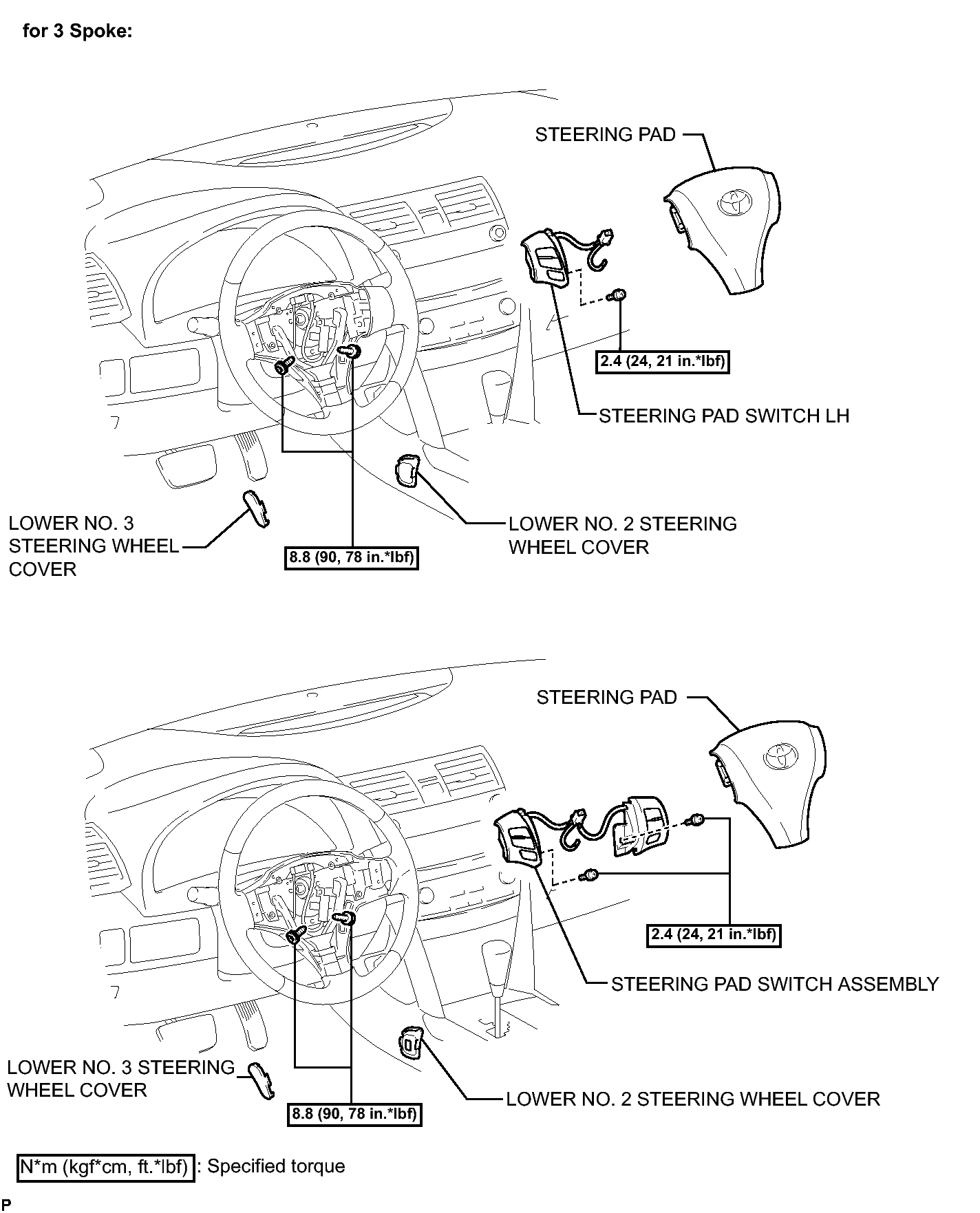

Fig 1: Identifying Steering Pad Switch Replacement Components With Torque Specifications - For 3 Spoke

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
