Combination Meter: Components: Illustration

Fig 1: Identifying Turn Signal Flasher Replacement Components With Torque Specification (1 Of 2)
GTY206898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

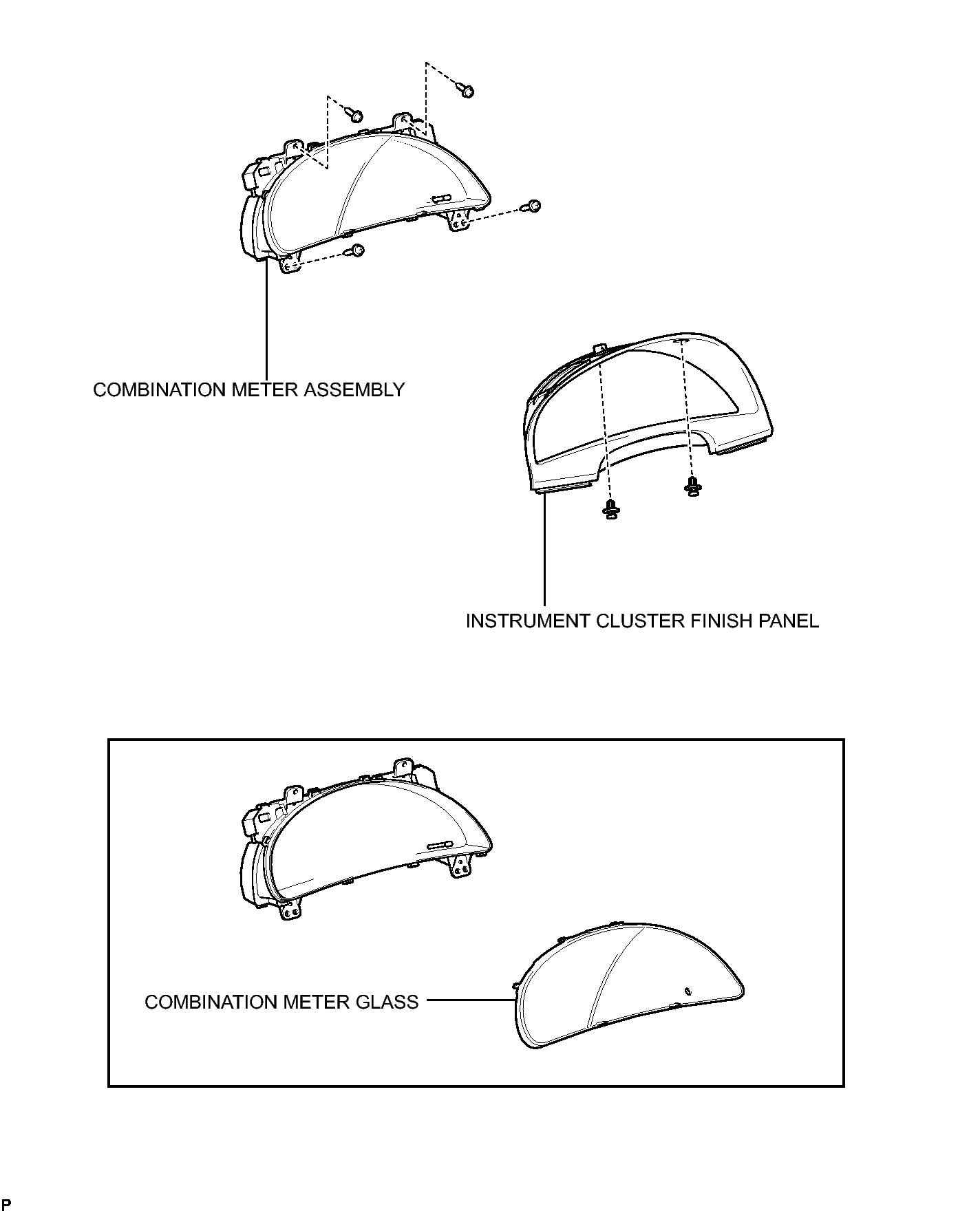

Fig 1: Identifying Combination Meter Replacement Components (2 Of 2)
GTY206899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
