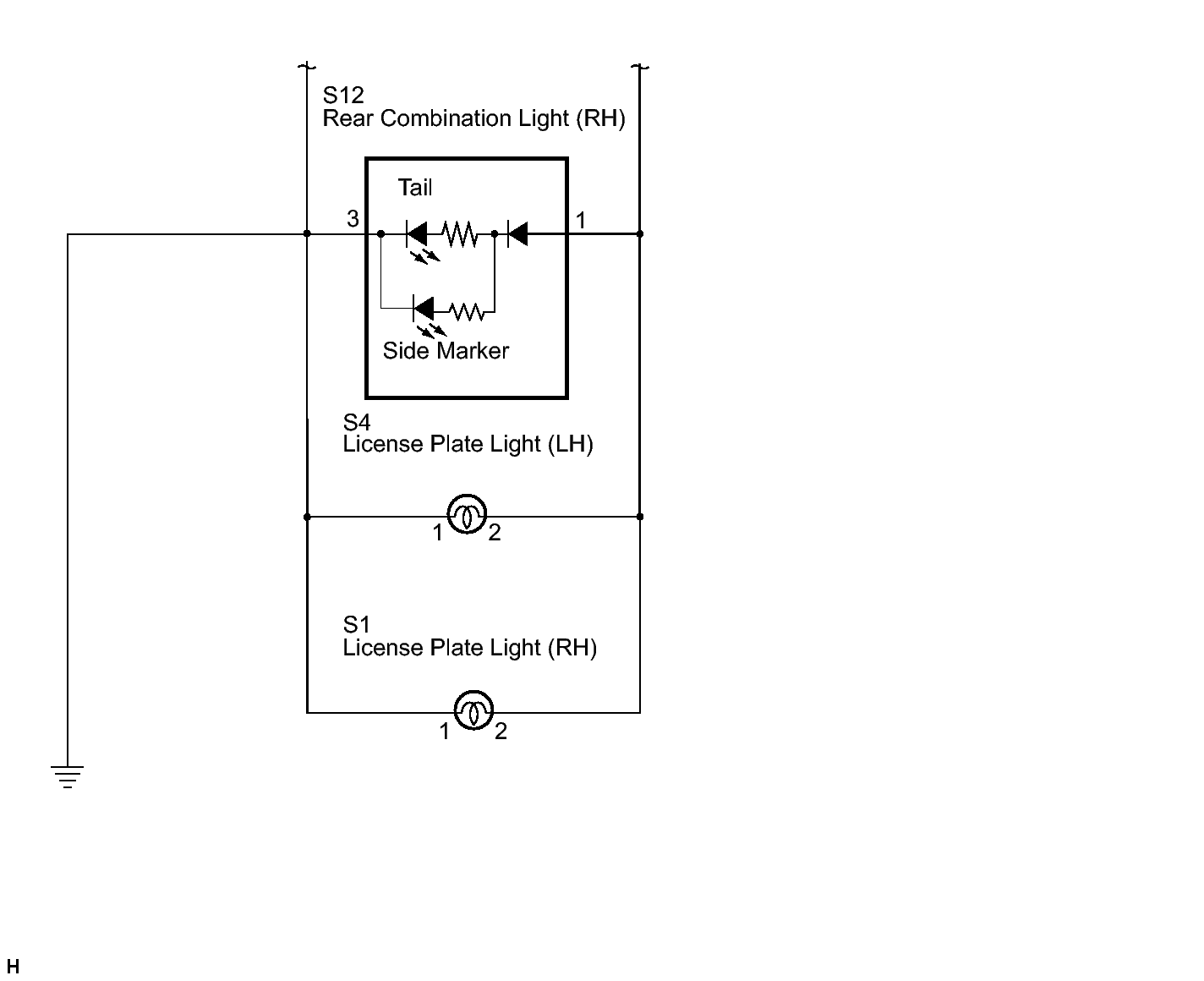

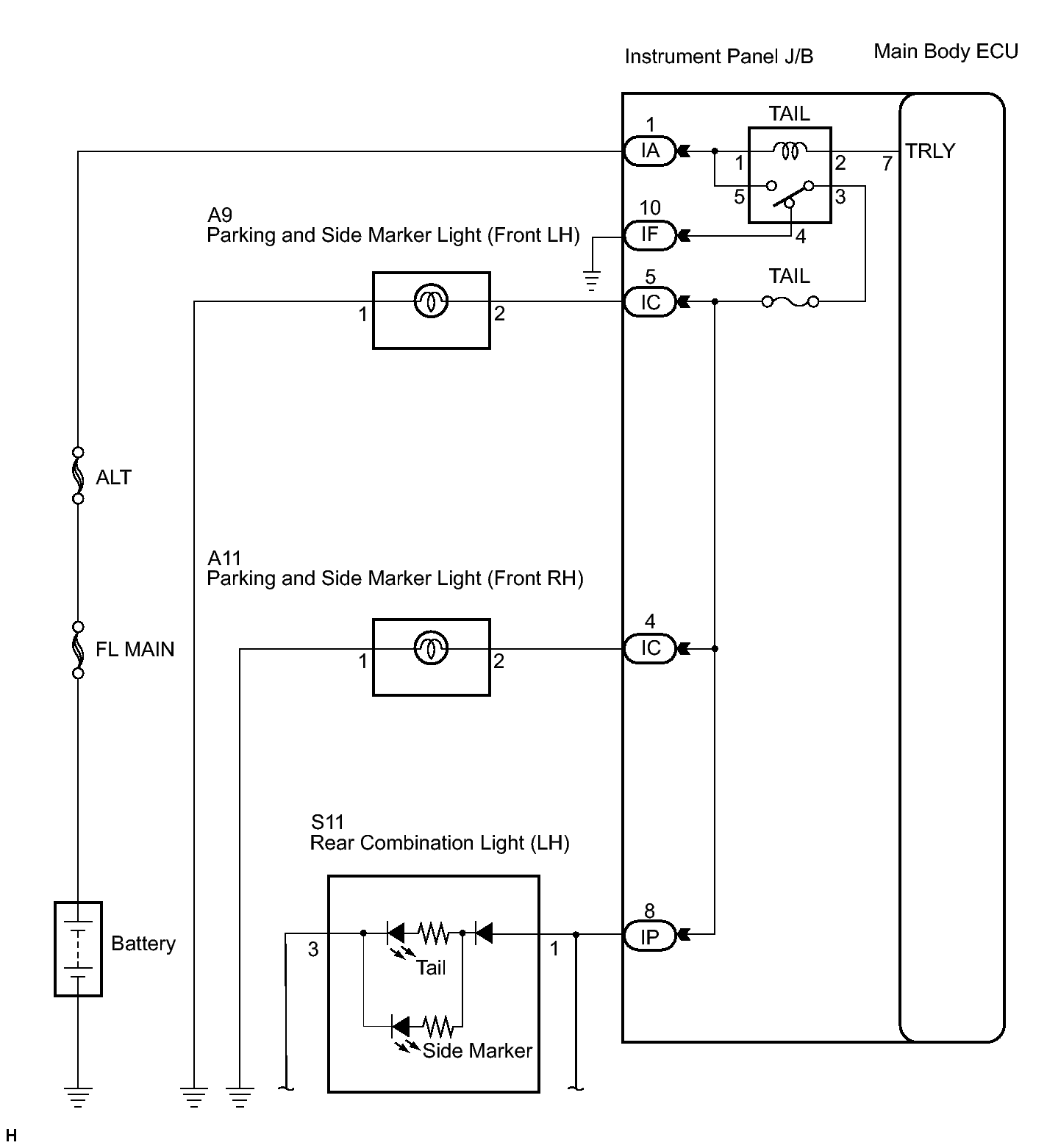

Home >> Toyota >> 2011 >> Camry Base, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting System (Diagnostic Codes & Circuit Tests) (Except Hybrid) >> Lighting System >> Taillight Relay Circuit >> Wiring Diagram
