Door LOCK Position Circuit: Wiring Diagram

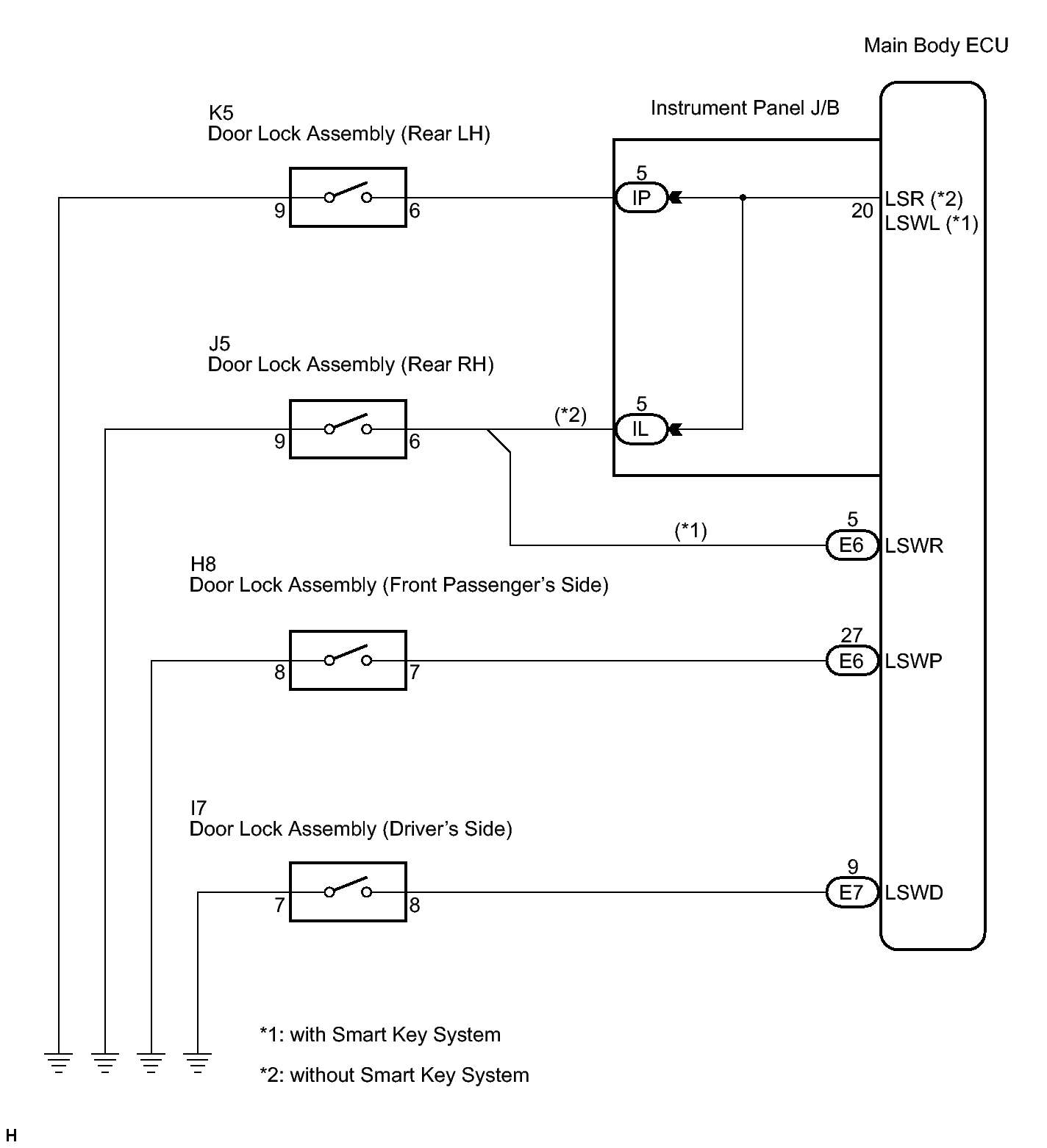

Fig 1: Door LOCK Position Circuit Wiring Diagram

GTY185173

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
