Door Courtesy Switch Circuit: Wiring Diagram

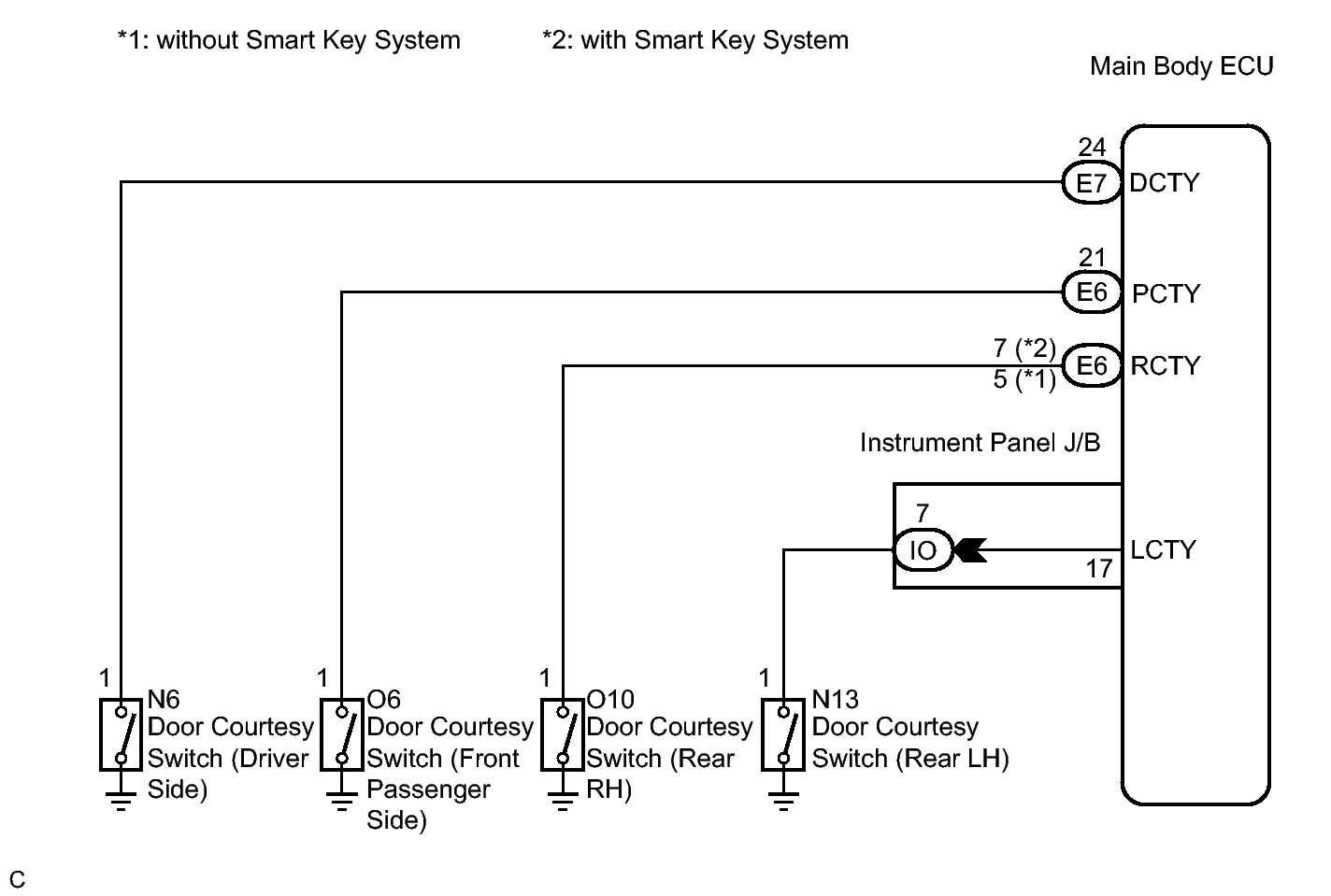

Fig 1: Door Courtesy Switch - Wiring Diagram

GTY196017

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
