DTC B1244: Light Sensor Circuit Malfunction: Wiring Diagram

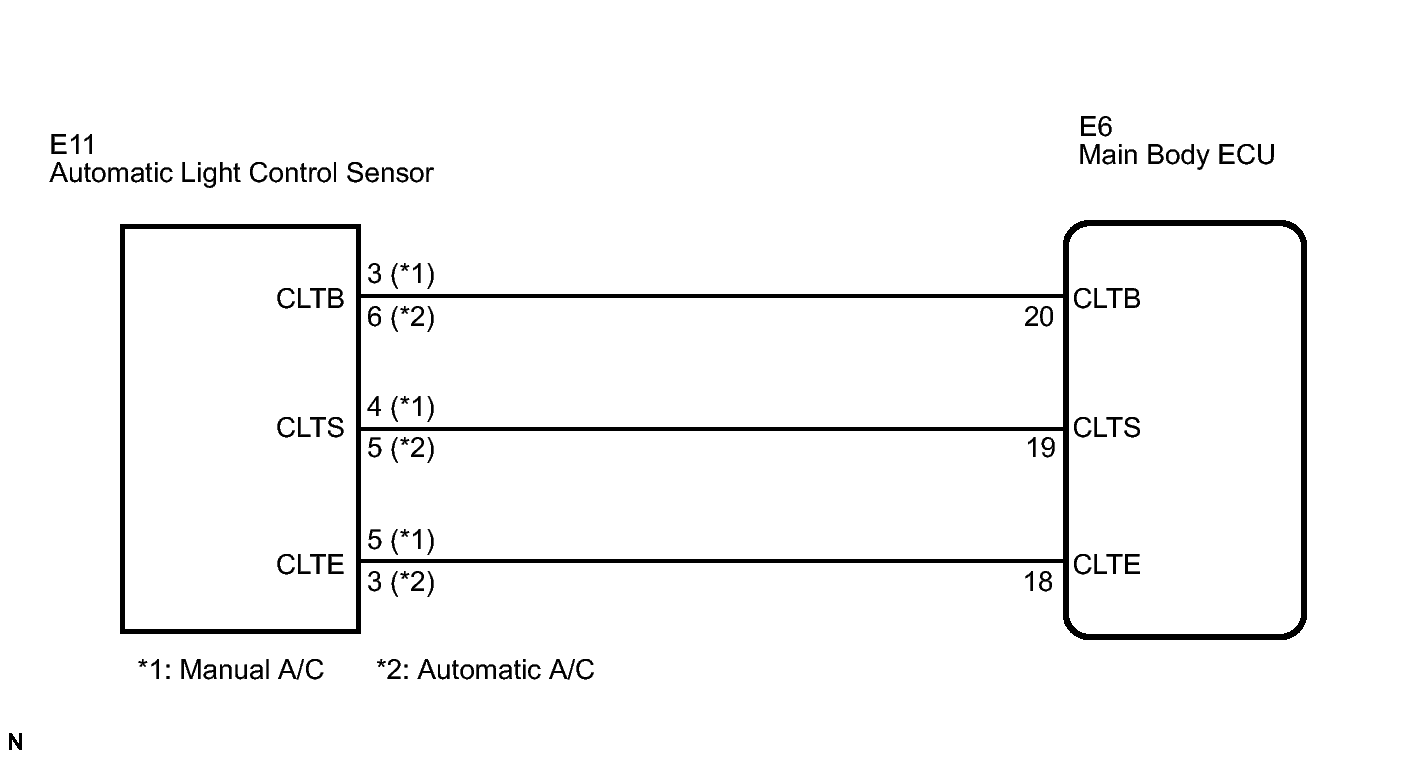

Fig 1: Automatic Light Control Sensor Wiring Diagram
GTY171961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
