Tire Pressure Warning Valve And Transmitter: Components: Illustration

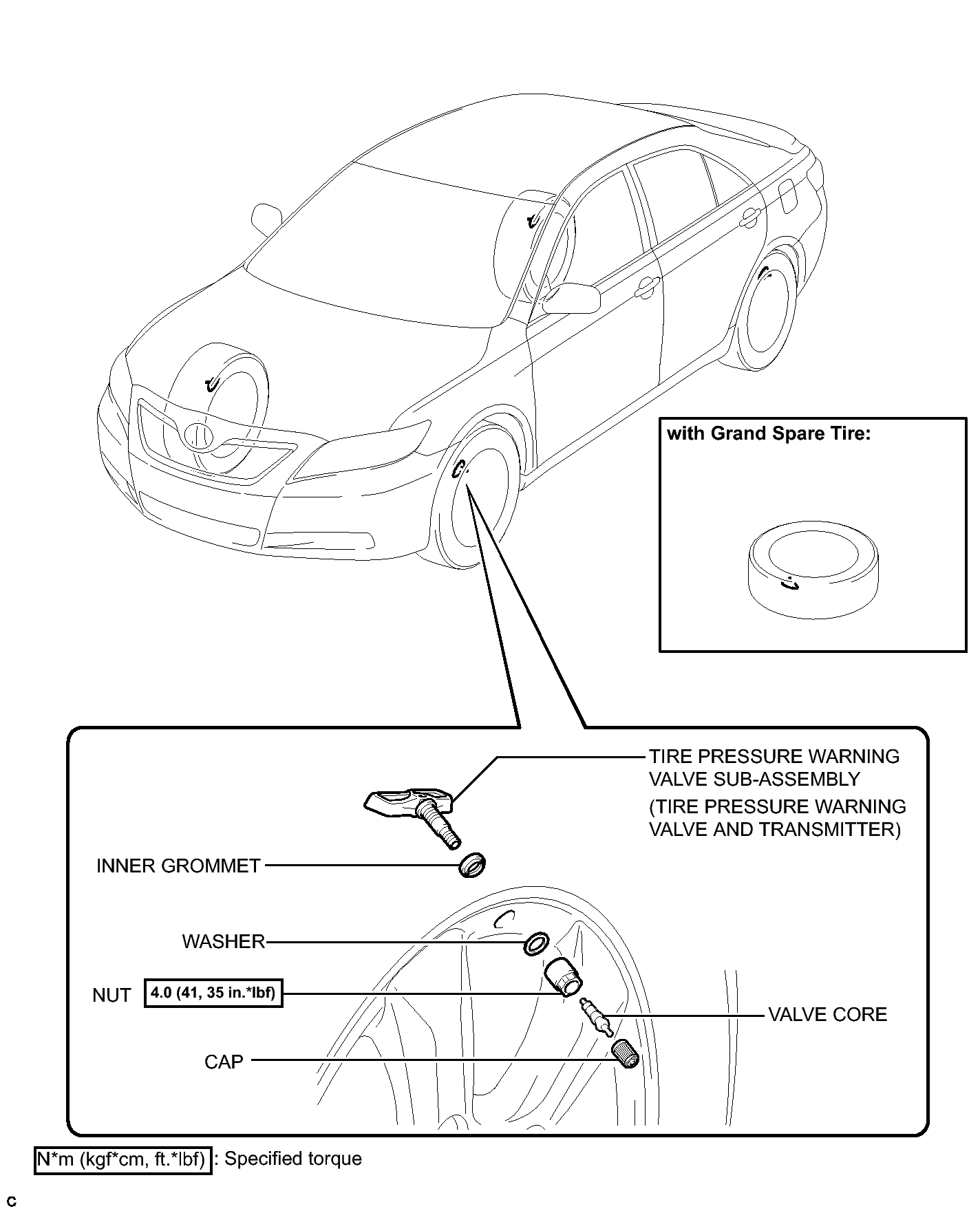

Fig 1: Tire Pressure Warning Valve And Transmitter Replacement Components With Torque Specifications
GTY201839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
