TIRE PRESSURE WARNING RECEIVER (w/ Antenna): Installation: Installation

INSTALL TIRE PRESSURE WARNING RECEIVER ASSEMBLY
1. Connect the connector to the tire pressure warning receiver assembly.

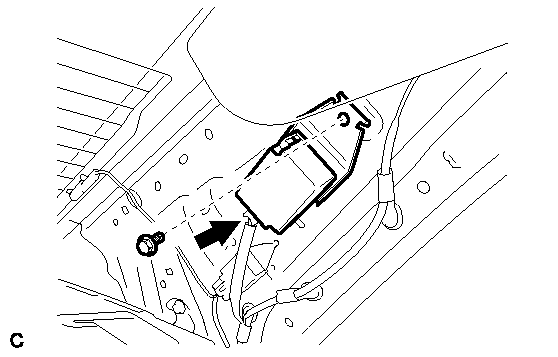

  Fig 1: Locating Tire Pressure Warning Receiver Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the tire pressure warning receiver assembly with the bolt
  Torque: 7.5 N*m (77 kgf*cm, 66 in.*lbf)
INSTALL INNER ROOF SIDE GARNISH LH . Refer to INSTALLATION - Step 32
INSTALL REAR SEATBACK ASSEMBLY (for Fixed Seat Type) . Refer to INSTALLATION - Step 1
INSTALL REAR CENTER SEAT HEADREST ASSEMBLY (for Fixed Seat Type)
INSTALL REAR SEAT HEADREST ASSEMBLY (for Fixed Seat Type)
INSTALL REAR SEAT CUSHION ASSEMBLY (for Fixed Seat Type) . Refer to INSTALLATION - Step 4
INSTALL REAR SIDE SEATBACK ASSEMBLY LH (for Fold Down Seat Type) . Refer to INSTALLATION - Step 1
INSTALL REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type) . Refer to INSTALLATION - Step 7
INSTALL REAR SEATBACK ASSEMBLY LH (for Reclining Seat Type) . Refer to INSTALLATION - Step 3
INSTALL REAR SEATBACK COVER (for Reclining Seat Type)
INSTALL REAR SEAT HEADREST ASSEMBLY (for Reclining Seat Type)
INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Reclining Seat Type) . Refer to INSTALLATION - Step 7
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT TIRE PRESSURE WARNING SYSTEM
HINT:

Refer to TEST MODE PROCEDURE
