TIRE PRESSURE WARNING RECEIVER (w/ Antenna): Components: Illustration

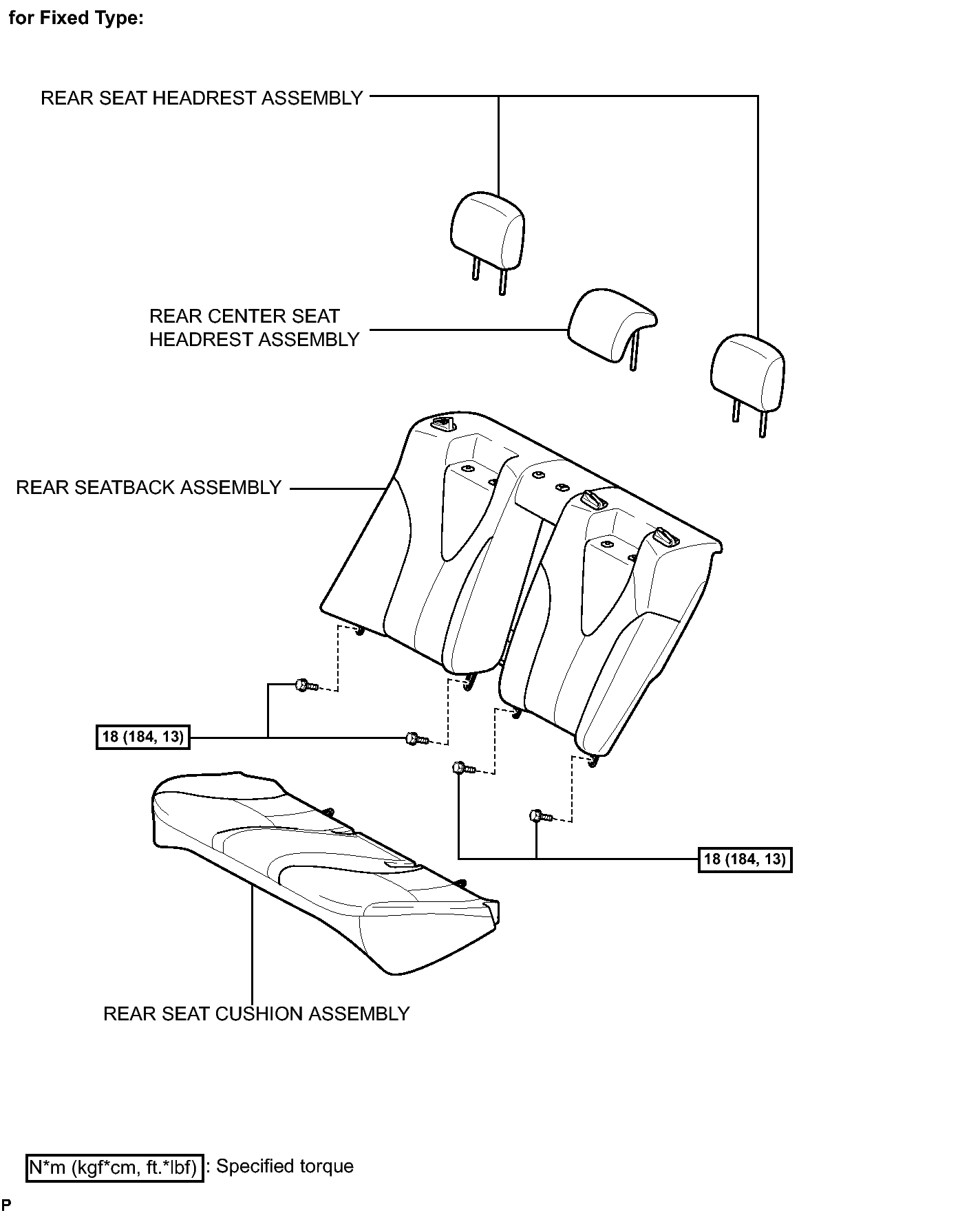

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications - Fixed Type (1 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

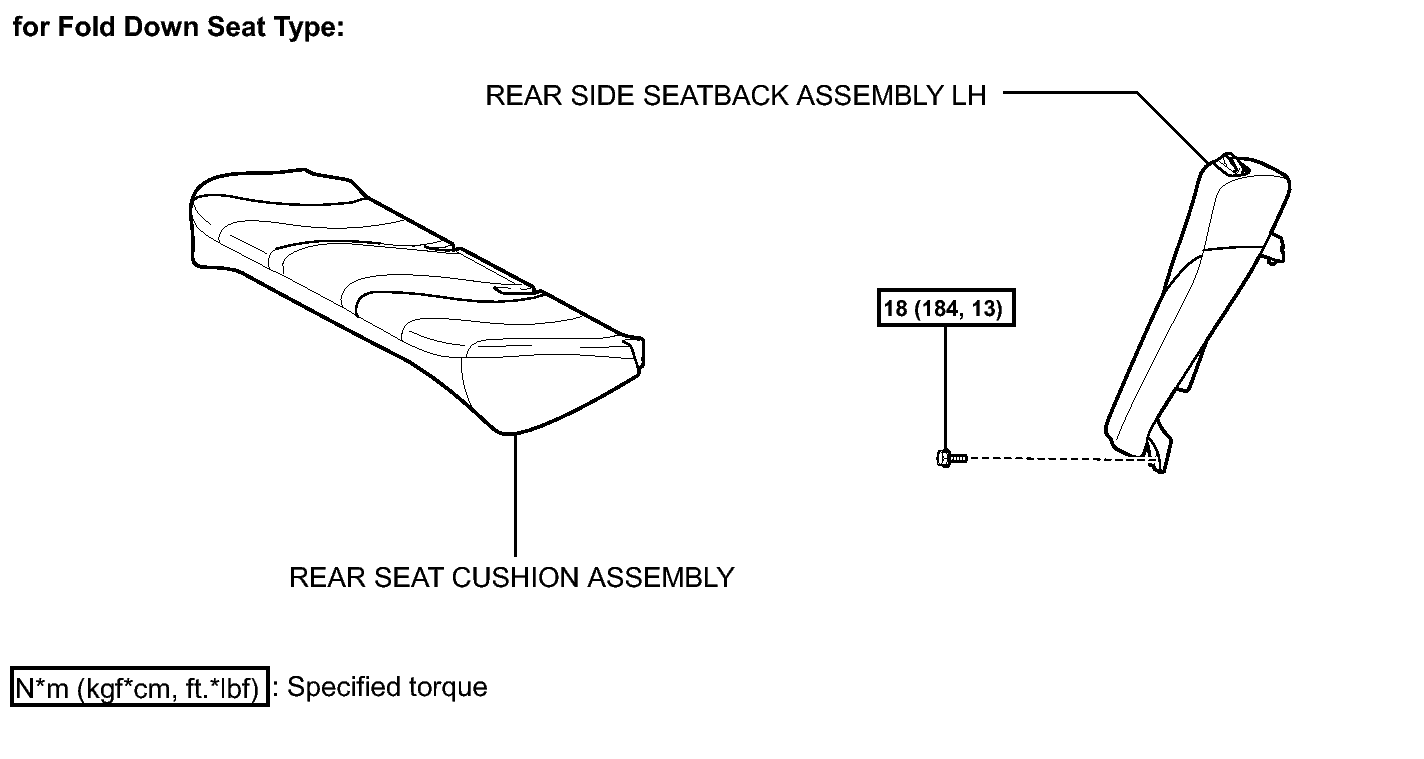

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications - Fold Down Seat Type (2 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

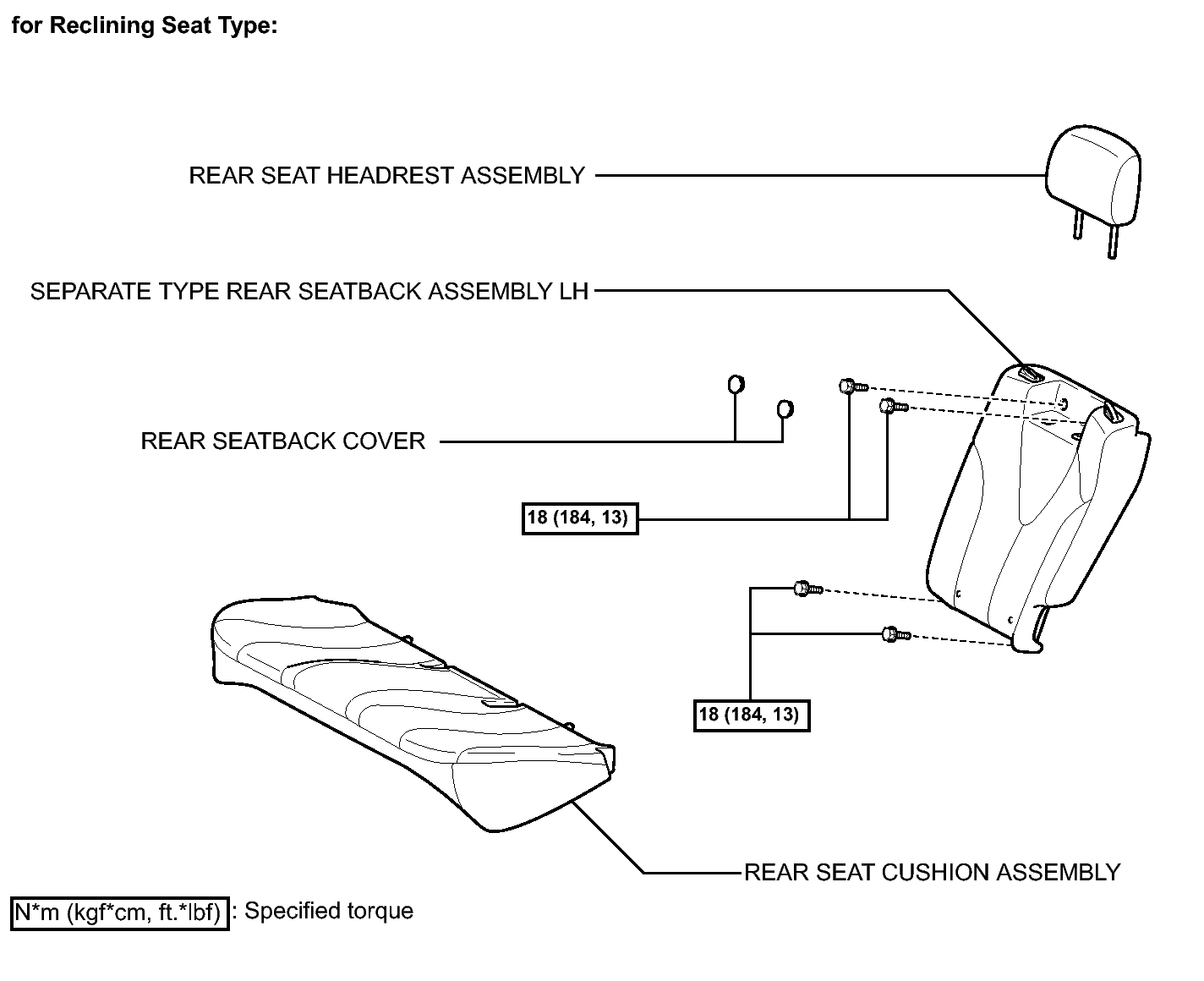

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications - Reclining Seat Type (3 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

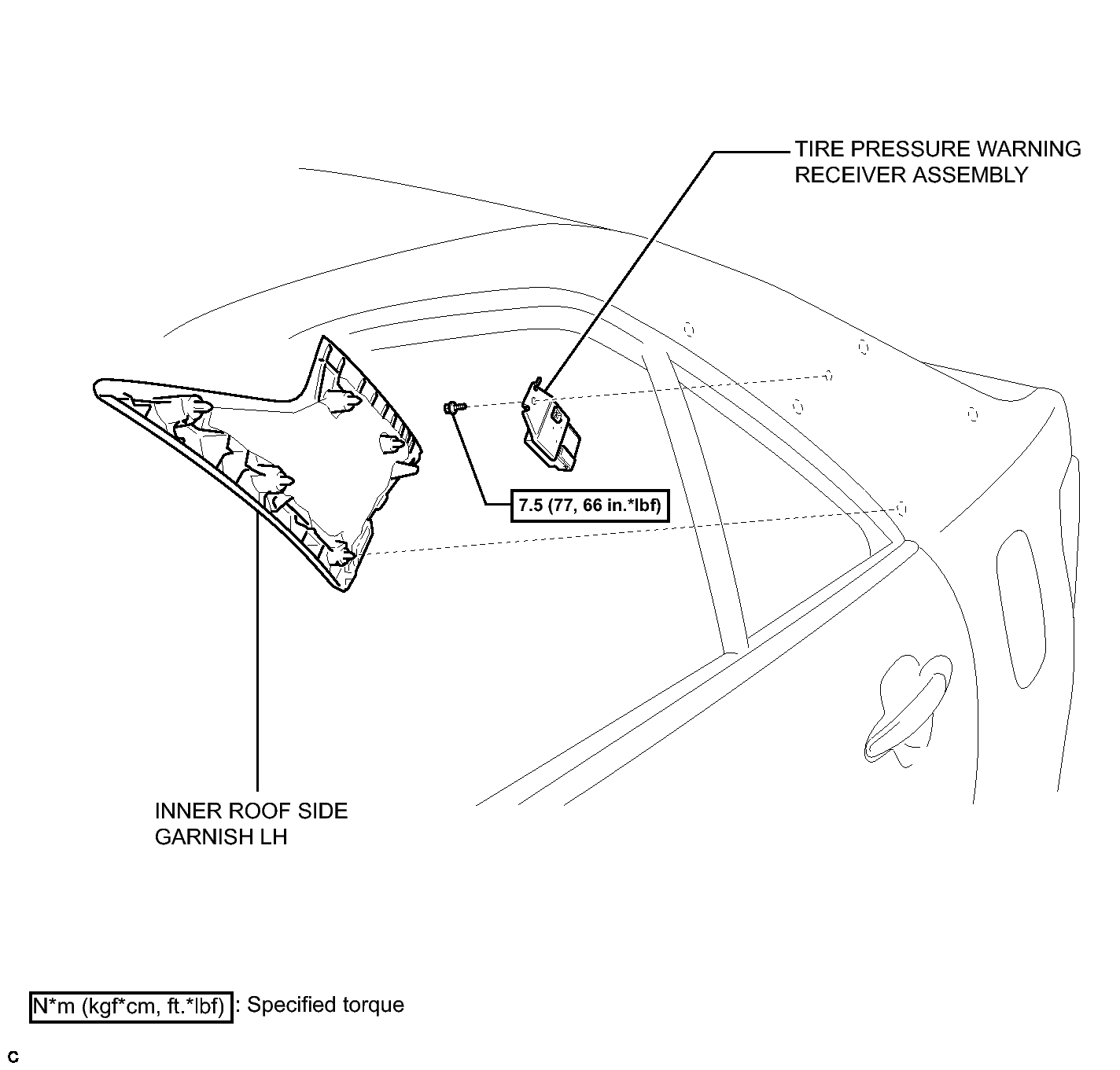

Fig 1: Tire Pressure Warning Receiver Assembly With Torque Specification (4 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
