DTC P0AAE-123: Hybrid Battery Pack Air Temperature Sensor "A" Circuit Low; DTC P0AAF-123: Hybrid Battery Pack Air Temperature Sensor "A" Circuit High: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

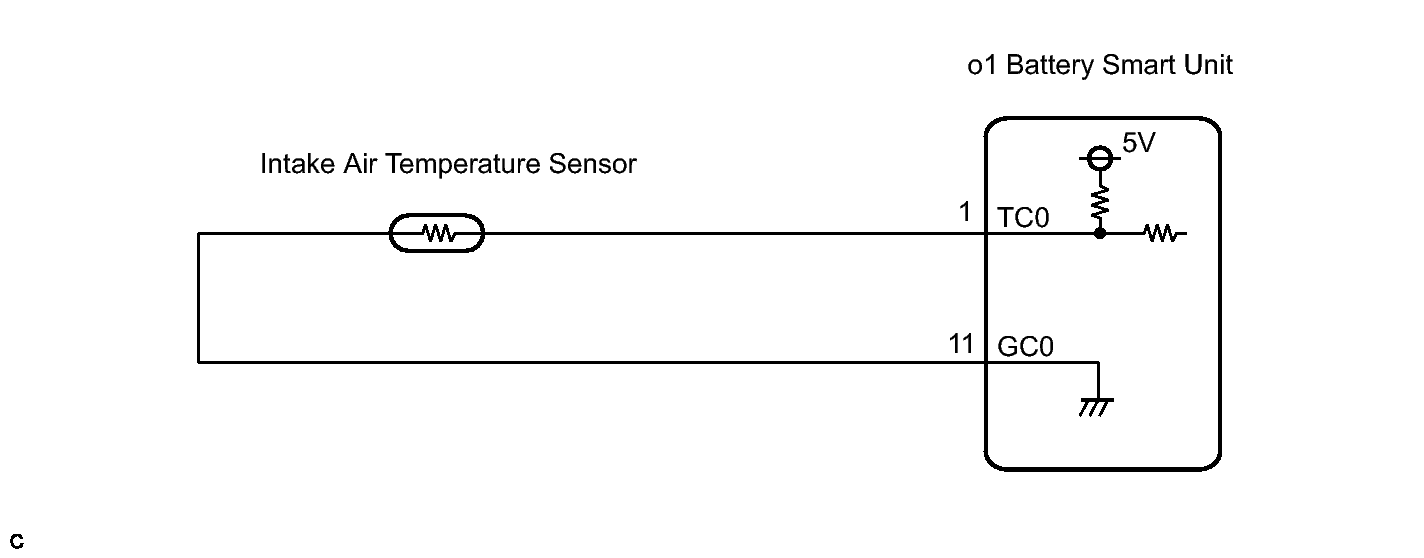

Fig 1: Identifying Hybrid Battery Pack Air Temperature Sensor A - Wiring Diagram
GTY192825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
