DTC P0989: Transmission Fluid Pressure Sensor / Switch "E" Circuit Low; DTC P0990: Transmission Fluid Pressure Sensor / Switch "E" Circuit High: Procedure

WARNING: This page is about a different car, the 2013 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC P0989 OR P0990)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / ECT / Trouble Codes.
    5. Read the DTCs using the Techstream.

      Result

      Display (DTC Output) Proceed to
      Only "P0990" is output A
      Only "P0989" is output B
      "P0989 or P0990" and other DTCs are output C

      HINT:

      If a solenoid is stuck OFF, DTCs for several solenoids including the malfunctioning solenoid will be detected.

    B → See step   4

    C → See step   7

    A: Go to next step

  2. CHECK TRANSMISSION WIRE (SHORT TO GROUND)
    1. Remove the TCM.

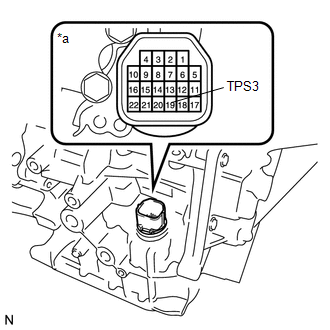

      Fig 1: Checking Transmission Wire (Short)
      GTY317008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      19 (TPS3) - Body ground (Valve body assembly) and other terminals Always 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Transmission Wire)

    NG → See step   3

    OK → See step   9

  3. CHECK ATF TEMPERATURE SENSOR ASSEMBLY (ATF PRESSURE SWITCH NO. 3)
    1. Remove the oil strainer assembly.
    2. Disconnect the connector from the ATF temperature sensor assembly.
      Fig 2: Checking ATF Temperature Sensor Assembly (ATF Pressure Switch No. 3)
      GTY111440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (TPS3) - Body ground (Valve body assembly) and other terminals Always 10 kΩ or higher

    NG → See step   10

    OK → See step   8

  4. CHECK TRANSMISSION WIRE
    1. Remove the oil strainer assembly.
    2. Remove the TCM.
      Fig 3: Checking Transmission Wire Resistance
      GTY317055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector from the ATF temperature sensor assembly.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      19 (TPS3) TCM side - 1 (TPS3) sensor side Always Below 1 Ω
      1 (TPS3) sensor side - Body ground (Valve body assembly) and other terminals Always 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Transmission Wire))
      *b TCM Side
      *c ATF Temperature Sensor Side

    NG → See step   8

    OK: Go to next step

  5. REPLACE ATF TEMPERATURE SENSOR ASSEMBLY

    Refer to COMPONENTS

    NEXT: Go to next step

  6. CHECK IF DTC OUTPUT RECURS
    1. Connect the Techstream to the DLC3.
    2. Start the engine and turn the Techstream on.
    3. Clear the DTCs. Refer to DTC CHECK / CLEAR .

      HINT:

      Write down the currently output DTCs before clearing them.

    4. Perform the monitor drive pattern. Refer to MONITOR DRIVE PATTERN .
    5. Enter the following menus: Powertrain / ECT / Trouble Codes.
    6. Read the DTCs using the Techstream.

      Result

      Display (DTC Output) Proceed to
      Only "P0989" is output A
      No output B

    B → END

    A → See step   9

  7. GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART
  8. REPLACE TRANSMISSION WIRE. Refer to  COMPONENTS
  9. REPLACE TCM. Refer to  COMPONENTS
  10. REPLACE ATF TEMPERATURE SENSOR ASSEMBLY. Refer to  COMPONENTS
