DTC P0712: Transmission Fluid Temperature Sensor "A" Circuit Low Input; DTC P0713: Transmission Fluid Temperature Sensor "A" Circuit High Input: Procedure

WARNING: This page is about a different car, the 2013 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT TRANSMISSION WIRE (ATF TEMPERATURE SENSOR)
    1. Remove the TCM from the transaxle.

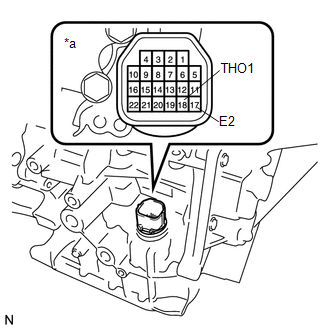

      Fig 1: Checking Resistance Of Transmission Wire (ATF Temperature Sensor)
      GTY317010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      17 (E2) - 18 (THO1) Always 79 Ω to 156 kΩ
      17 (E2) - Body ground and other terminals Always 10 kΩ or higher
      18 (THO1) - Body ground and other terminals Always 10 kΩ or higher

      HINT:

      If the resistance is out of the specified range with the ATF temperature shown in the table below, the driveability of the vehicle may decrease.

      ATF Temperature Specified Condition
      10°C (50°F) 5 to 8 kΩ
      25°C (77°F) 2.5 to 4.5 kΩ
      110°C (230°F) 0.22 to 0.28 kΩ
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Transmission Wire)

    NG → See step   2

    OK → See step   4

  2. INSPECT ATF TEMPERATURE SENSOR
    1. Disconnect the ATF temperature sensor connector from the transmission wire.

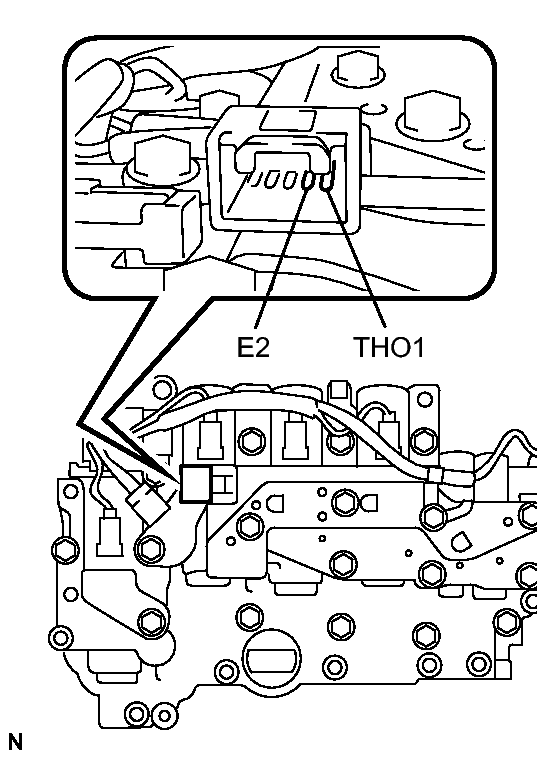

      Fig 2: Identifying Terminal E2 And THO1 Of ATF Temperature Sensor
      GTY248937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E2 - THO1 Always 79 Ω to 156 kΩ
      E2 - Body ground and other terminals Always 10 kΩ or higher
      THO1 - Body ground and other terminals Always 10 kΩ or higher

      HINT:

      If the resistance is out of the specified range with the ATF temperature shown in the table below, the driveability of the vehicle may decrease.

      ATF Temperature Specified Condition
      10°C (50°F) 5 to 8 kΩ
      25°C (77°F) 2.5 to 4.5 kΩ
      110°C (230°F) 0.22 to 0.28 kΩ

    NG → See step   5

    OK → See step   3

  3. REPLACE TRANSMISSION WIRE. Refer to  COMPONENTS
  4. REPLACE TCM. Refer to  COMPONENTS
  5. REPLACE ATF TEMPERATURE SENSOR ASSEMBLY. Refer to  COMPONENTS
