Transmission Control Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2013 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

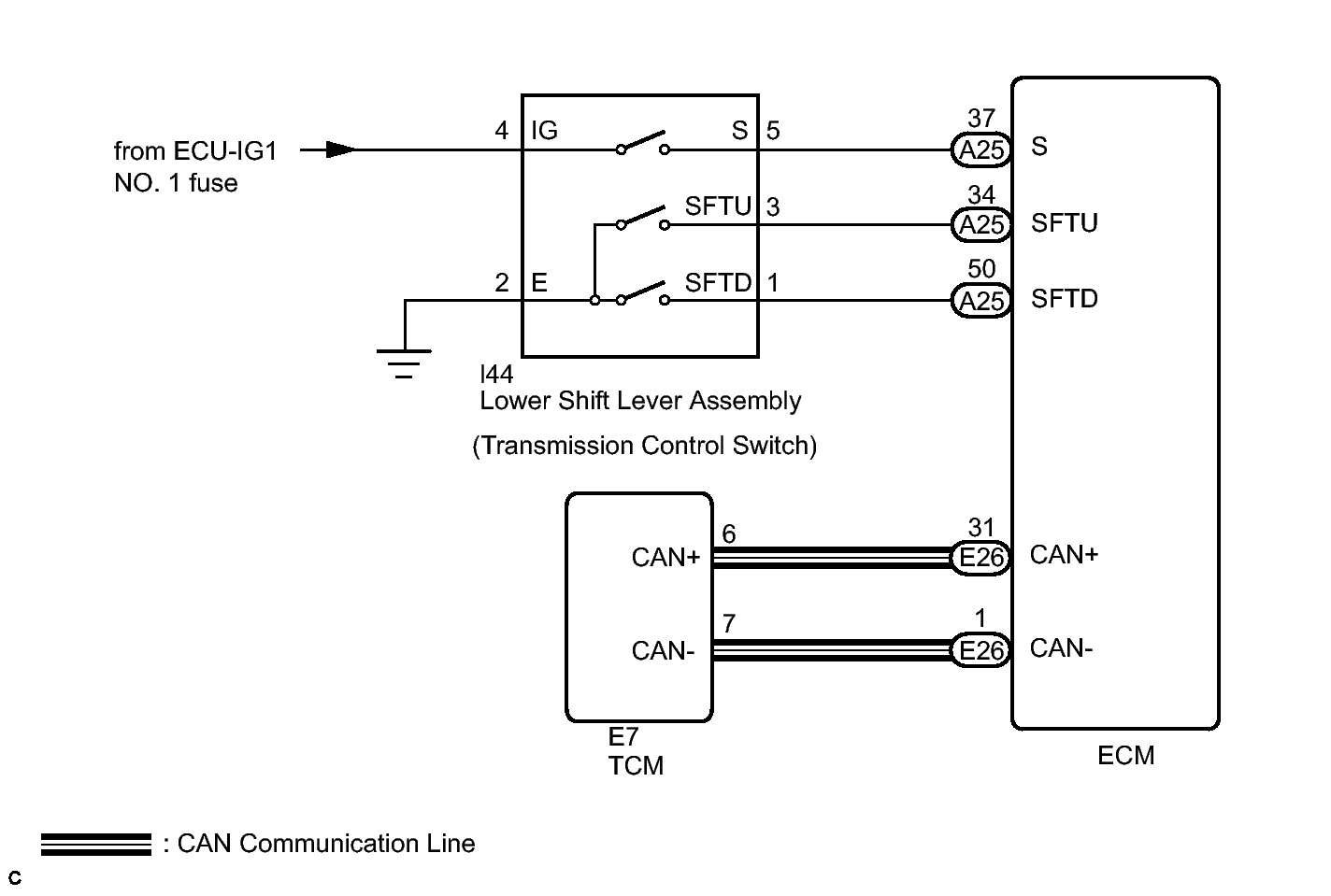

Fig 1: Transmission Control Switch Circuit Wiring Diagram
GTY322784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
