Section 436 (Automatic Transaxle (U660E) (Diagnostic Codes & Circuit Tests) (Except Hybrid))
>>
Automatic Transaxle System
>>
Circuit Tests
>>
Shift Paddle Switch Circuit
>>
Wiring Diagram
Shift Paddle Switch Circuit: Wiring Diagram
WARNING:
This page is about a different car, the 2013 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

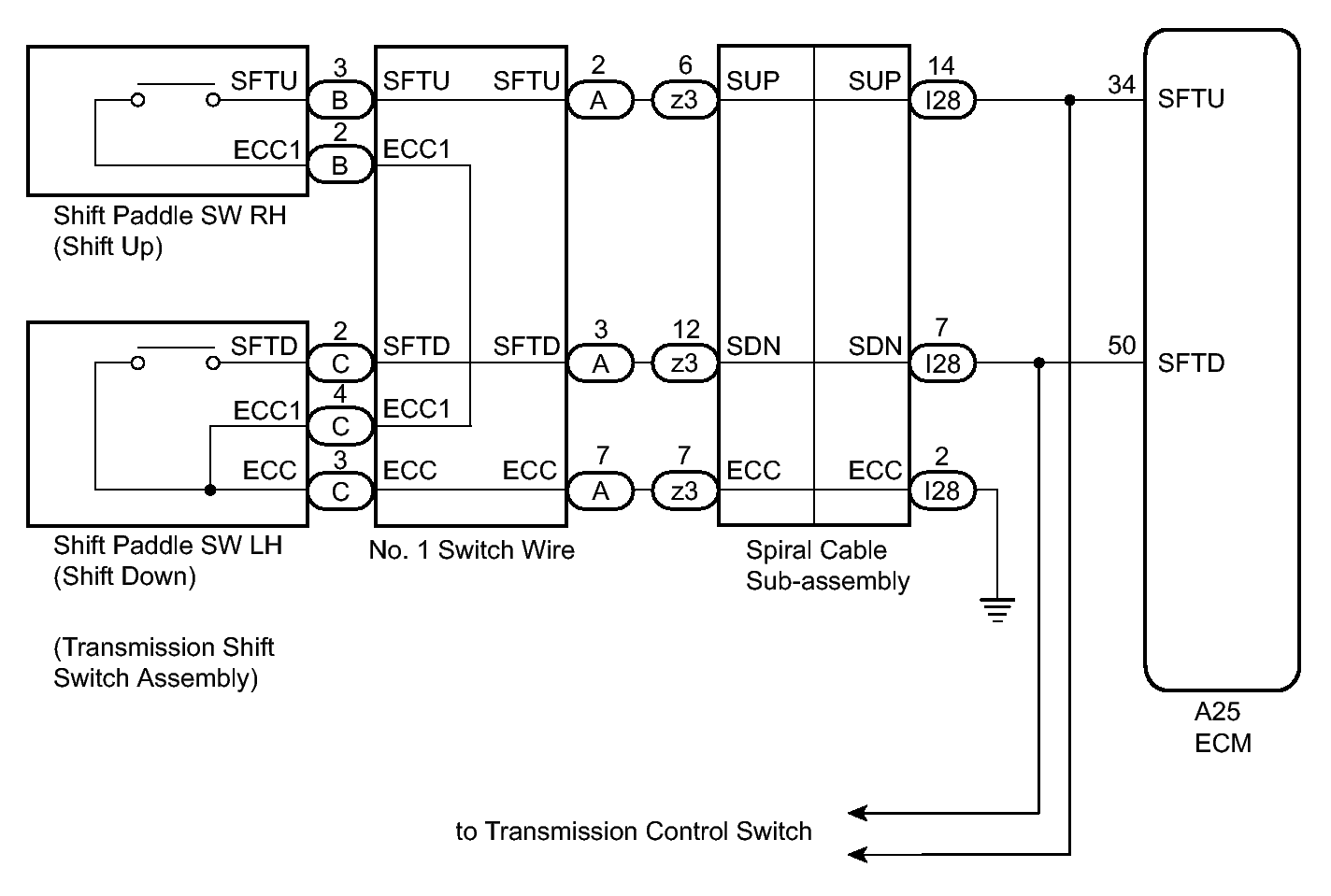

Fig 1: Shift Paddle Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
