DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2013 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

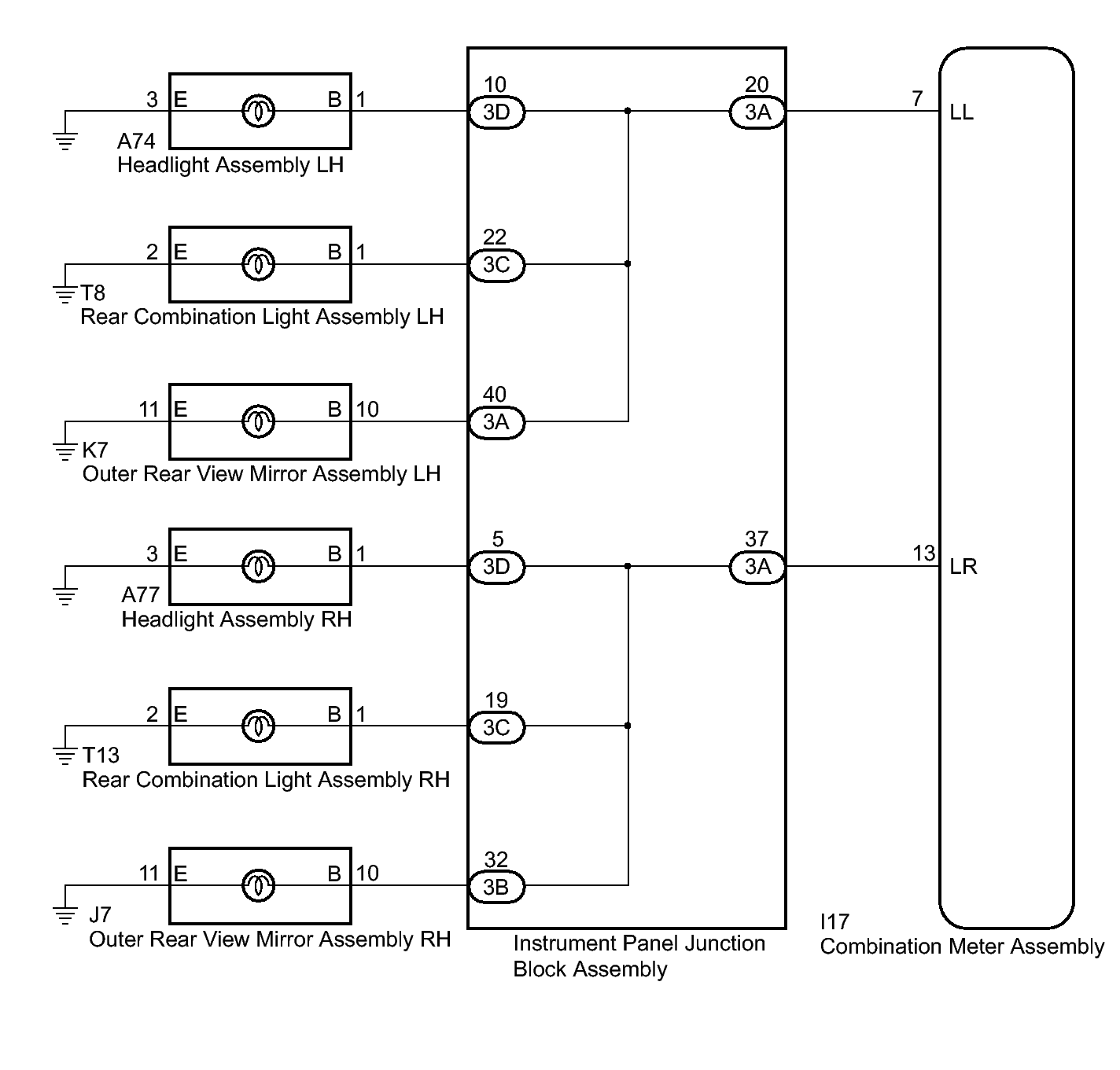

Fig 1: Turn Signal / Hazard Flasher Circuit - Wiring Diagram
GTY320694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
