Speed Signal Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2013 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

for 2GR-FE

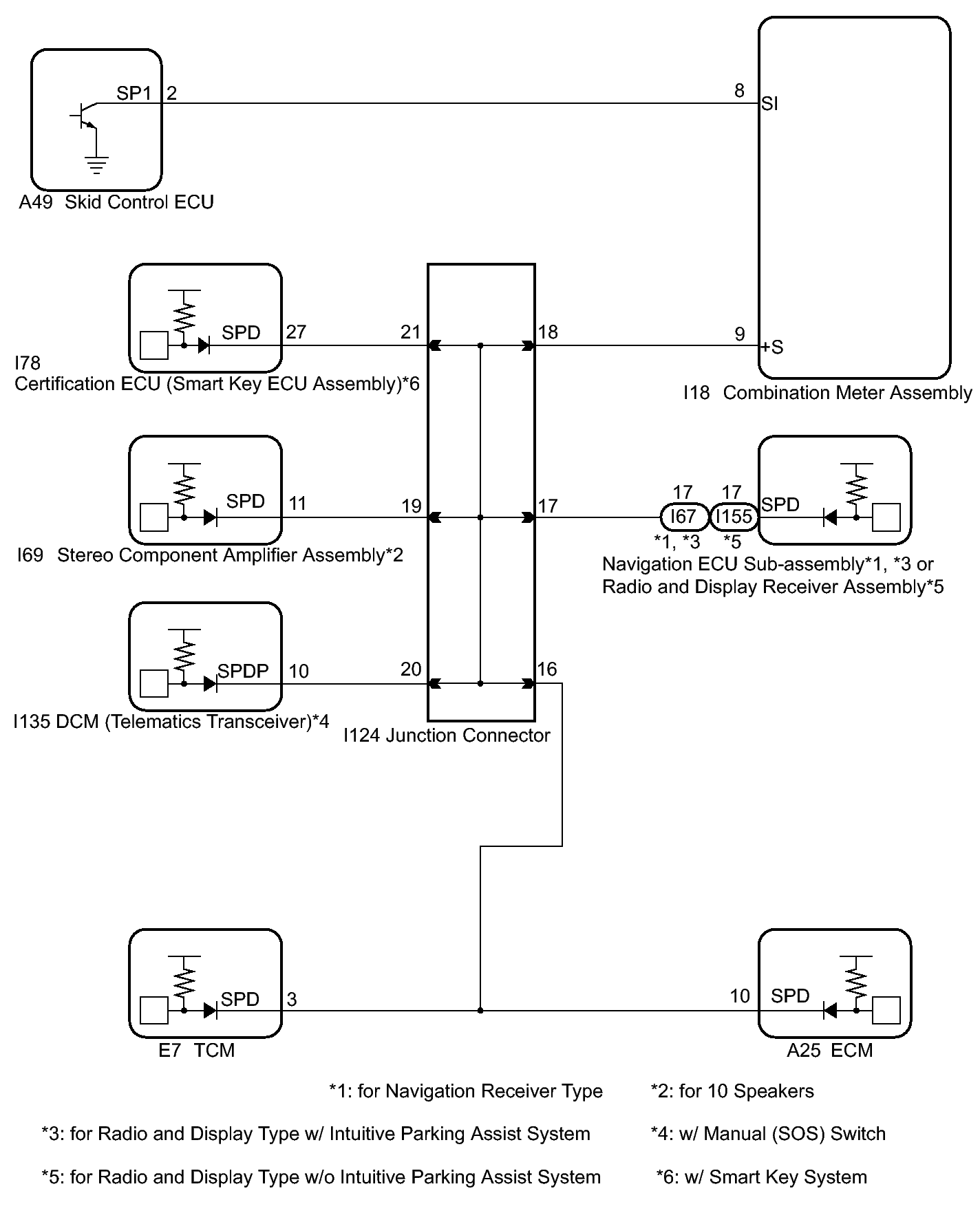

Fig 1: Vehicle Speed Signal Circuit (For 2GR-FE) - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for 2AR-FE

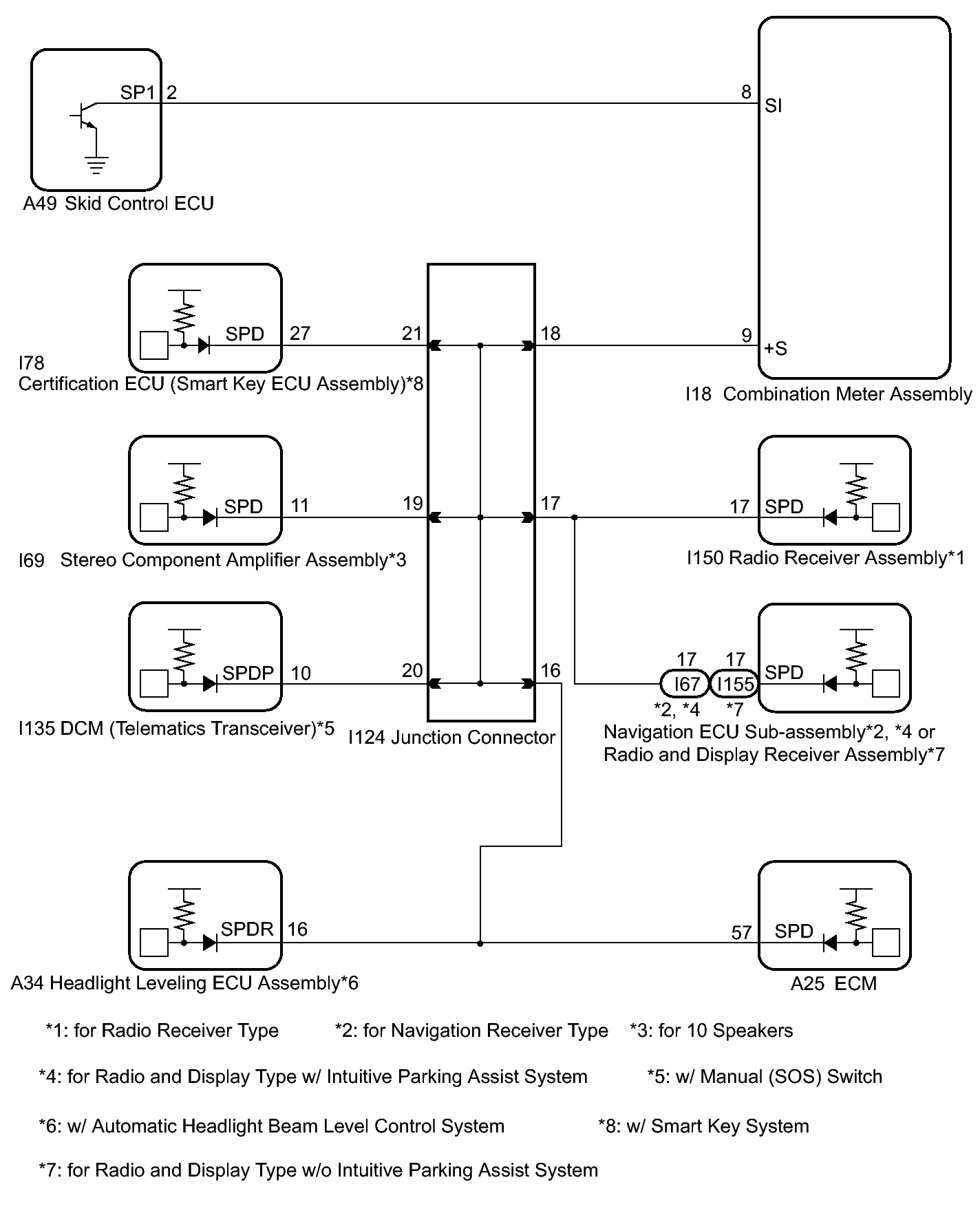

Fig 2: Vehicle Speed Signal Circuit (For 2AR-FE) - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
