: Location of Ground Points

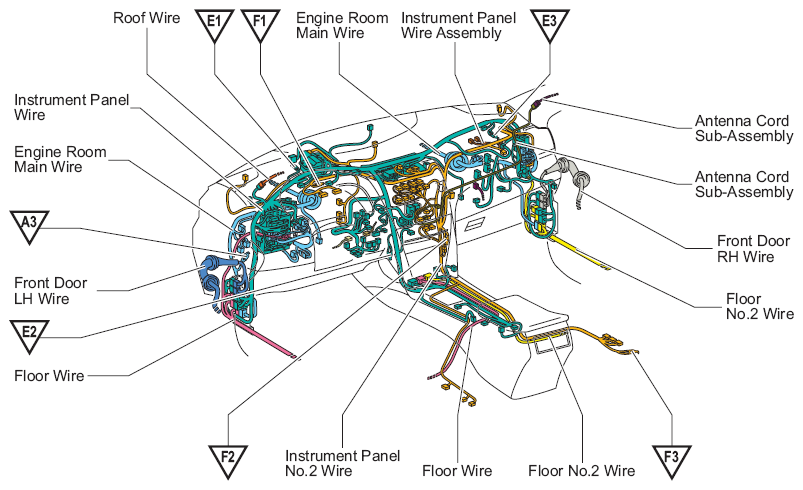

Fig 1: Locating Ground Points
G07113784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
