Smart Key System

Fig 1: Smart Key System Electrical Wiring Diagram (1 Of 5)
G07114082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Smart Key System Electrical Wiring Diagram (2 Of 5)
G07114083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Smart Key System Electrical Wiring Diagram (3 Of 5)
G07114084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Smart Key System Electrical Wiring Diagram (4 Of 5)
G07114085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

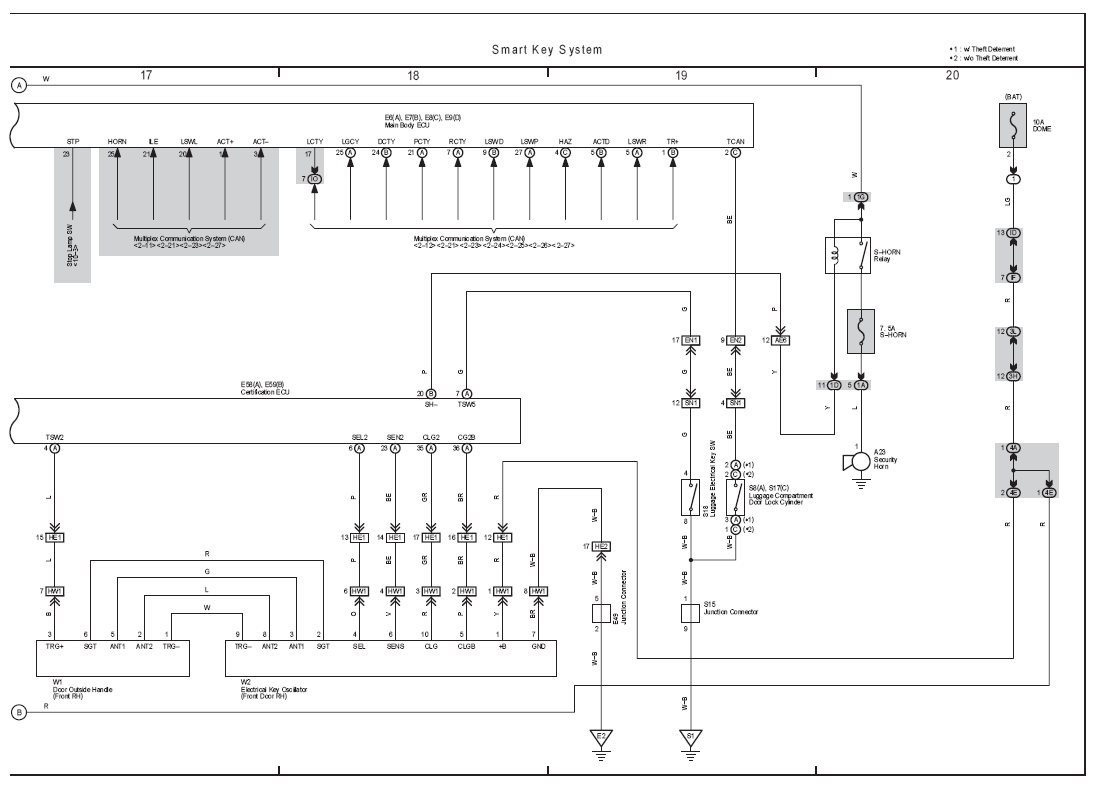

Fig 5: Smart Key System Electrical Wiring Diagram (5 Of 5)
G07114086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
