Seat Heater: Wiper and Washer

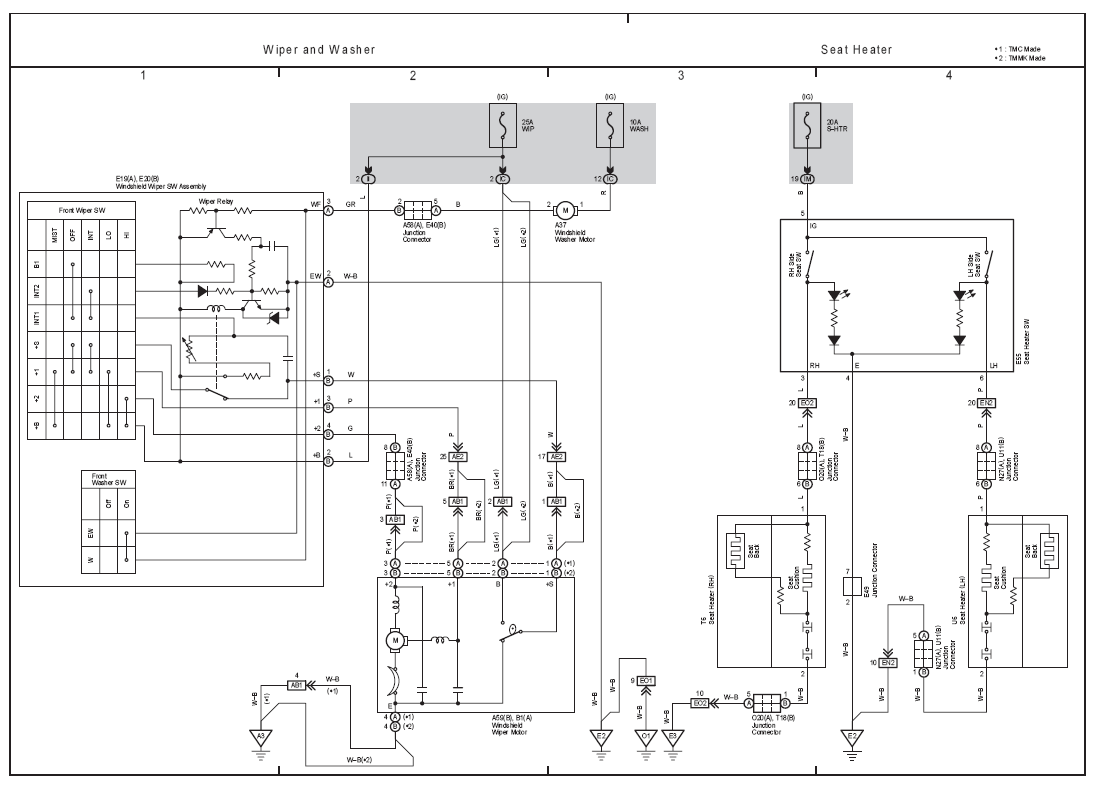

Fig 1: Wiper And Washer And Seat Heater Electrical Wiring Diagram

G07114116

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
