OEM Overall Electrical Wiring Diagram (Except Hybrid)
>>
Overall Electrical Wiring Diagram
>>
SRS: Engine Immobiliser: Push-Button Start: Steering Lock: Wireless Door Lock Control:
SRS: Engine Immobiliser: Push-Button Start: Steering Lock: Wireless Door Lock Control:

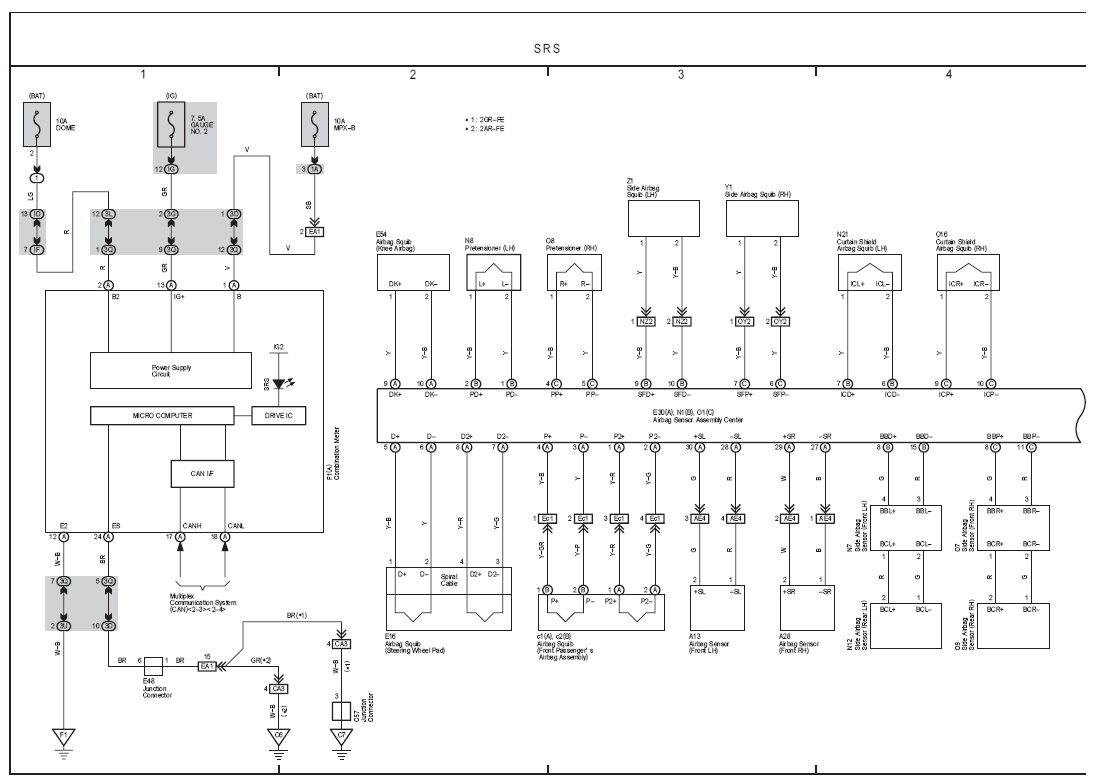

Fig 1: SRS Electrical Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

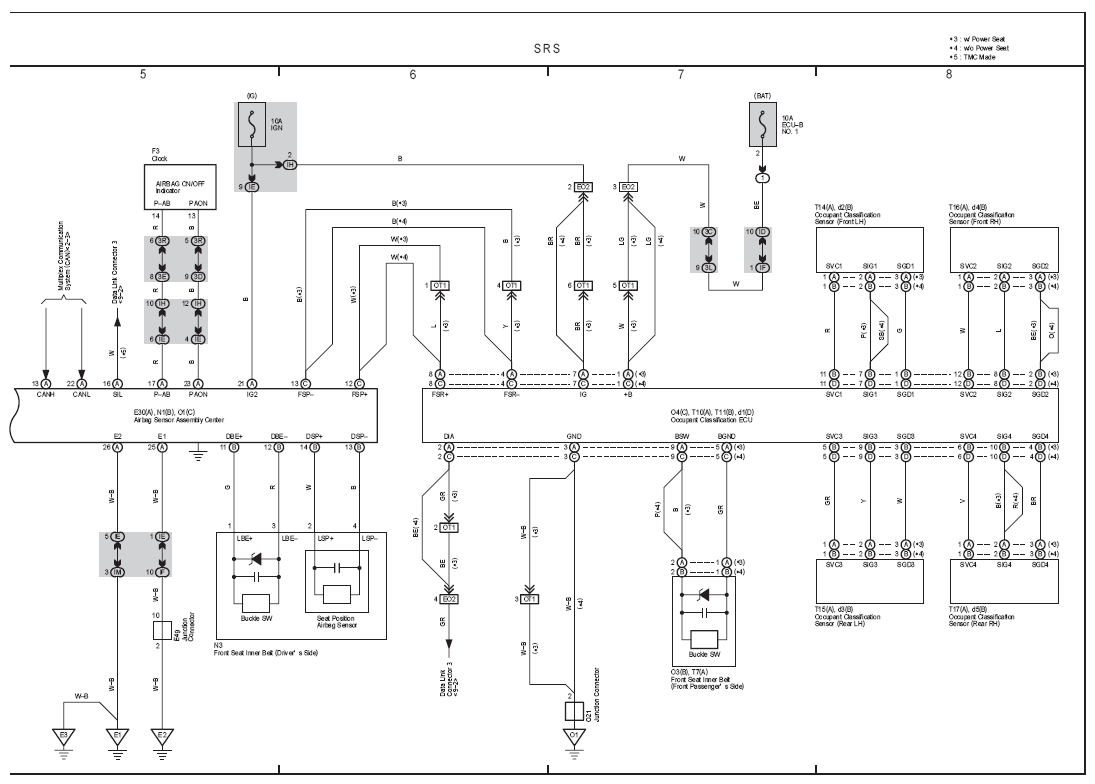

Fig 2: SRS Electrical Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
