Overall Electrical Wiring Diagram: Notes

HOW TO READ THIS SECTION

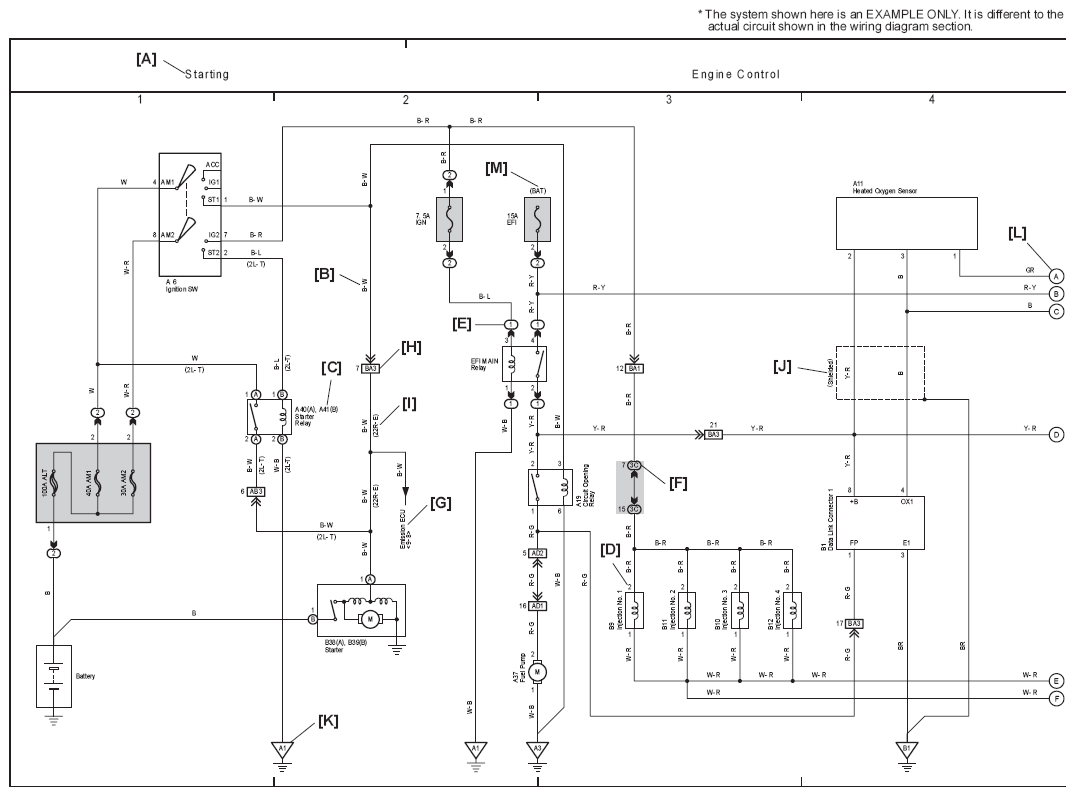

Fig 1: Electrical Wiring Diagram Example
G07114065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

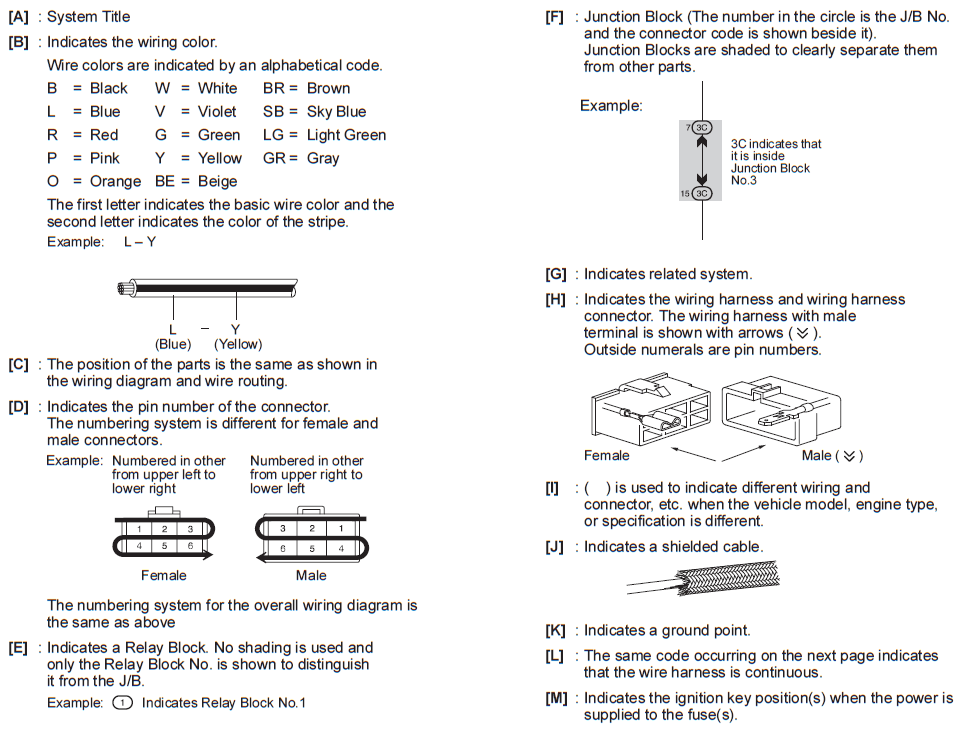

Fig 2: Electrical Wiring Diagram Example (Legends)
G07114066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
