Mirror Heater: Rear Window Defogger: Remote Control Mirror

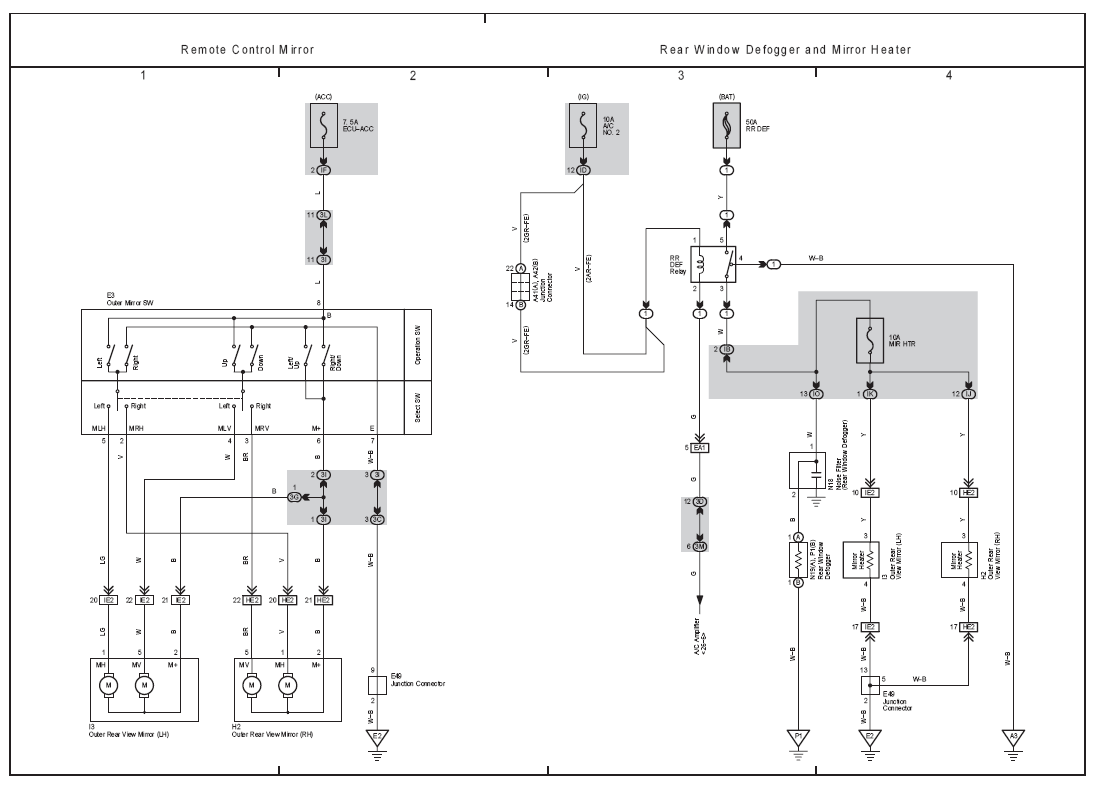

Fig 1: Remote Control Mirror With Rear Window Defogger And Mirror Heater Electrical Wiring Diagram
G07114115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
