Cruise Control (2GR-FE): Electronically Controlled Transmission and A/T Indicator (2GR-FE): Engine Control (2GR-FE)

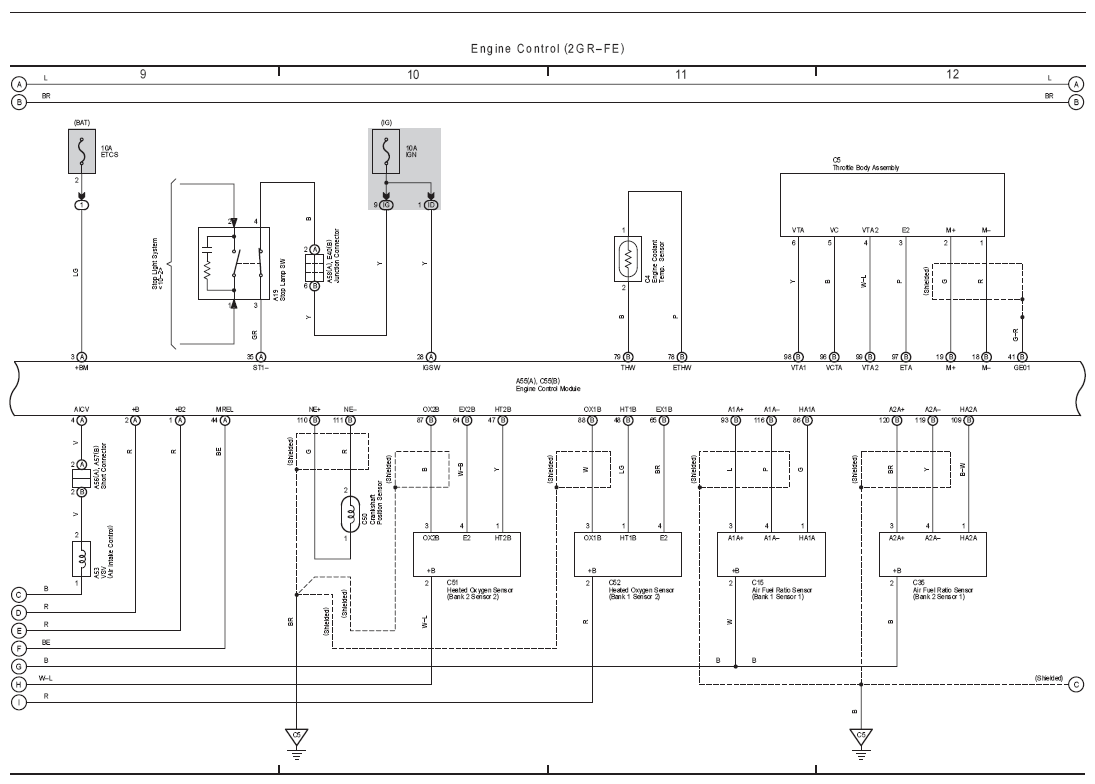

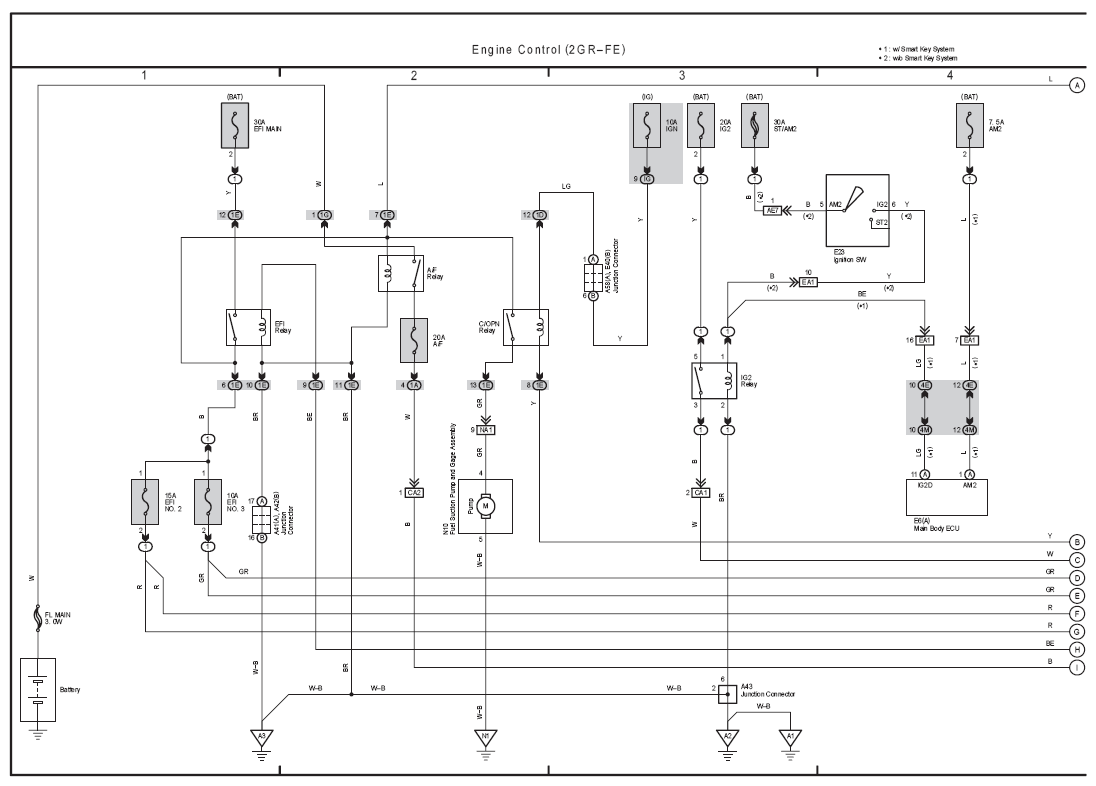

Fig 1: Engine Control (2GR-FE) Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

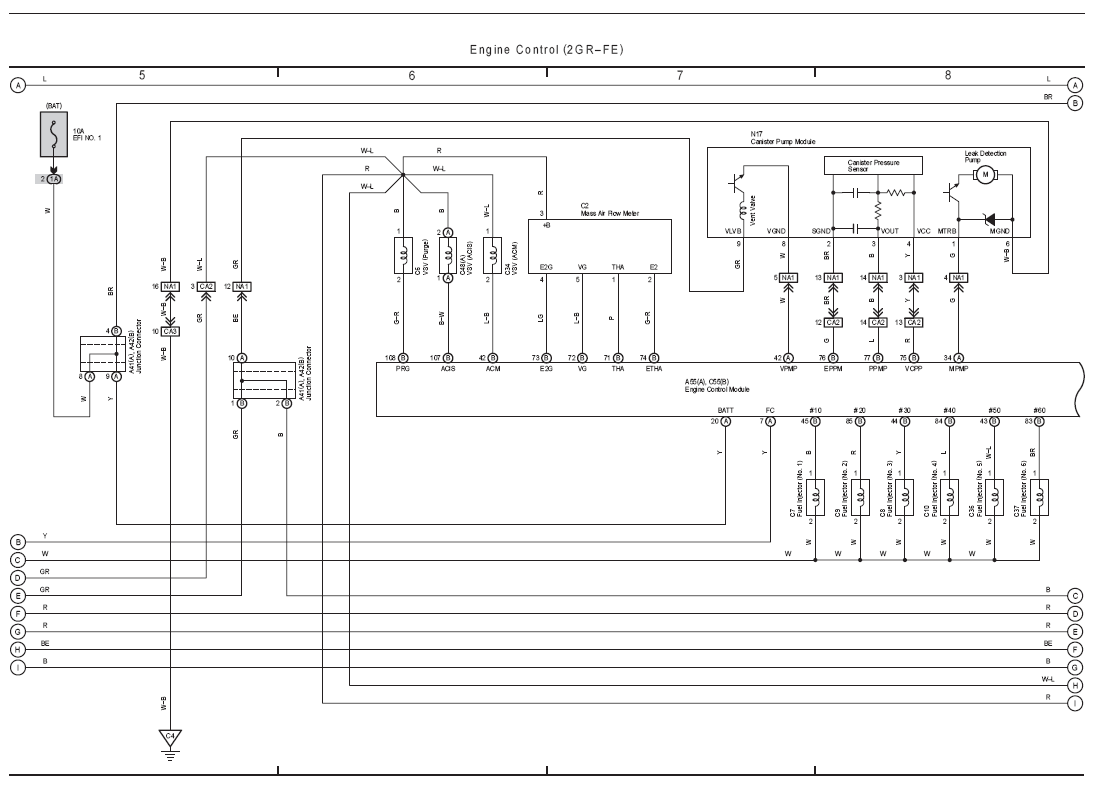

Fig 2: Engine Control (2GR-FE) Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Control (2GR-FE) Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

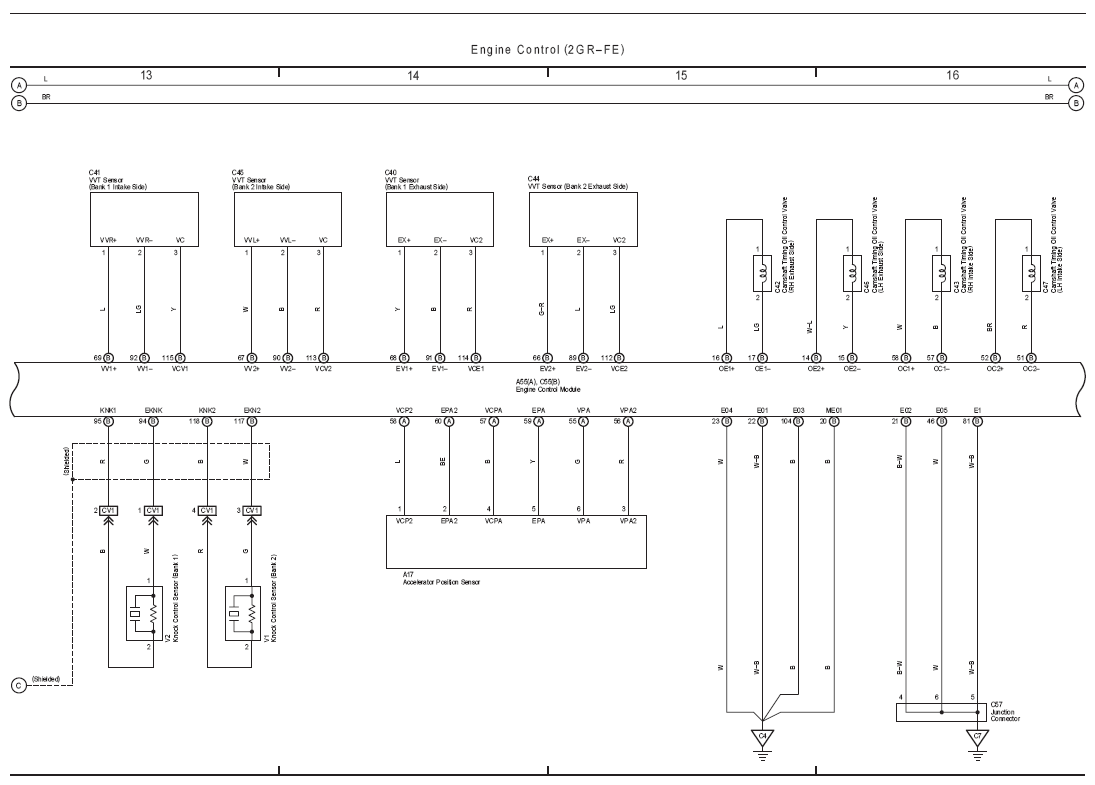

Fig 4: Engine Control (2GR-FE) Electrical Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

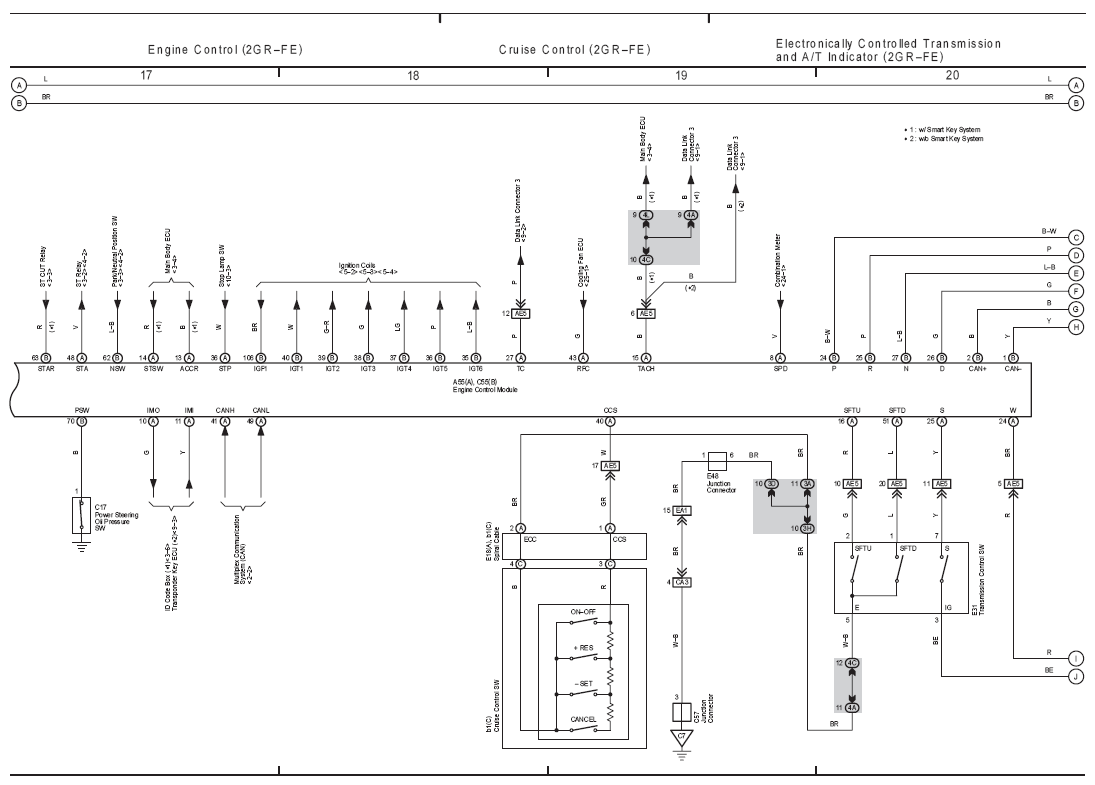

Fig 5: Engine Control (2GR-FE) Electrical Wiring Diagram (5 Of 5)

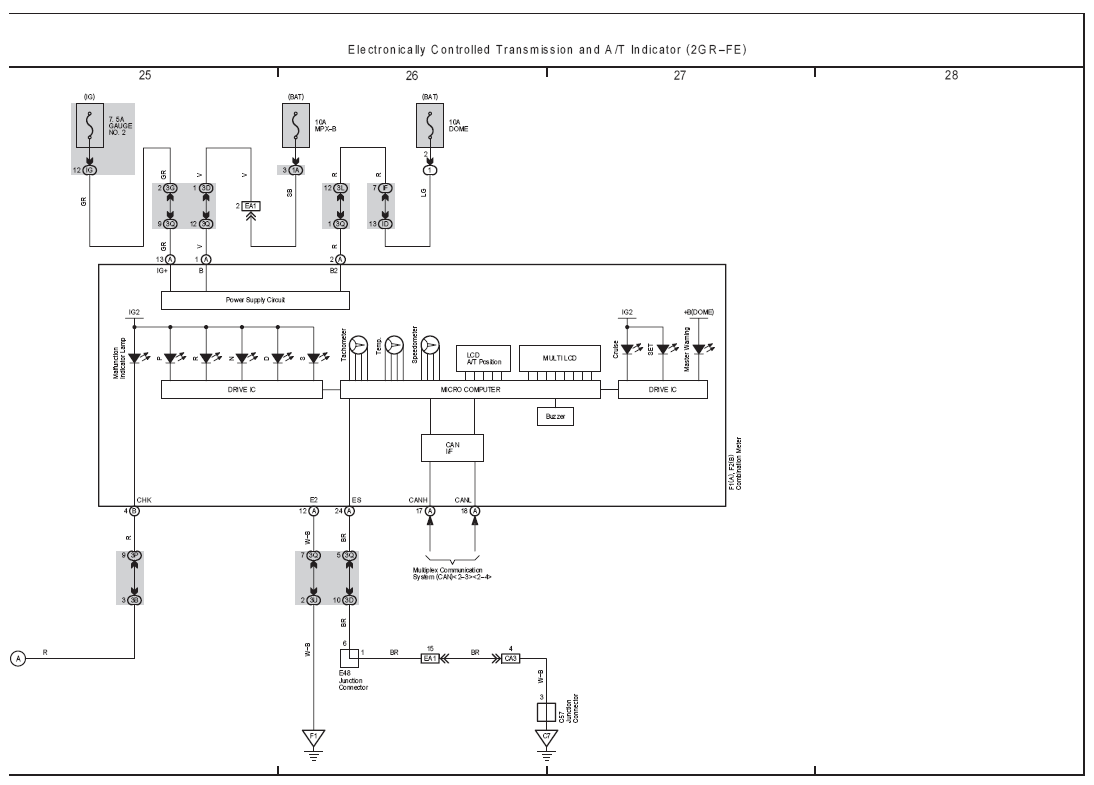

Fig 6: Electronically Controlled Transmission And A/T Indicator (2GR-FE) Electrical Wiring Diagram (1 Of 2)

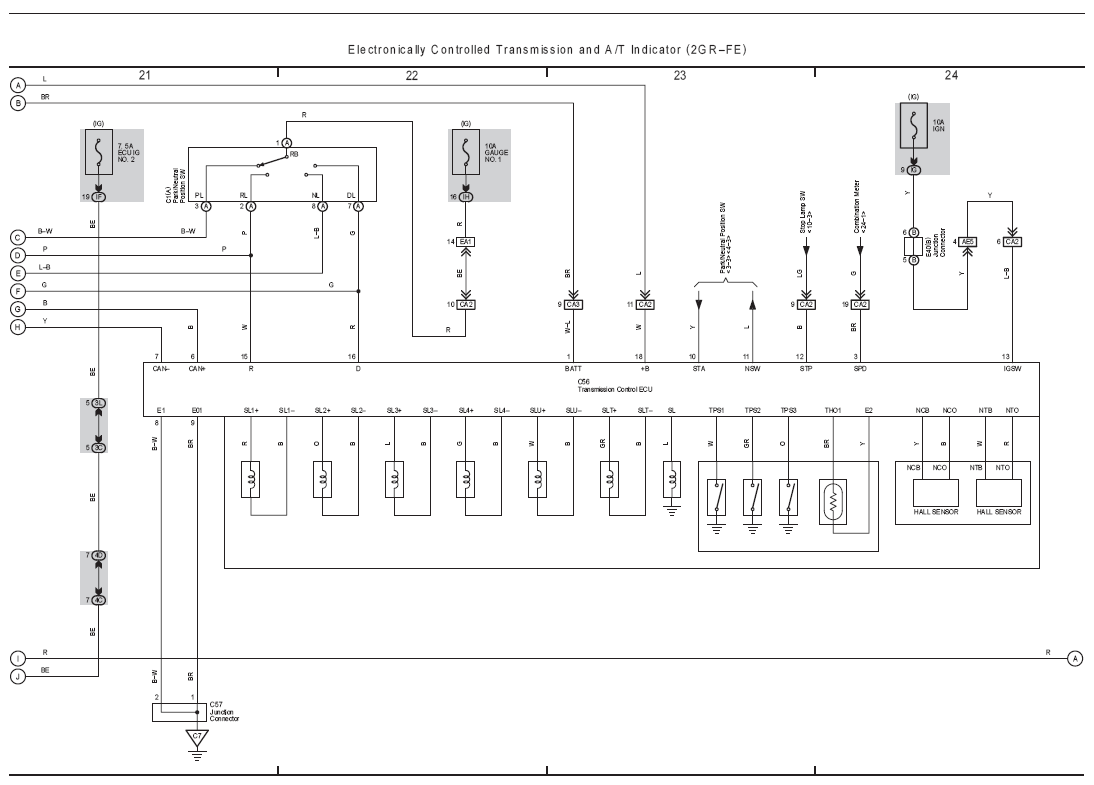

Fig 7: Electronically Controlled Transmission And A/T Indicator (2GR-FE) Electrical Wiring Diagram (2 Of 2)
