Overall Electrical Wiring Diagram
>>
Automatic Glare-Resistant EC Mirror with Compass: Clock: Sliding Roof
Automatic Glare-Resistant EC Mirror with Compass: Clock: Sliding Roof

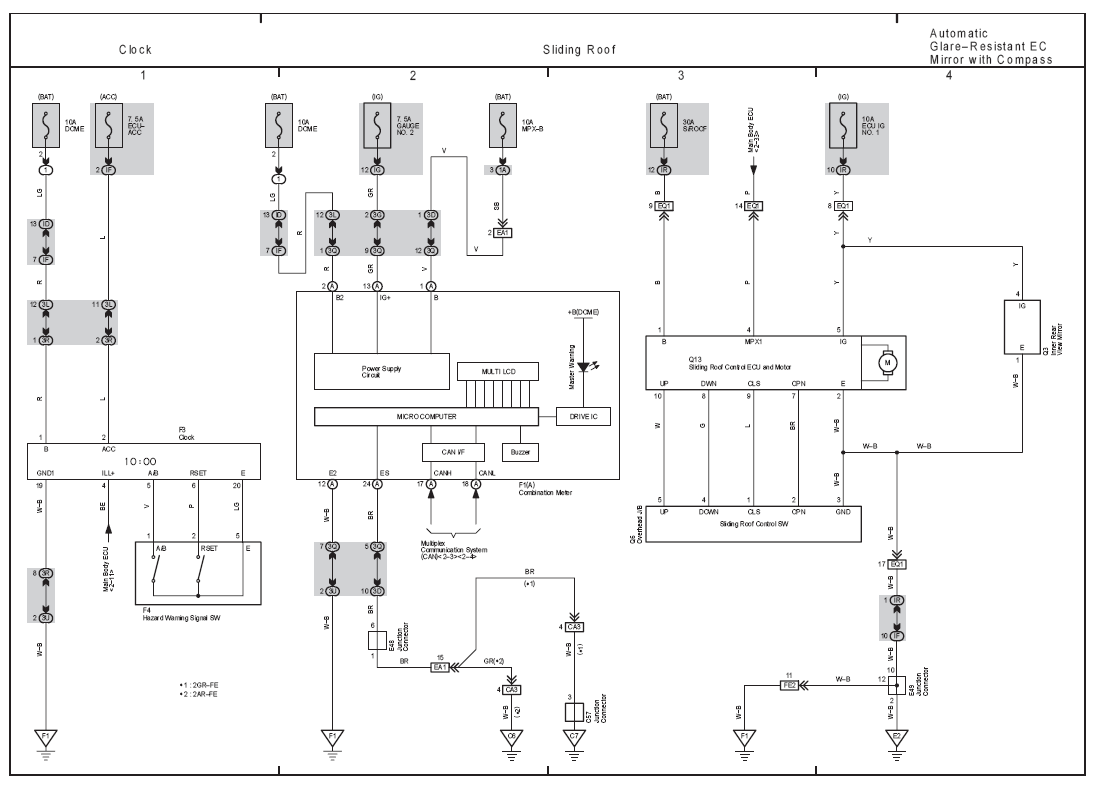

Fig 1: Sliding Roof Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
