Audio System (8 Speaker w/o Navigation System)

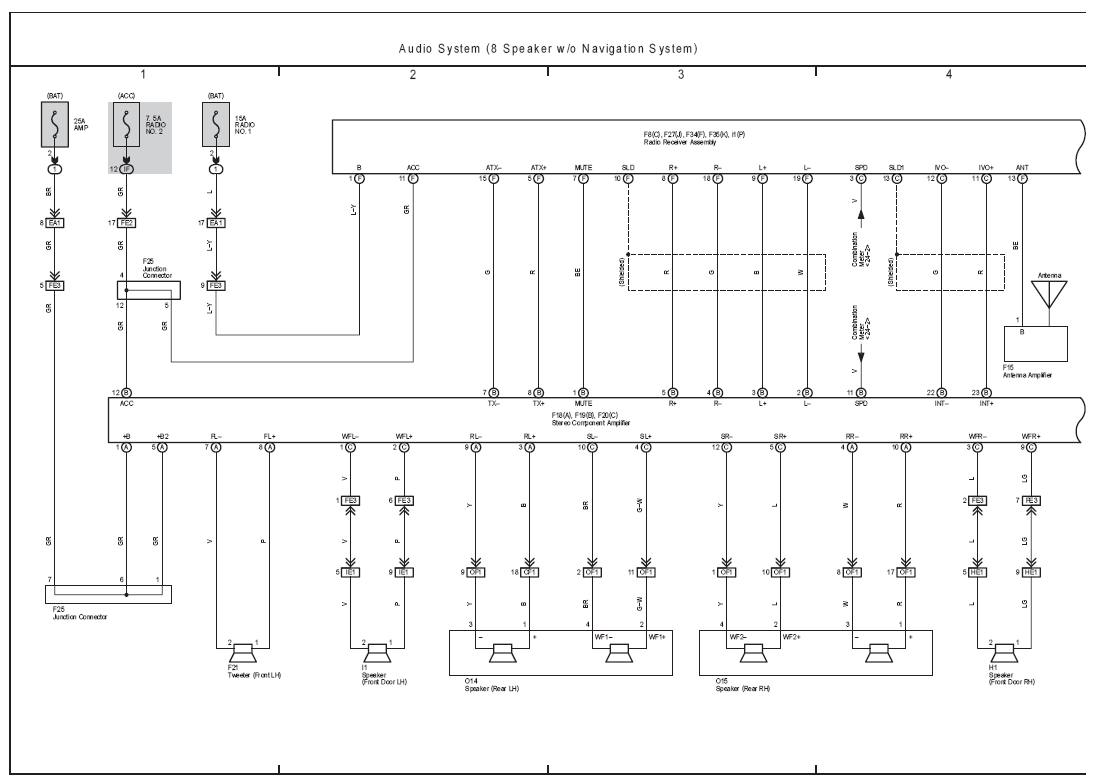

Fig 1: Audio System (8 Speaker w/o Navigation System) Electrical Wiring Diagram (1 Of 3)
G07114123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

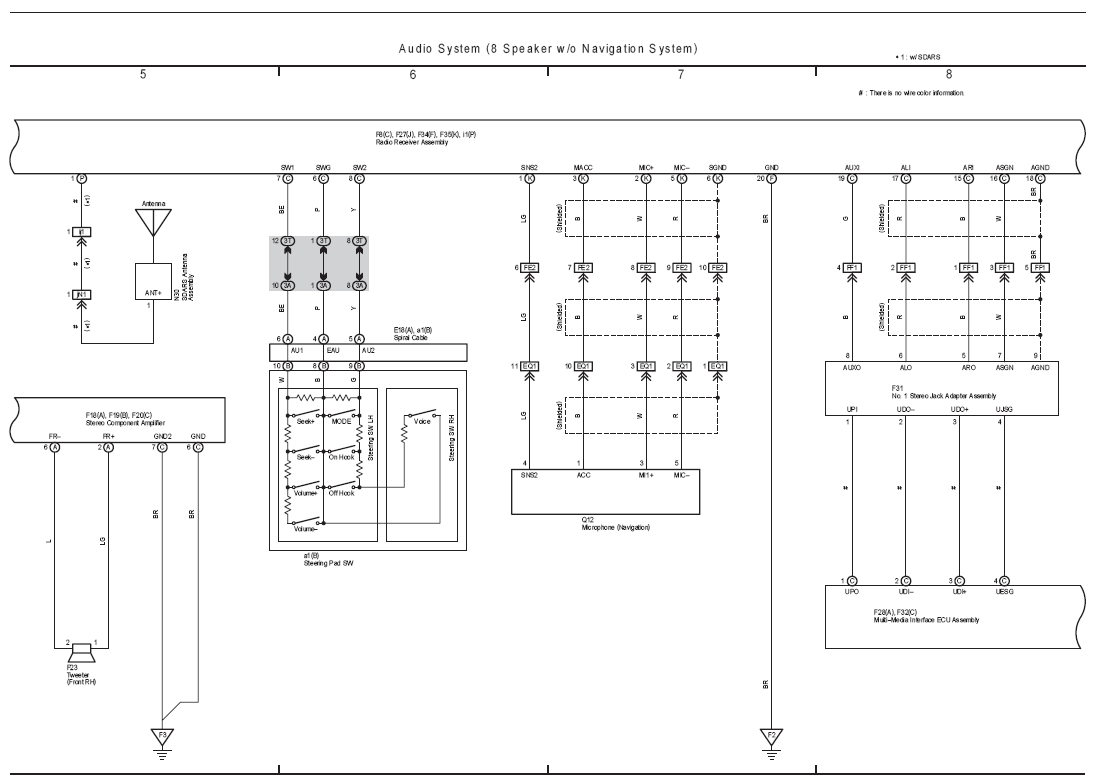

Fig 2: Audio System (8 Speaker w/o Navigation System) Electrical Wiring Diagram (2 Of 3)
G07114124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

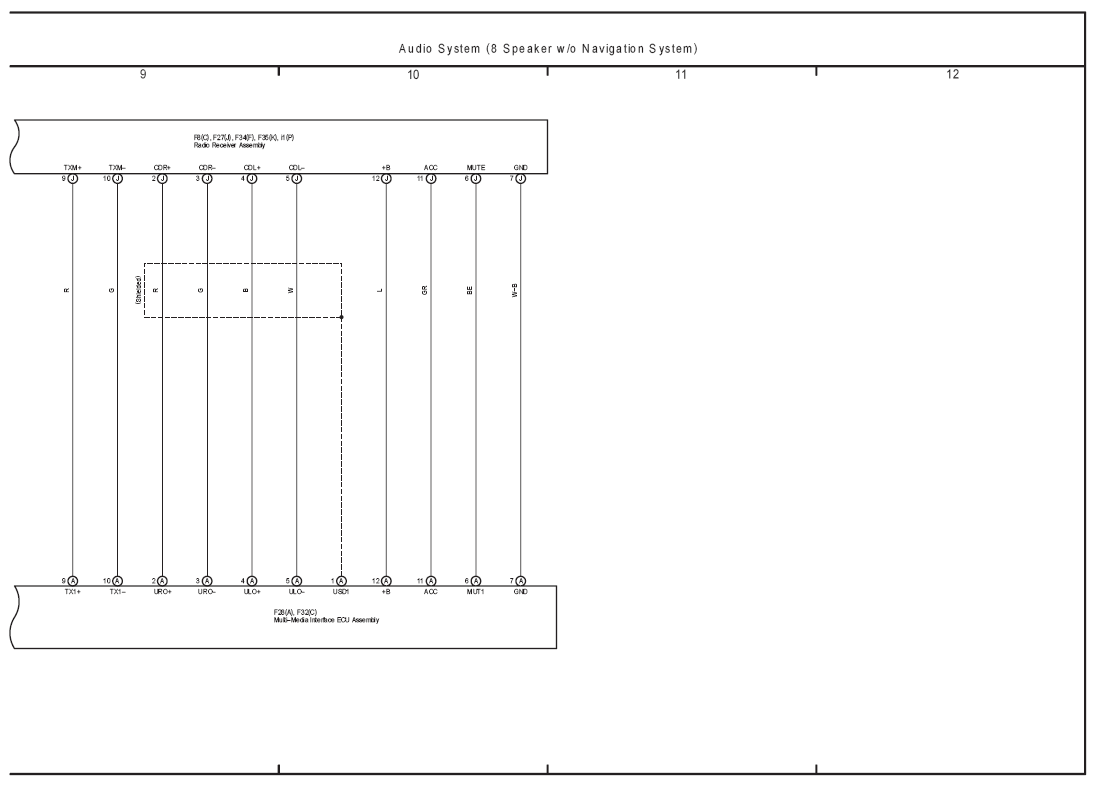

Fig 3: Audio System (8 Speaker w/o Navigation System) Electrical Wiring Diagram (3 Of 3)
G07114125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
