Air Conditioning

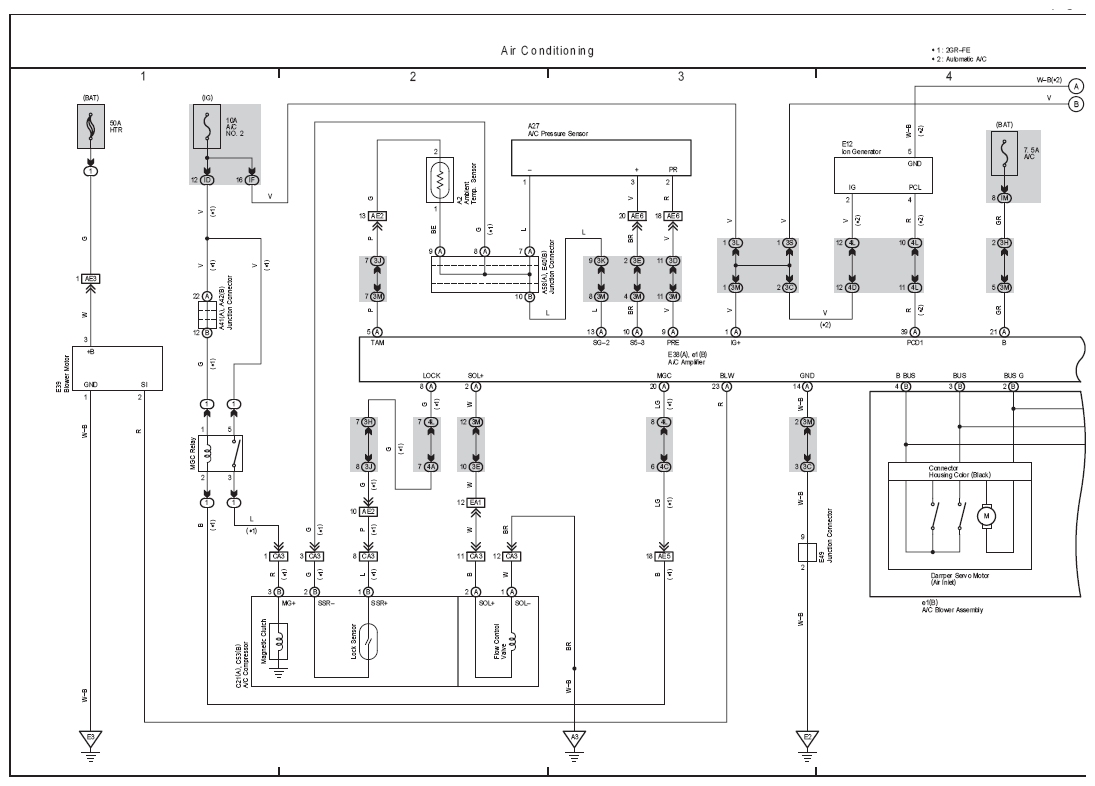

Fig 1: Air Conditioning Electrical Wiring Diagram (1 Of 2)
G07114131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

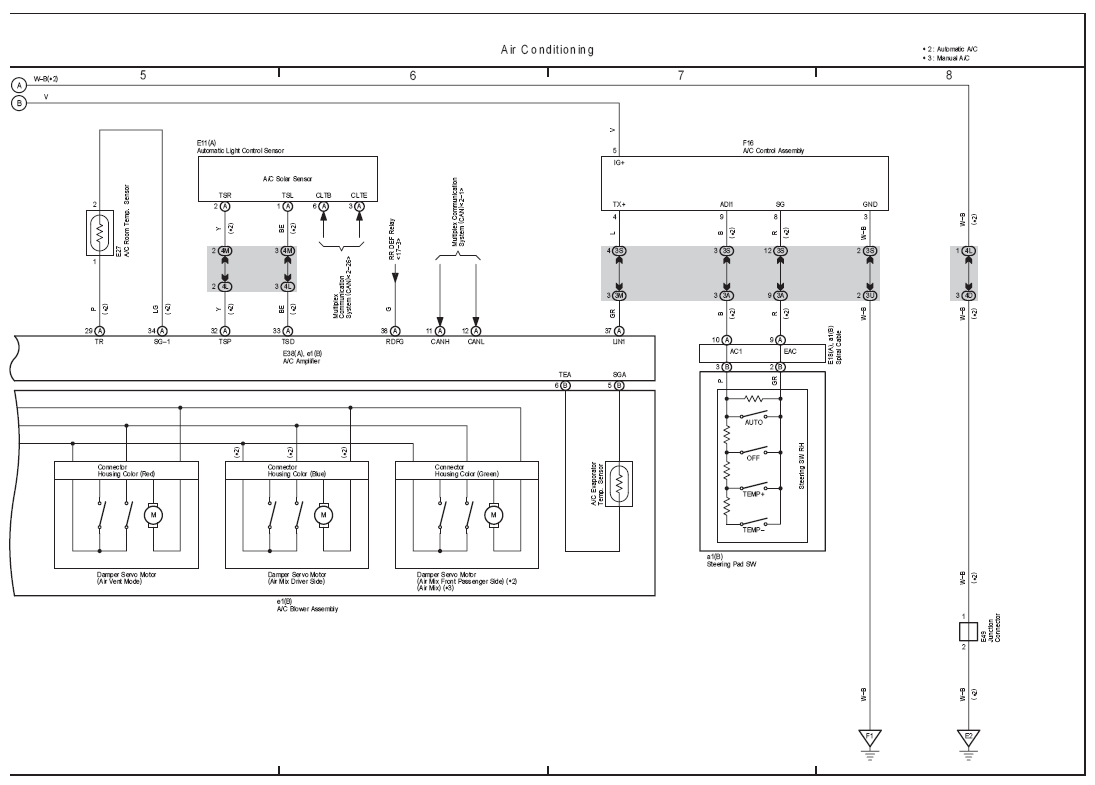

Fig 2: Air Conditioning Electrical Wiring Diagram (2 Of 2)
G07114132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
