ABS (TMMK Made): TRAC (TMMK Made): VSC (TMMK Made)

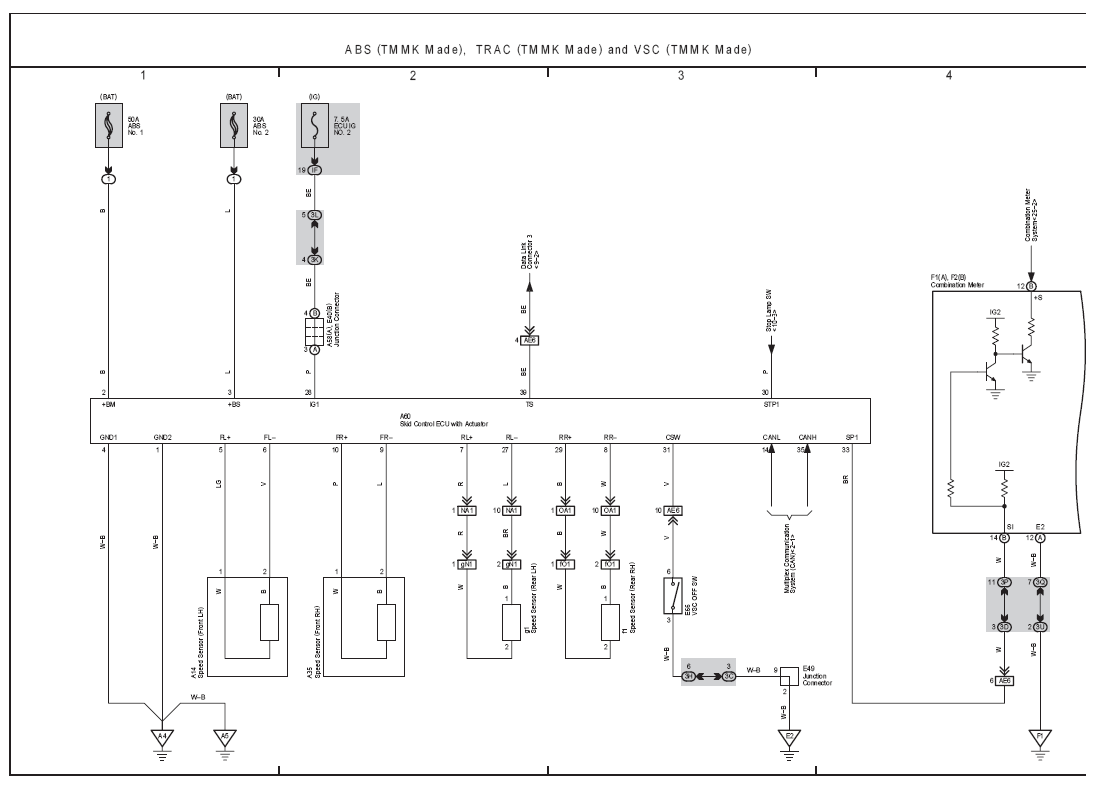

Fig 1: ABS (TMMK Made), TRAC (TMMK Made) And VSC (TMMK Made) Electrical Wiring Diagram (1 Of 2)
G07114109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

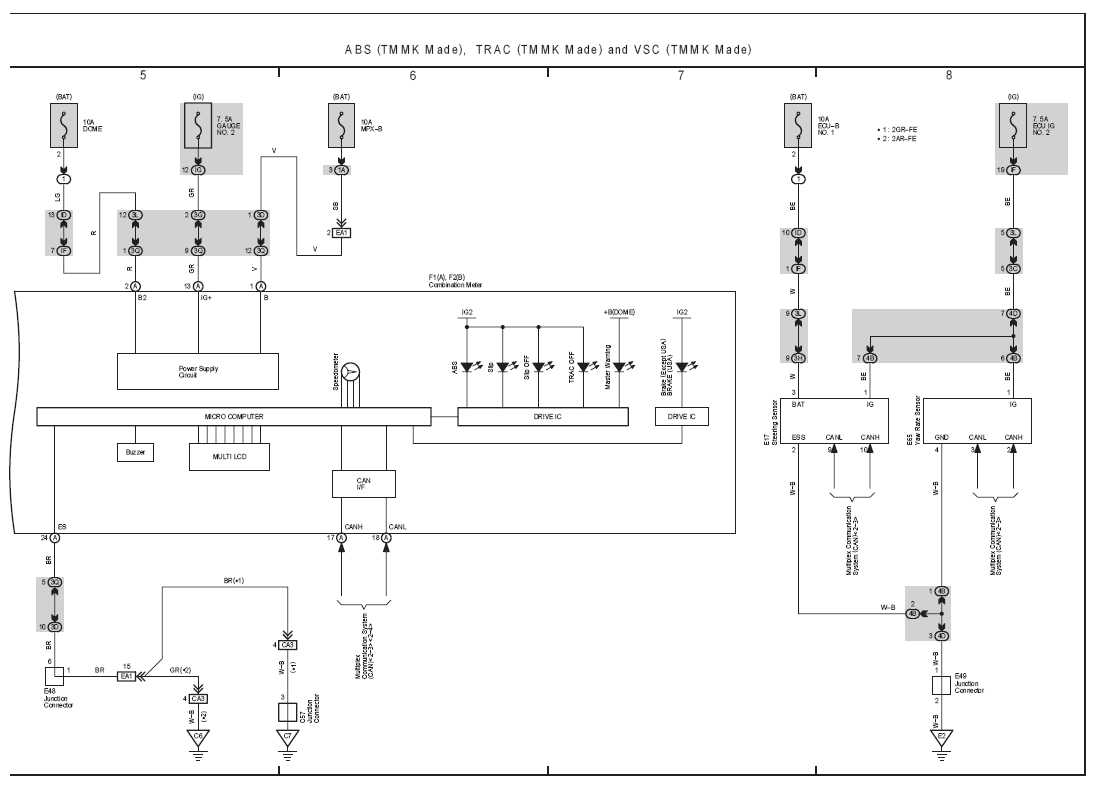

Fig 2: ABS (TMMK Made), TRAC (TMMK Made) And VSC (TMMK Made) Electrical Wiring Diagram (2 Of 2)
G07114110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
