Sliding Roof ECU Power Source Circuit: Wiring Diagram

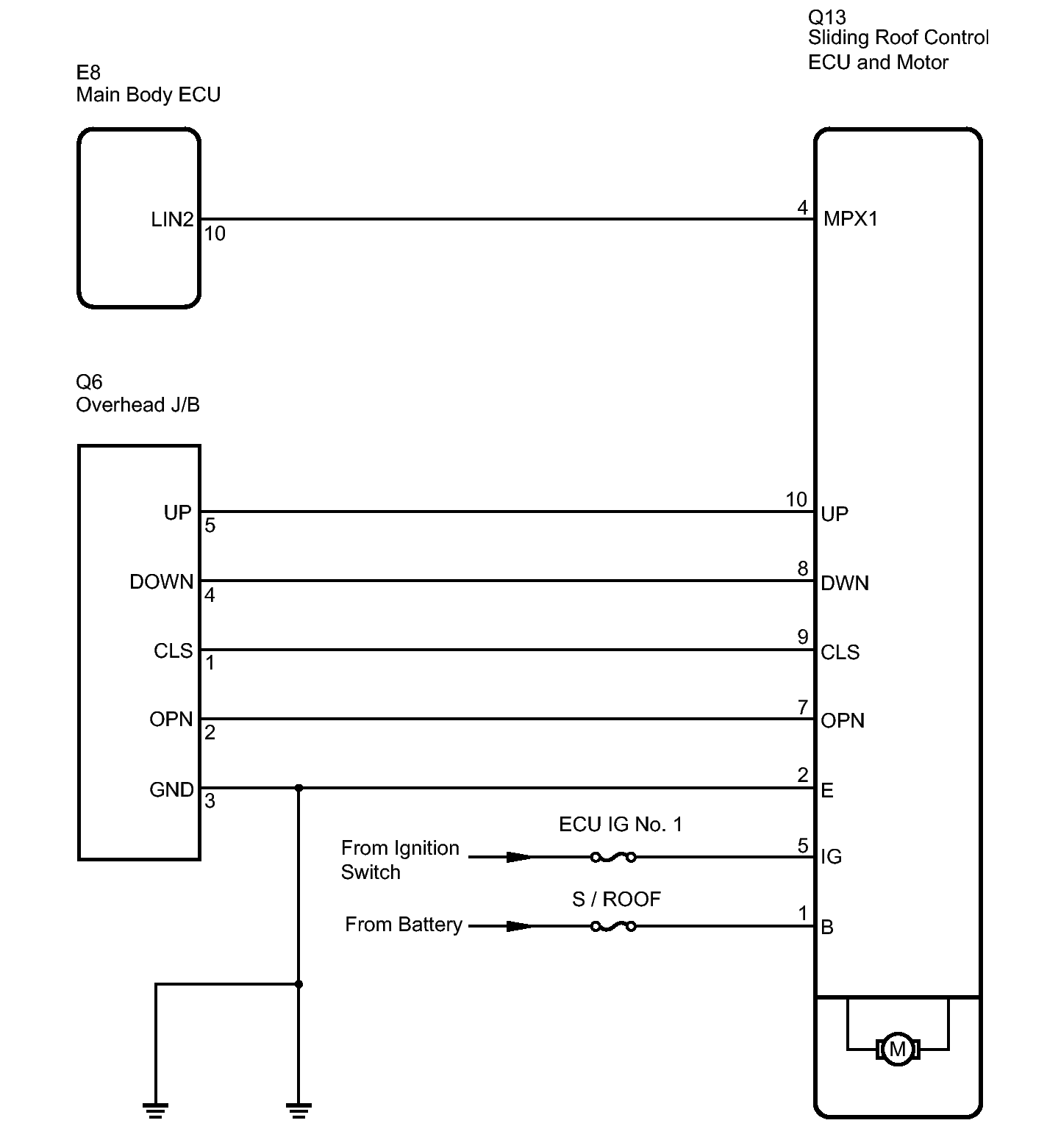

Fig 1: Sliding Roof ECU Power Source Circuit

GTY187867

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
