Home >> Toyota >> 2011 >> Camry Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Sliding Roof (Diagnostic Codes & Circuit Tests) (Except Hybrid) >> Sliding Roof System >> DTC B2341: Sensor (Motor) Failure; DTC B2344: Position Failure >> Wiring Diagram

DTC B2341: Sensor (Motor) Failure; DTC B2344: Position Failure: Wiring Diagram

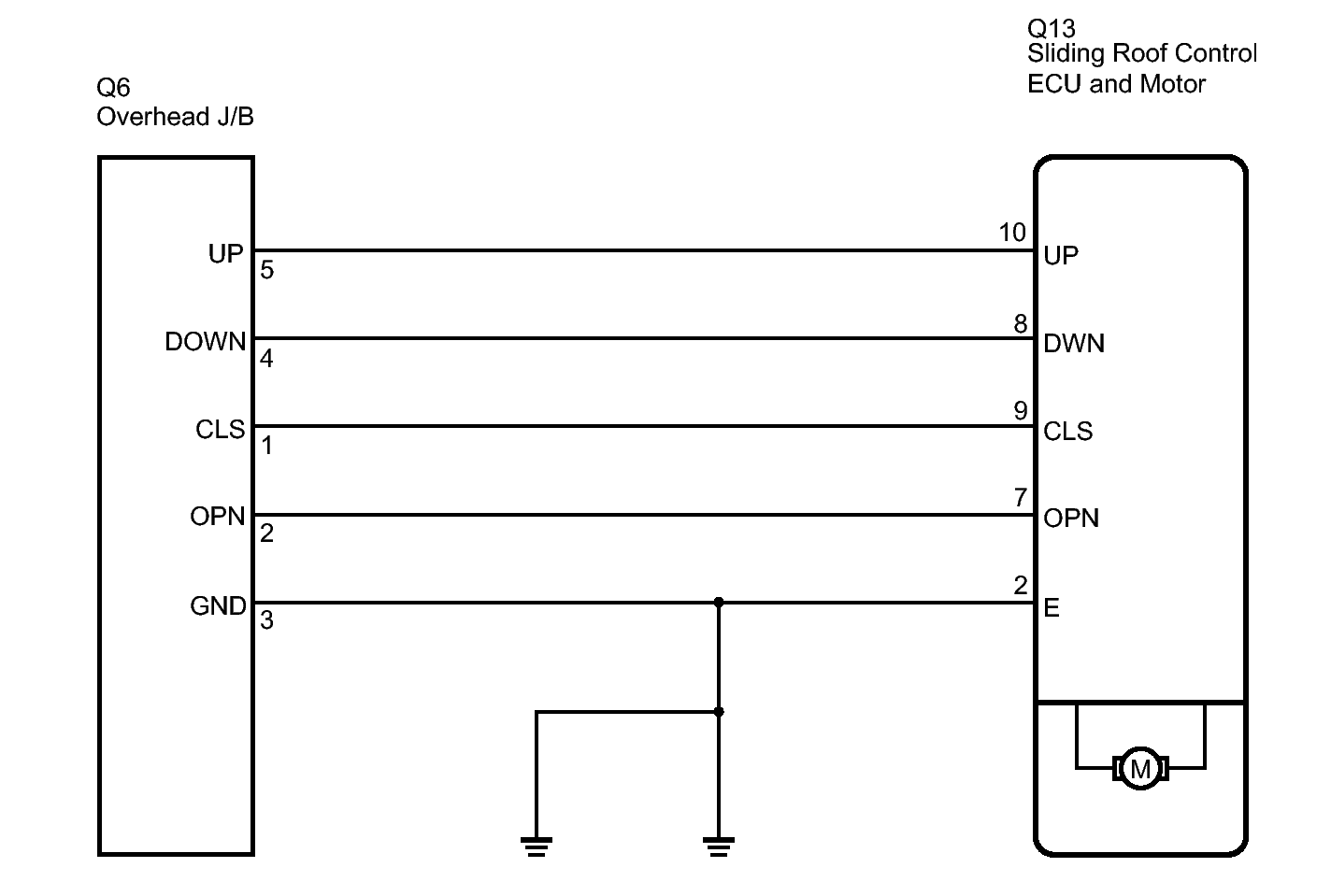

Fig 1: Identifying Sensor (Motor) Failure Wiring Diagram

GTY181313

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
