On-Vehicle Inspection
- INSPECT REAR DOOR PANEL SUB-ASSEMBLY

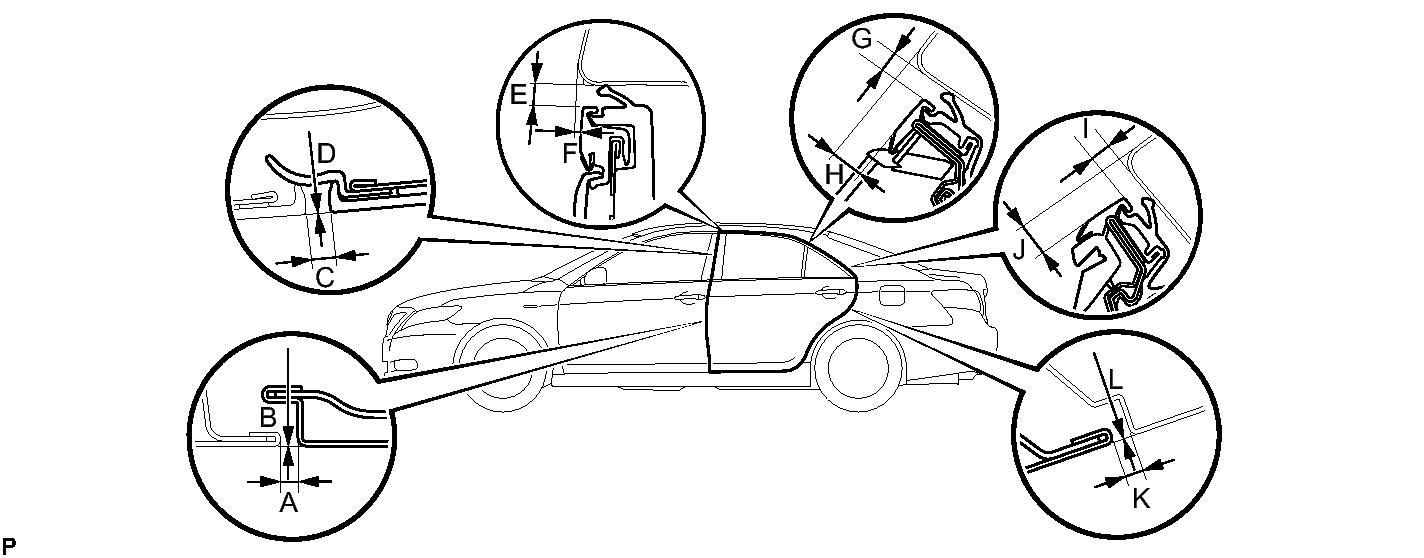

- Check that the clearance measurements of areas A through L are within each standard range.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard clearance
Area Measurement Area Measurement A 2.7 to 5.7 mm (0.106 to 0.224 in.) G 3.3 to 6.3 mm (0.130 to 0.248 in.) B -1.5 to 1.5 mm (-0.059 to 0.059 in.) H 0 to 3.0 mm (0 to 0.118 in.) C 2.3 to 6.3 mm (0.091 to 0.248 in.) I 3.3 to 6.3 mm (0.130 to 0.248 in.) D -2.0 to 2.0 mm (-0.079 to 0.079 in.) J 5.7 to 8.7 mm (0.224 to 0.343 in.) E 3.3 to 6.3 mm (0.130 to 0.248 in.) K 2.7 to 5.7 mm (0.106 to 0.224 in.) F -0.3 to 2.7 mm (0.012 to 0.106 in.) L -1.5 to 1.5 mm (-0.059 to 0.059 in.)
- Check that the clearance measurements of areas A through L are within each standard range.
