Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

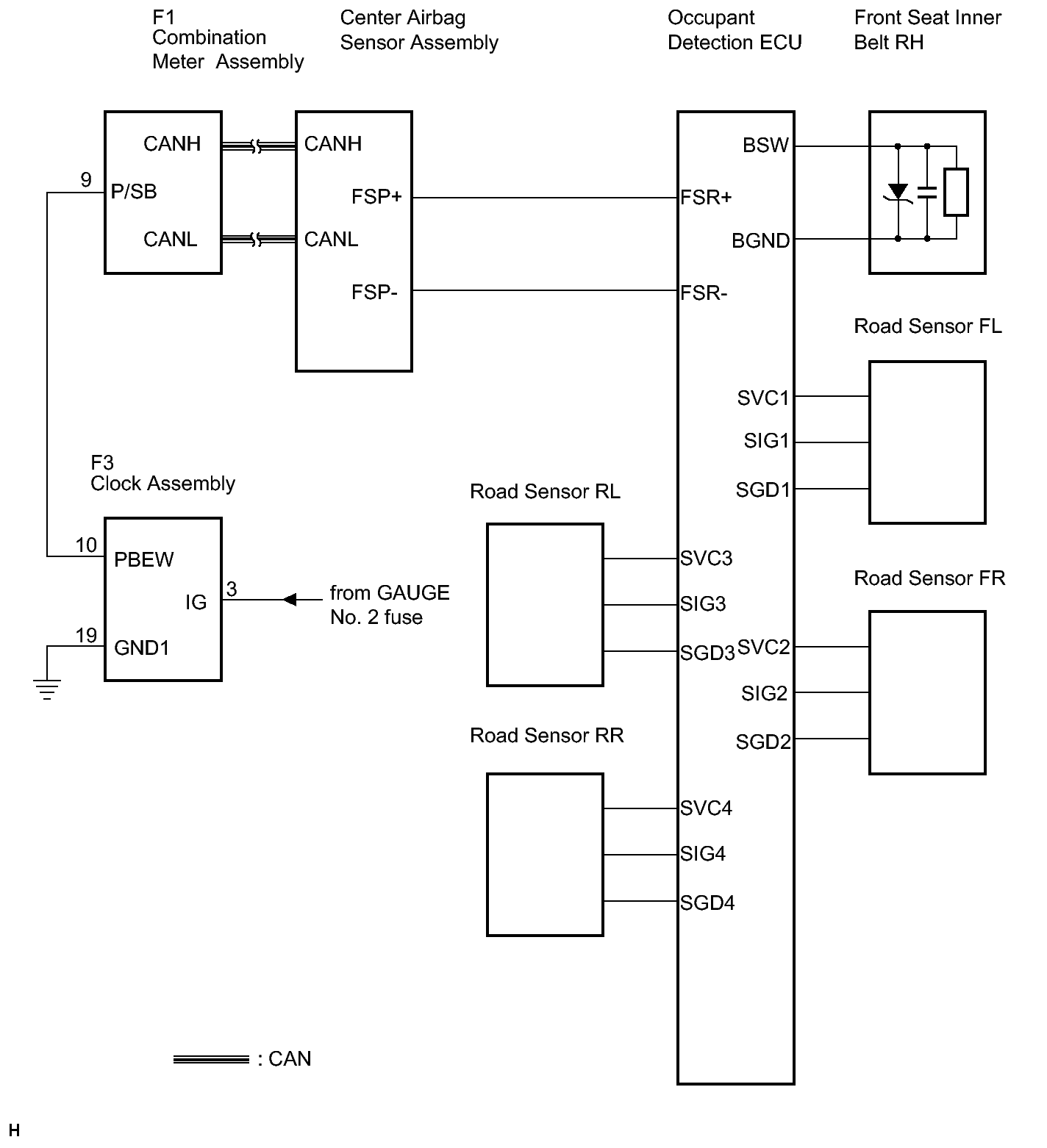

Fig 1: Identifying Seat Belt Warning Light Wiring Diagram

GTY293655

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
