Seat Belt Warning System (Diagnostics & Symptom Tests) (Except Hybrid)
>>
Seat Belt Warning System
>>
Driver Side Seat Belt Warning Light does not Operate
>>
Wiring Diagram
Driver Side Seat Belt Warning Light does not Operate: Wiring Diagram

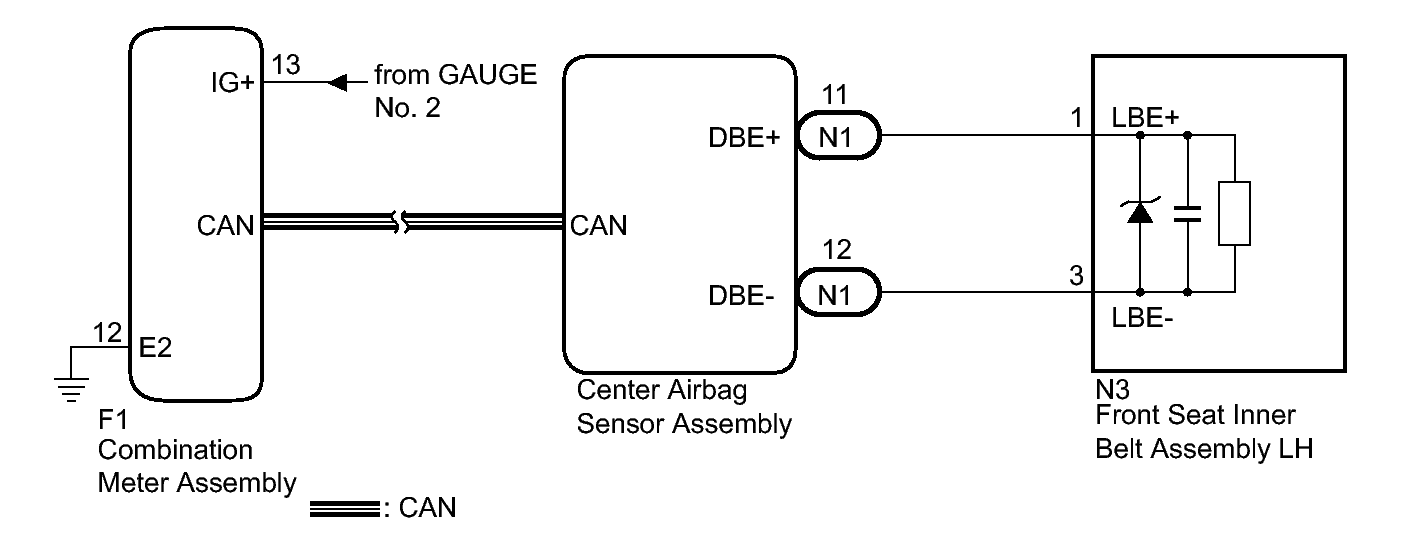

Fig 1: Identifying Seat Belt Warning Light Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
