Instrument Panel Safety Pad: Installation: Installation

1. Engage the claw and install the 5 new No. 3 instrument panel stays.

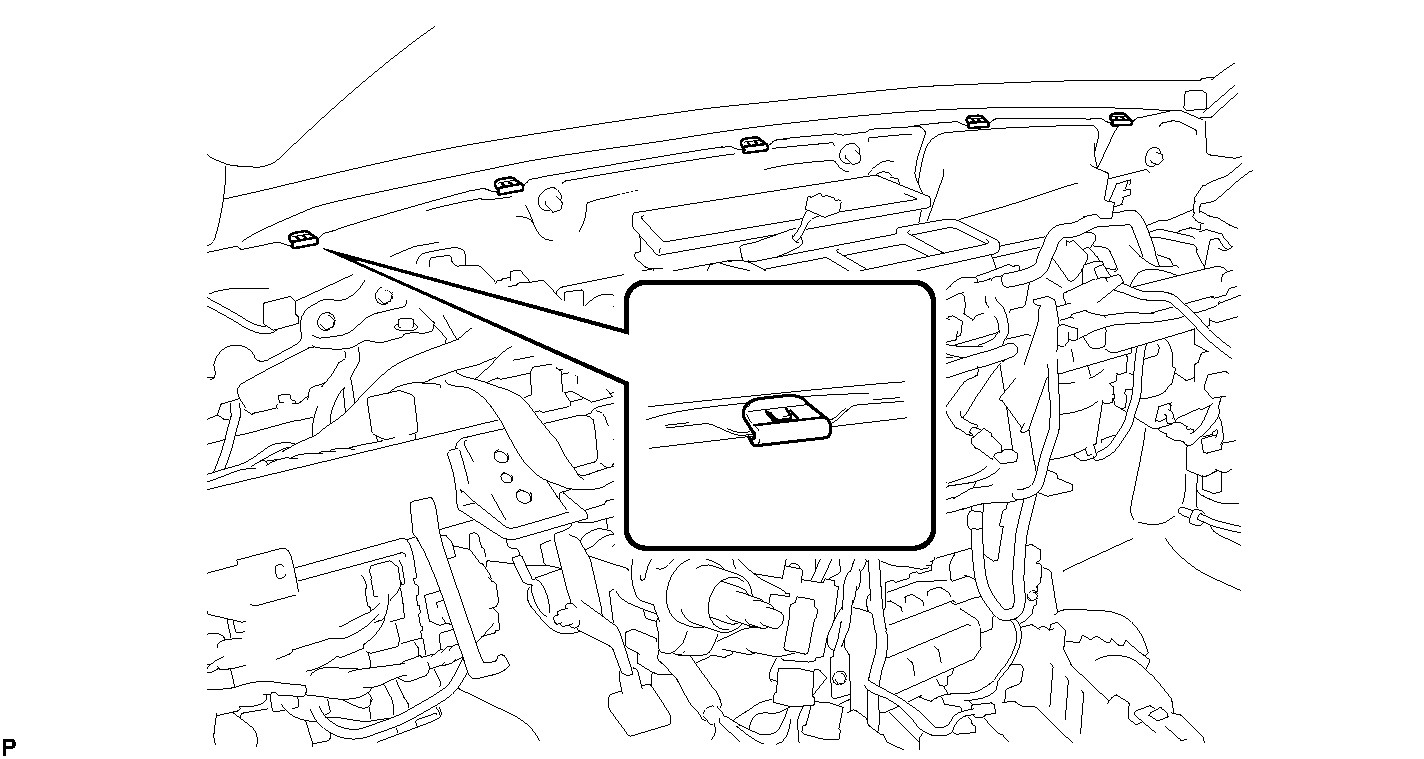

   Fig 1: Identifying Instrument Panel Stay Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 5 claws.
   NOTE:

   Do not allow the wire harness to get caught in the claws.

2. Install the 2 bolts <C> or <H> and 2 nuts <Z>.
   Fig 2: Identifying 2 Bolts <C> Or <H> And 2 Nuts <Z>

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage each clamp.
4. Install the bolt <J>.

   Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

5. Install the 2 passenger airbag bolts <K>.

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

6. Connect each connector and install the instrument panel safety pad assembly.
7. with Plasmacluster:
   1. Connect the connector.
      Fig 3: Locating Instrument Panel Safety Pad Assembly Connectors (For TMC Made)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 5 claws.
   NOTE:

   Do not allow the wire harness to get caught in the claws.

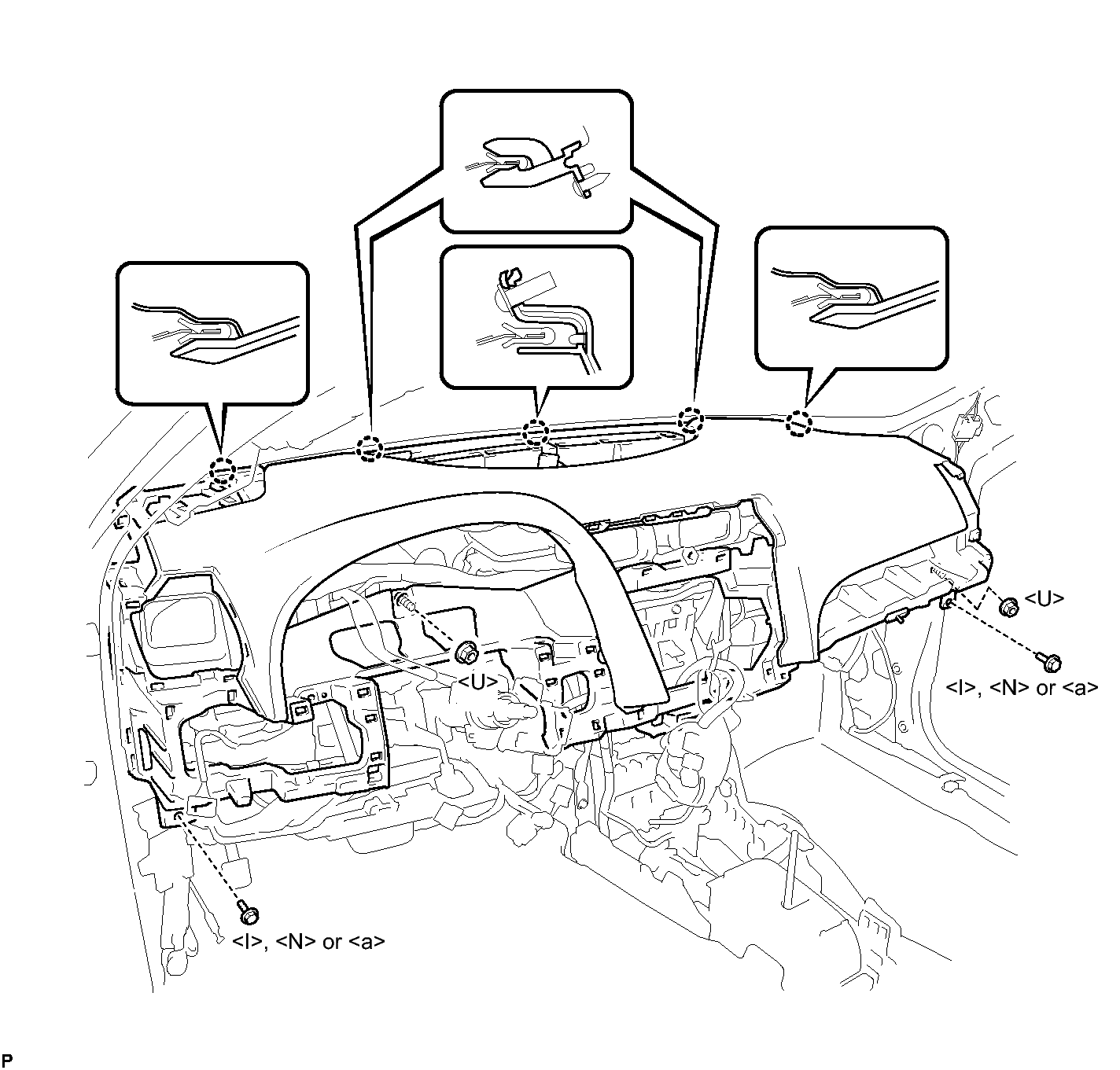

2. Install the 2 bolts <I>, <N> or <a> and 2 nuts <U>.
   Fig 4: Identifying 2 Bolts <I>, <N> Or <A> And 2 Nuts <U>

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage each clamp.
4. Install the bolt <Y>.

   Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

5. Install the 2 passenger airbag bolts <V>.

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

6. Connect each connector and install the instrument panel safety pad assembly.
7. with Plasmacluster:
   1. Connect the connector.

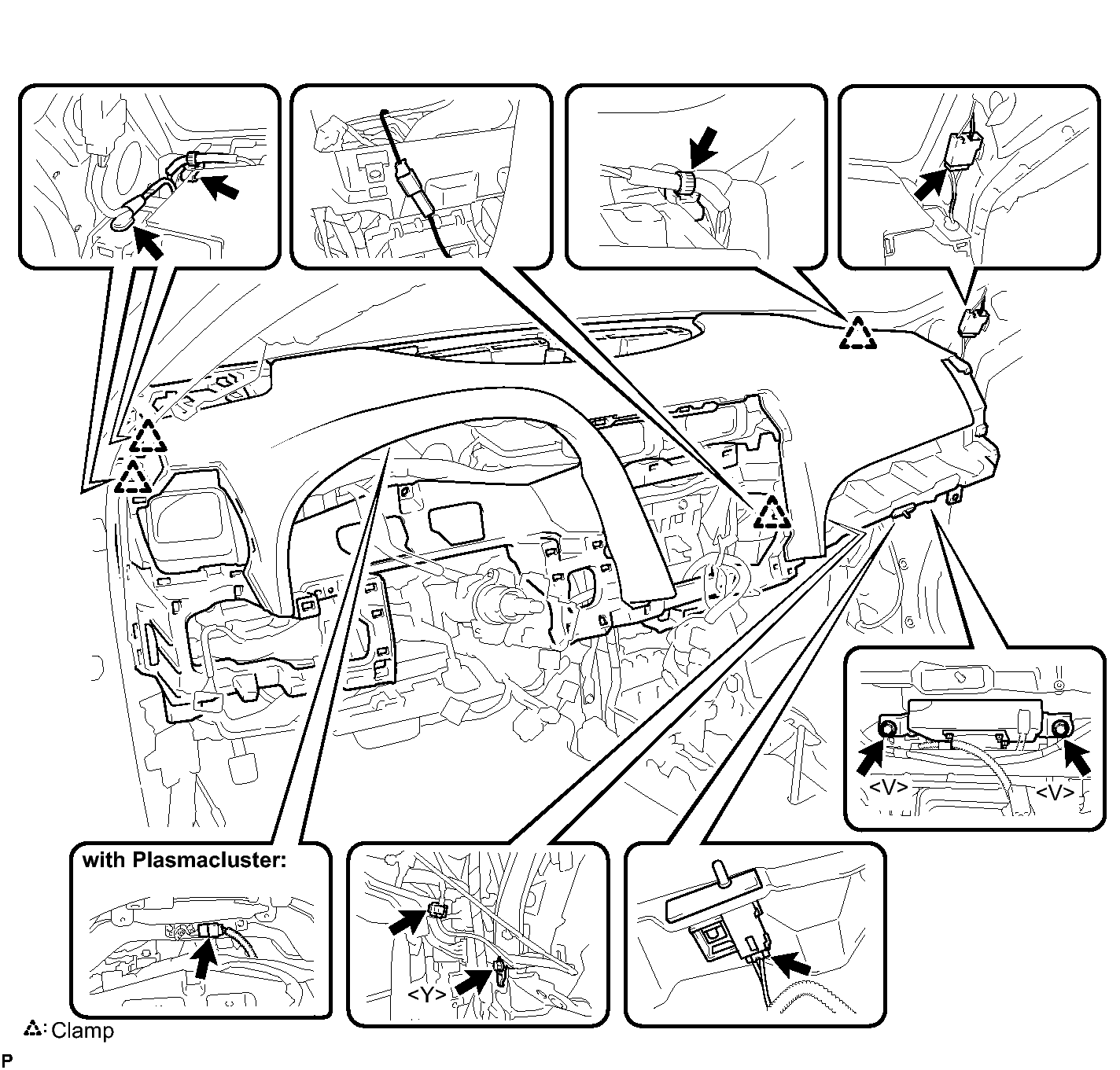

      Fig 5: Identifying Instrument Panel Safety Pad Assembly Connectors (For TMMK Made)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect each connector.
   Fig 6: Identifying No. 1 Defroster Nozzle Garnish Clips And Guides

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 guides.
3. Engage the 8 clips and install the No. 1 defroster nozzle garnish.

1. Engage the 2 guides.
   Fig 7: Identifying Instrument Panel No. 1 Speaker Panel Sub-Assembly Claws And Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 6 claws and the 2 clips to install the instrument panel No. 1 speaker panel sub-assembly.

1. Engage the 4 clips and install the instrument panel No. 1 register assembly.

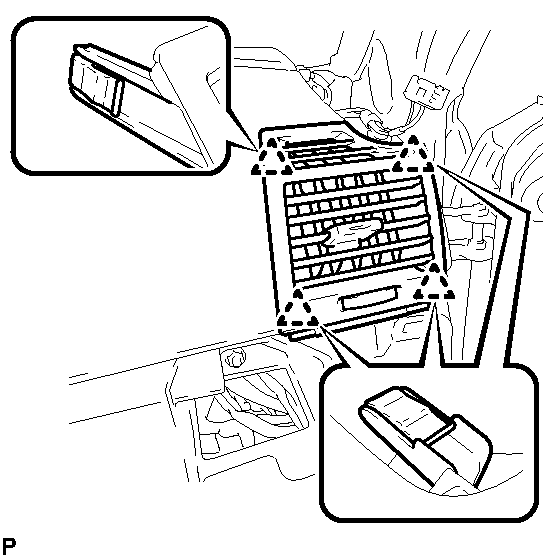

   Fig 8: Identifying Instrument Panel No. 1 Register Assembly Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures for the RH side and the LH side. Refer to INSTALLATION - Step 1 .

1. Engage the 2 guides.
   Fig 9: Identifying Instrument Panel No 2 Speaker Panel Claws And Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 6 claws and the 2 clips to install the instrument panel No. 2 speaker panel sub-assembly.

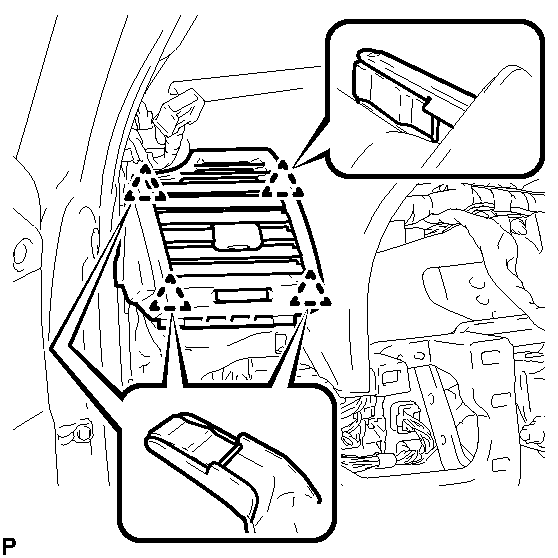

1. Engage the 4 clips and install the instrument panel No. 3 register assembly.
   Fig 10: Identifying Instrument Panel No. 3 Register Assembly Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the clip.

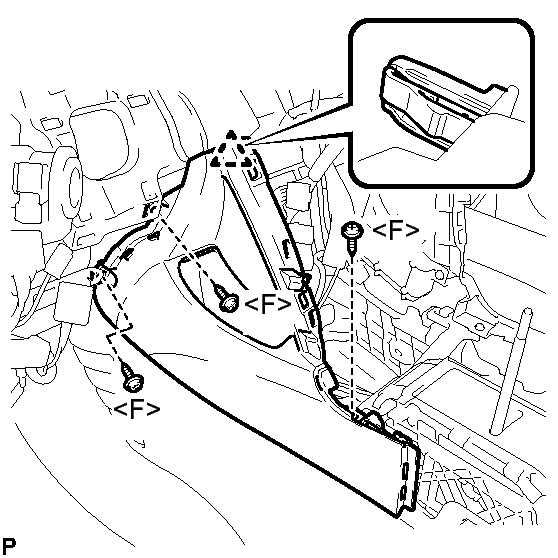

   Fig 11: Identifying No. 1 Console Box Insert Front Clip And Screws (For TMC Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 1 console box insert front with the 3 screws <F>.

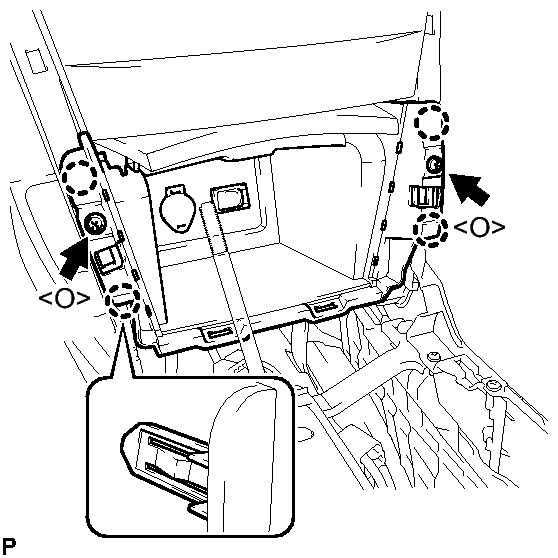

1. Engage the clip.

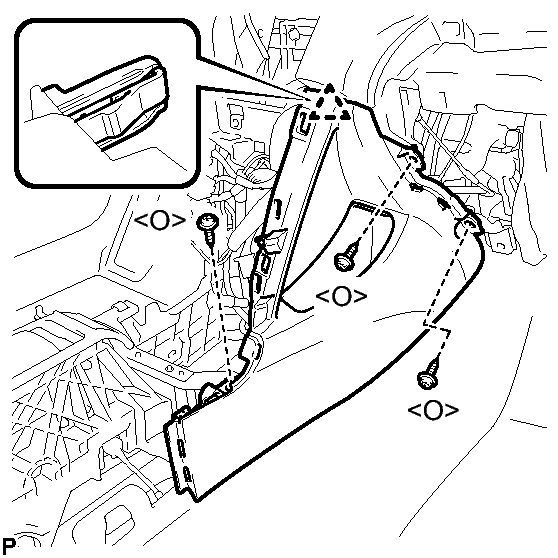

   Fig 12: Identifying No. 1 Console Box Insert Front Clip And Screws (For TMMK Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 1 console box insert front with the 3 screws <O>.

1. Engage the clip.
   Fig 13: Identifying No. 2 Console Box Insert Front Clip And Screws (For TMC Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 2 console box insert front with the 3 screws <F>.

1. Engage the clip.
   Fig 14: Identifying No. 2 Console Box Insert Front Clip And Screws (For TMMK Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 2 console box insert front with the 3 screws <O>.

1. Install the 2 screws <F>.
   Fig 15: Locating Console Box Assembly Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the console box assembly with the 2 bolts <G>.
   Fig 16: Locating Console Box Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the clamp.

1. Install the 2 screws <O>.

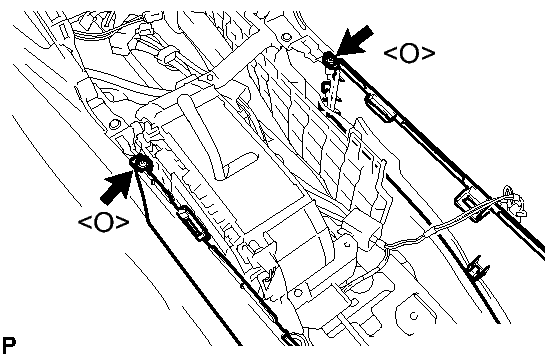

   Fig 17: Locating Console Box Assembly Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the console box assembly with the 2 bolts <S> or <T>.
   Fig 18: Locating Console Box Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the clamp.

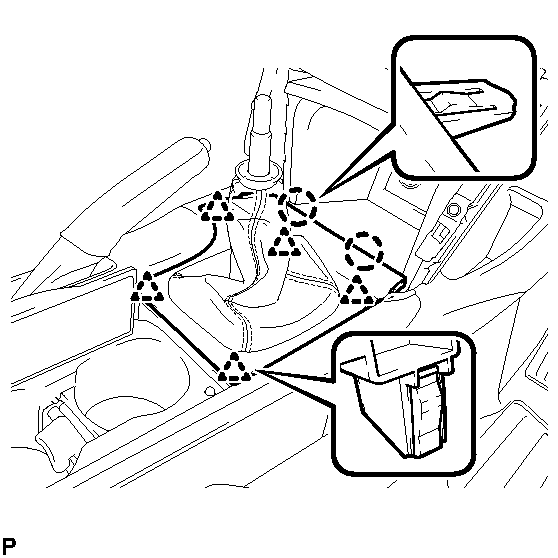

1. Install the console box carpet.
   Fig 19: Identifying Console Box Carpet

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the console box pocket.

1. Connect the connector.

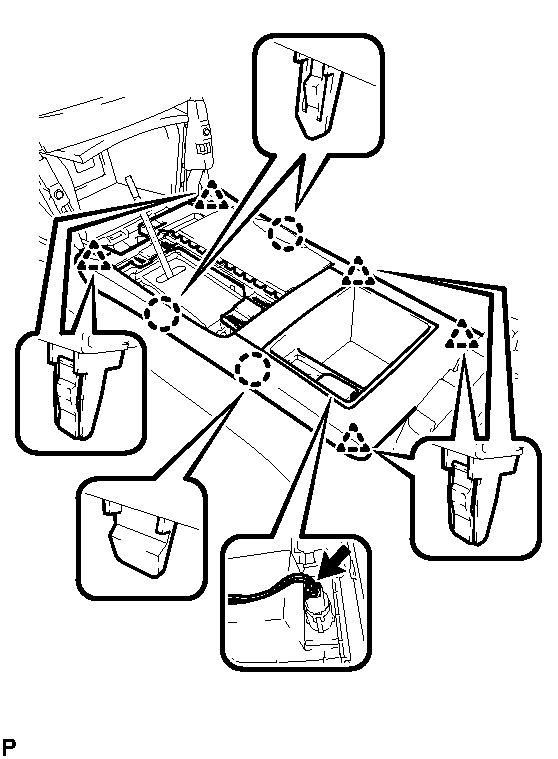

2. Engage the 7 clips and install the instrument panel No. 2 register assembly.

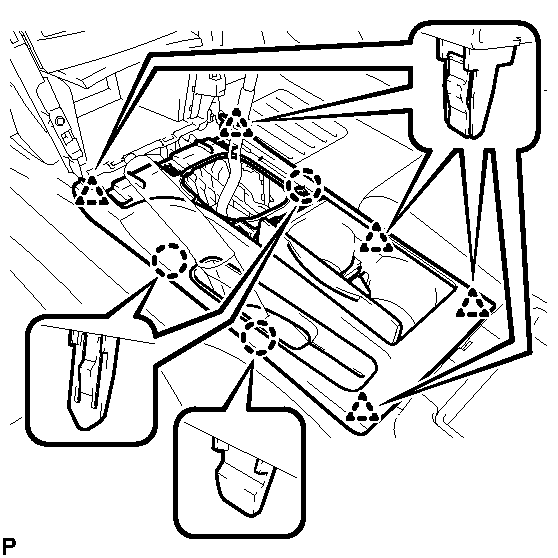

   Fig 20: Identifying Instrument Panel No. 2 Register Assembly Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect each connector.
2. Engage the 4 claws.
   Fig 21: Locating Upper Console Panel Sub-Assembly Claws And Screws (For TMC Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the upper console panel sub-assembly with the 2 screws <F>.

1. Connect each connector.
2. Engage the 4 claws.
   Fig 22: Locating Upper Console Panel Sub-Assembly Claws And Screws (For TMMK Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the upper console panel sub-assembly with the 2 screws <O>.

1. Connect the connector.
   Fig 23: Identifying Upper Console Rear Panel Sub-Assembly Claws And Clips (For Automatic Transaxle)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 3 claws and 5 clips to install the upper console rear panel sub-assembly.

1. Engage the 3 claws and 5 clips to install the upper console rear panel sub-assembly.
   Fig 24: Identifying Upper Console Rear Panel Sub-Assembly Claws And Clips (For Manual Transaxle)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. with Seat Heater System:
   1. Connect each connector.
2. Engage the 6 claws and the 3 clips to install the floor shift position indicator housing sub-assembly.
   Fig 25: Identifying Floor Shift Position Indicator Housing Sub-Assembly Claws And Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

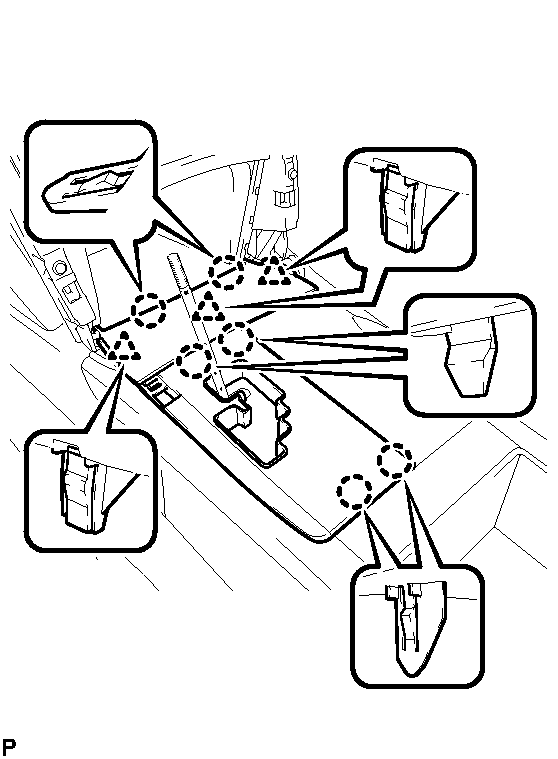

1. Engage the 2 claws and the 5 clips to install the upper console panel as shown in the illustration.
   Fig 26: Identifying Upper Console Panel Claws And Clips (For Manual Transaxle)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 clips and install the No. 2 instrument cluster finish panel garnish.
   Fig 27: Identifying No. 2 Instrument Cluster Finish Panel Garnish Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 clips and install the No. 1 instrument cluster finish panel garnish.
   Fig 28: Identifying No. 1 Instrument Cluster Finish Panel Garnish Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the shift lever knob sub-assembly.
   Fig 29: Turning Shift Lever Knob Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the shift lever knob sub-assembly.
   Fig 30: Identifying Shift Lever Knob

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the connector.
2. Engage the 3 claws and 3 clips.

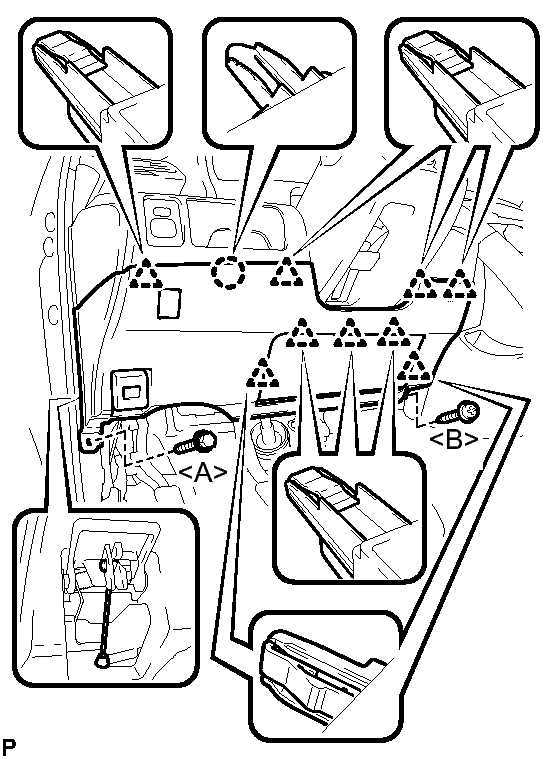

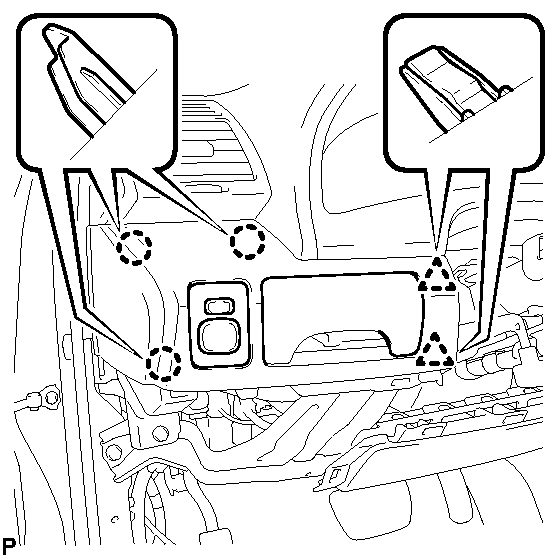

   Fig 31: Identifying Lower Instrument Panel Sub-Assembly Claws And Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 4 screws <B>.

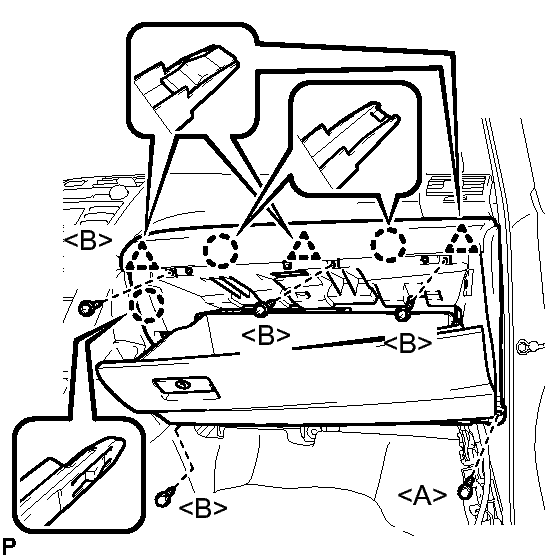

4. Install the lower instrument panel sub-assembly with the bolt <A>.

1. Engage the 3 claws and 3 clips.

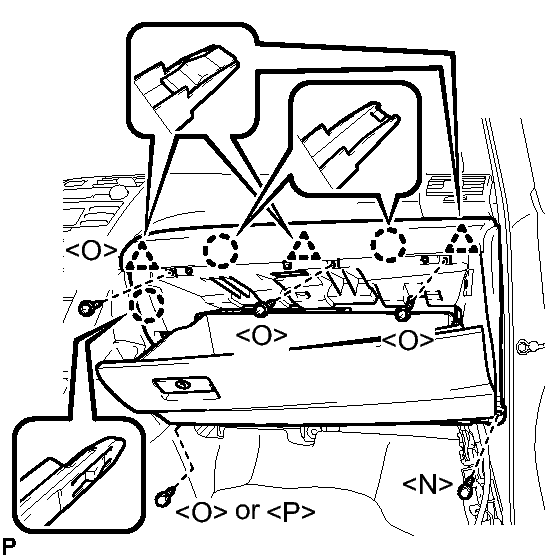

   Fig 32: Identifying Lower Instrument Panel Sub-Assembly Claws And Clips (For TMMK Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the screw <O> or <P> and 3 screws <O>.
3. Install the lower instrument panel sub-assembly with the bolt <N>.

1. Engage the 4 claws and 2 guides and install the instrument panel No. 2 under cover.
   Fig 33: Identifying Instrument Panel Under Cover Claws And Guides

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect each connector.
   Fig 34: Locating Combination Meter Assembly Screws (For TMC Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the combination meter assembly with the 4 screws <E>.

1. Connect each connector.
   Fig 35: Locating Combination Meter Assembly Screws (For TMMK Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the combination meter assembly with the 4 screws <R>.

1. Engage the guide and the 4 claws.

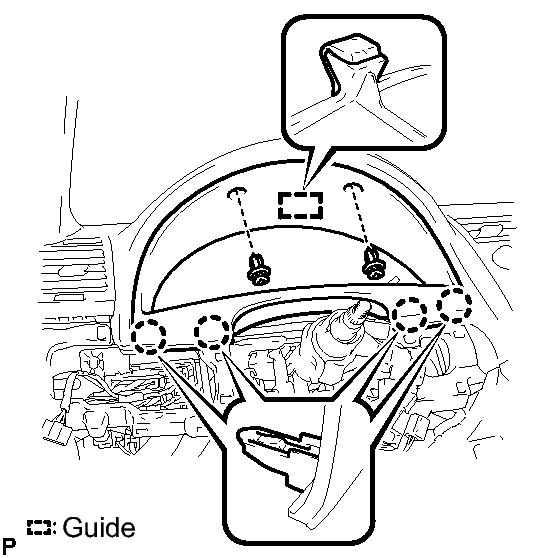

   Fig 36: Identifying Instrument Cluster Finish Panel Guide And Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the instrument cluster finish panel with the 2 clips.

1. Engage the 2 claws and 2 clips to install the lower instrument panel finish panel.
   Fig 37: Identifying Lower Instrument Panel Finish Panel Claws And Clips (W/O Smart Key System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the connector.
2. Engage the 2 claws and 2 clips to install the lower instrument panel finish panel.
   Fig 38: Identifying Lower Instrument Panel Finish Panel Claws And Clips (W/ Smart Key System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the connector.
2. Engage the 3 claws and 2 clips to install the No. 1 instrument panel sub-assembly.
   Fig 39: Identifying Instrument Panel Sub-Assembly Claws And Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the claw and install the upper steering column cover.

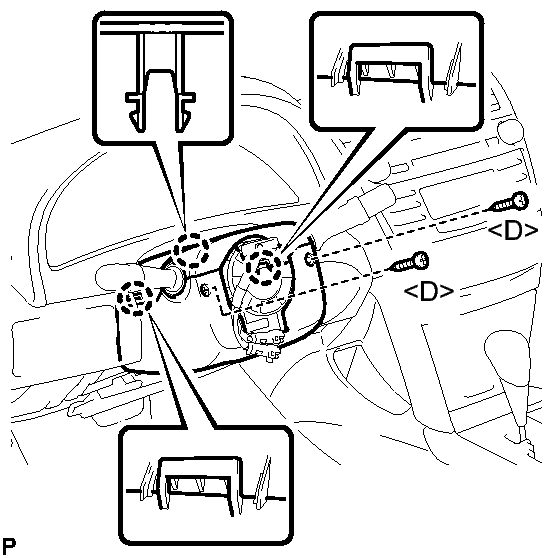

   Fig 40: Identifying Steering Column Cover Claws (For TMC Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws and install the lower steering column cover.
3. Install the steering column cover with the 2 screws <D>.

   Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

1. Engage the claw and install the upper steering column cover.

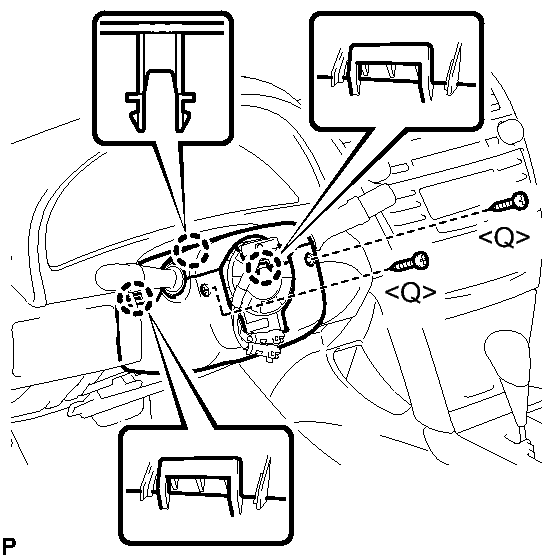

   Fig 41: Identifying Steering Column Cover Claws (For TMMK Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws and install the lower steering column cover.
3. Install the steering column cover with the 2 screws <Q>.

   Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

1. Install the air hose and connect the connector.
   Fig 42: Identifying Lower Instrument Panel Finish Panel Claw And Clips (For TMC Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the claw and the 9 clips.

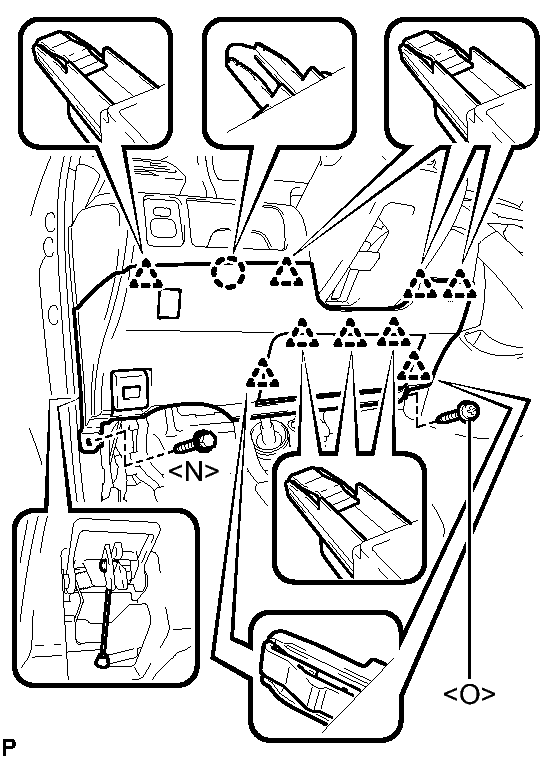

3. Instal the instrument panel finish panel LH with the screw <B> and bolt <A>.

1. Install the air hose and connect the connector.
   Fig 43: Identifying Claw, 9 Clips & Screw <O> And Bolt <N>

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the claw and the 9 clips.
3. Instal the instrument panel finish panel LH with the screw <O> and bolt <N>.
