  1. REMOVE NO. 1 INSTRUMENT PANEL PIN
    1. Remove the 2 screws <E> and 2 No. 1 instrument panel pins.

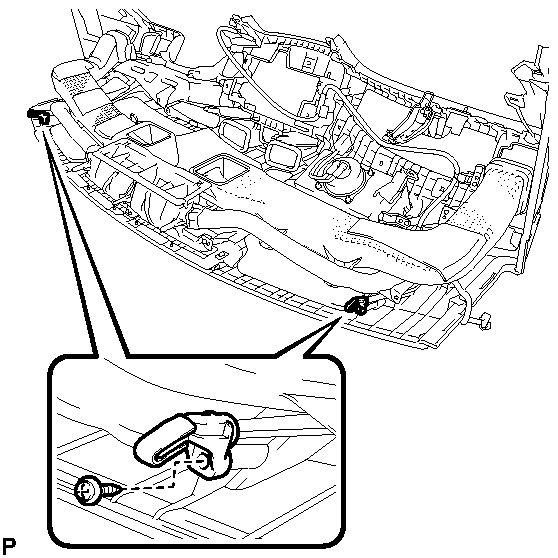

      Fig 1: Identifying No. 1 Instrument Panel Pins Location
      GTY305234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 HEATER TO REGISTER DUCT
    1. Remove the 3 screws <E> and No. 1 heater to register duct.
      Fig 2: Locating No. 1 Heater To Register Duct Screws
      GTY294527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 3 HEATER TO REGISTER DUCT
    1. Disengage the clamp.

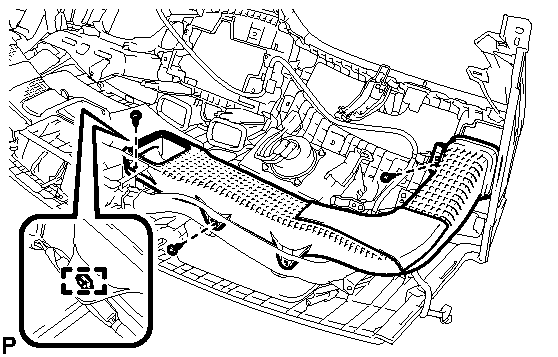

      Fig 3: Locating No. 3 Heater To Register Duct Screws
      GTY305480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws <E> and No. 3 heater to register duct.
  4. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. Remove the screw <E> and No. 1 side defroster nozzle duct.
      Fig 4: Locating No. 1 Side Defroster Nozzle Duct Screw
      GTY295596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
    1. Remove the screw <E> and No. 2 side defroster nozzle duct.
      Fig 5: Locating No. 2 Side Defroster Nozzle Duct Screw
      GTY295383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE DEFROSTER NOZZLE ASSEMBLY
    1. Remove the 3 screws <E> and defroster nozzle assembly.
      Fig 6: Locating Defroster Nozzle Assembly Screws
      GTY295442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 HEATER TO REGISTER DUCT
    1. Remove the 4 screws <E> and No. 2 heater register duct.
      Fig 7: Locating No. 2 Heater To Register Duct Screws
      GTY295210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SIDE DEFROSTER NOZZLE LH
    1. Disengage the 6 claws and remove the side defroster nozzle LH.
      Fig 8: Locating Side Defroster Nozzle LH Claws
      GTY304572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SIDE DEFROSTER NOZZLE RH
    1. Disengage the 6 claws and remove the side defroster nozzle RH.
      Fig 9: Locating Side Defroster Nozzle Rh Claws
      GTY305222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CENTER INSTRUMENT PANEL BRACKET SUB-ASSEMBLY
    1. Remover the 2 screws <E> and center instrument panel bracket sub-assembly.
      Fig 10: Locating Center Instrument Panel Bracket Sub-Assembly Screws
      GTY295057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY  . Refer to REMOVAL - Step 8
  12. REMOVE GLOVE BOX LIGHT ASSEMBLY
    1. Disengage the 2 claws and remove the glove box light assembly.
      Fig 11: Identifying Glove Box Light Assembly Claws Location
      GTY307591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 3 INSTRUMENT PANEL WIRE
    1. Disconnect the connector.

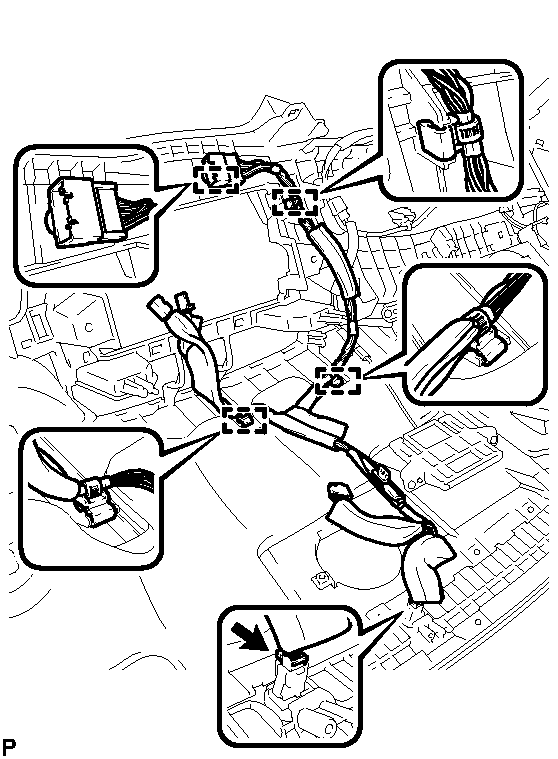

      Fig 12: Identifying No. 3 Instrument Panel Wire Connector Location
      GTY295296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage each clamp and remove the No. 3 instrument panel wire.
  14. REMOVE ANTENNA CORD SUB-ASSEMBLY  . Refer to REMOVAL - Step 2
  15. REMOVE NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System)  . Refer to REMOVAL - Step 7
  16. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
    1. Disengage the 2 claws and remove the automatic light control sensor as shown in the illustration.
      Fig 13: Identifying Automatic Light Control Sensor Claw
      GTY117549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not pry the automatic light control sensor out through the top.
