Front Passenger Side Seat Belt Warning Light Malfunction (TO 12/2010): Wiring Diagram

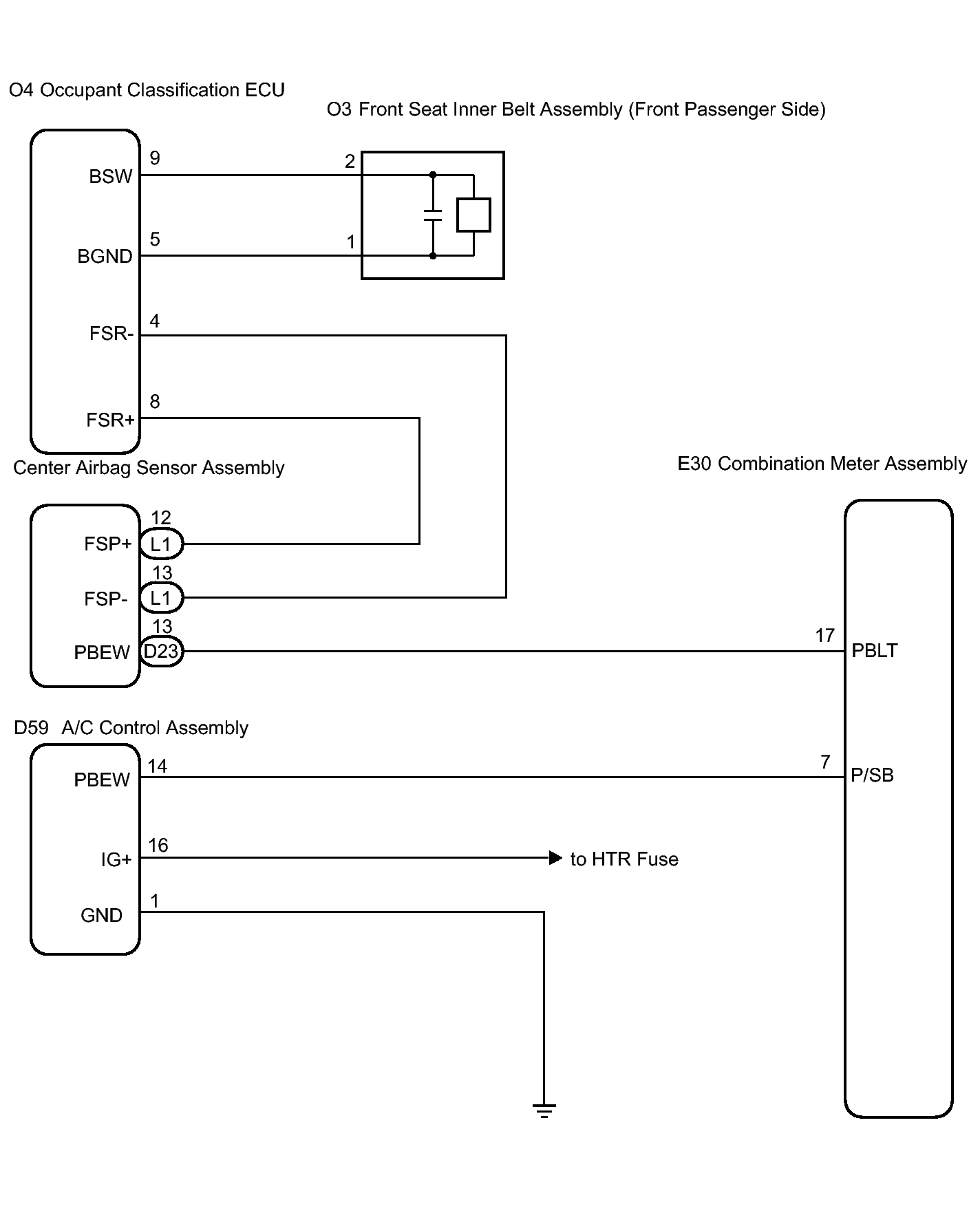

Fig 1: Front Passenger Side Seat Belt Buckle Switch Circuit - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
