Entire Combination Meter does not Operate: Wiring Diagram

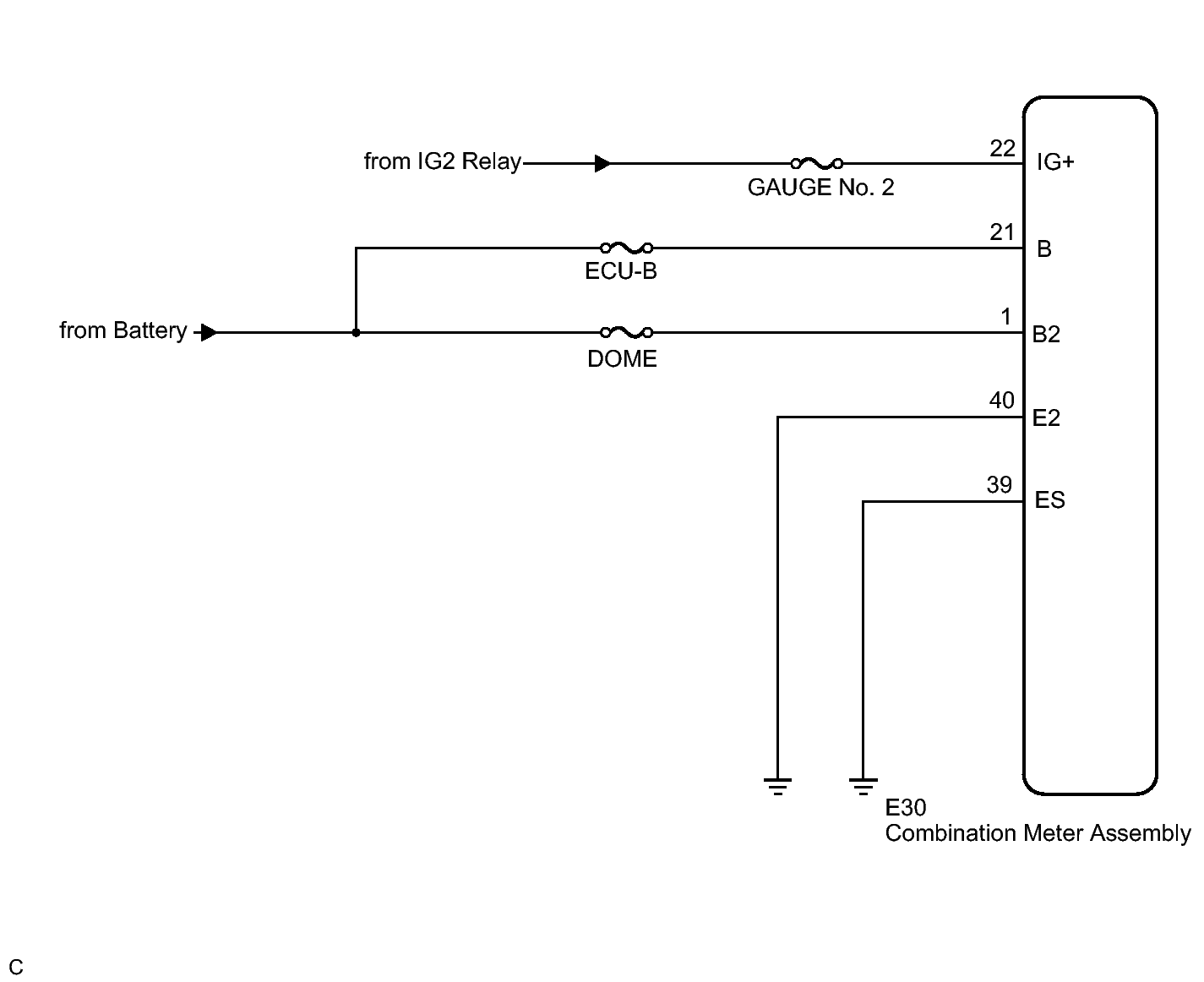

Fig 1: Combination Meter Assembly Circuit - Wiring Diagram

GTY305780
