Parts Location: Illustration

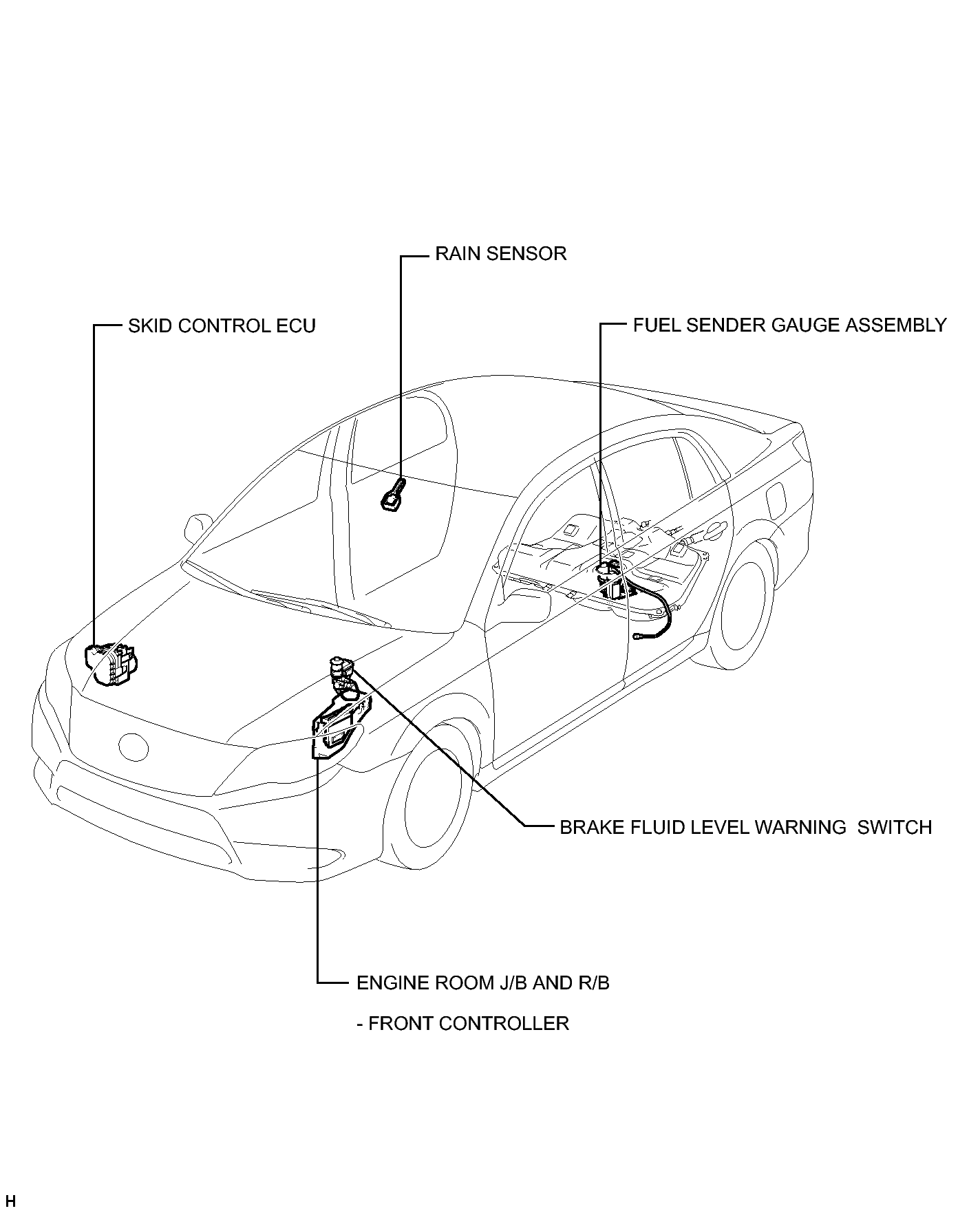

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 3)
GTY299414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

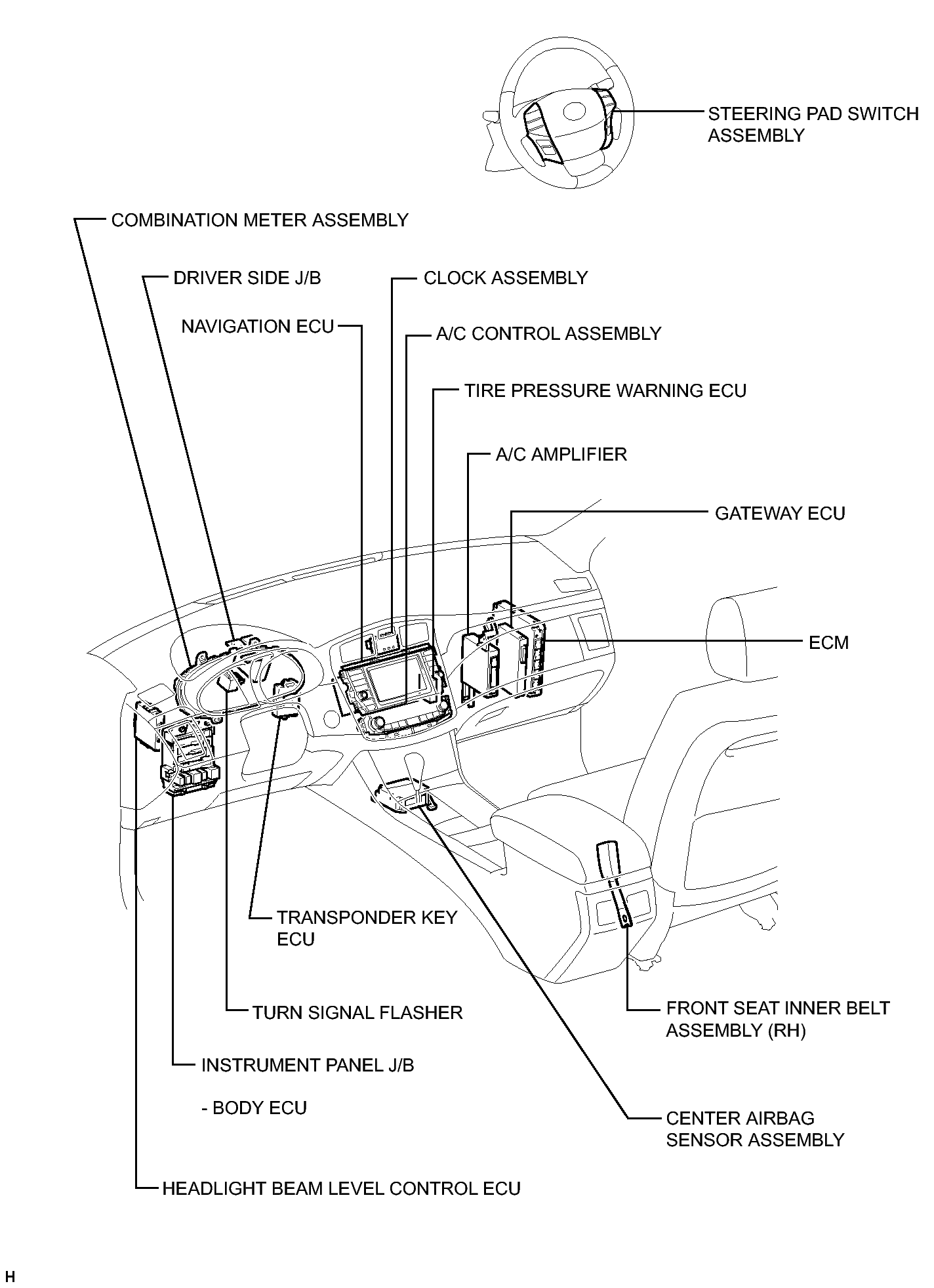

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 3)
GTY300768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

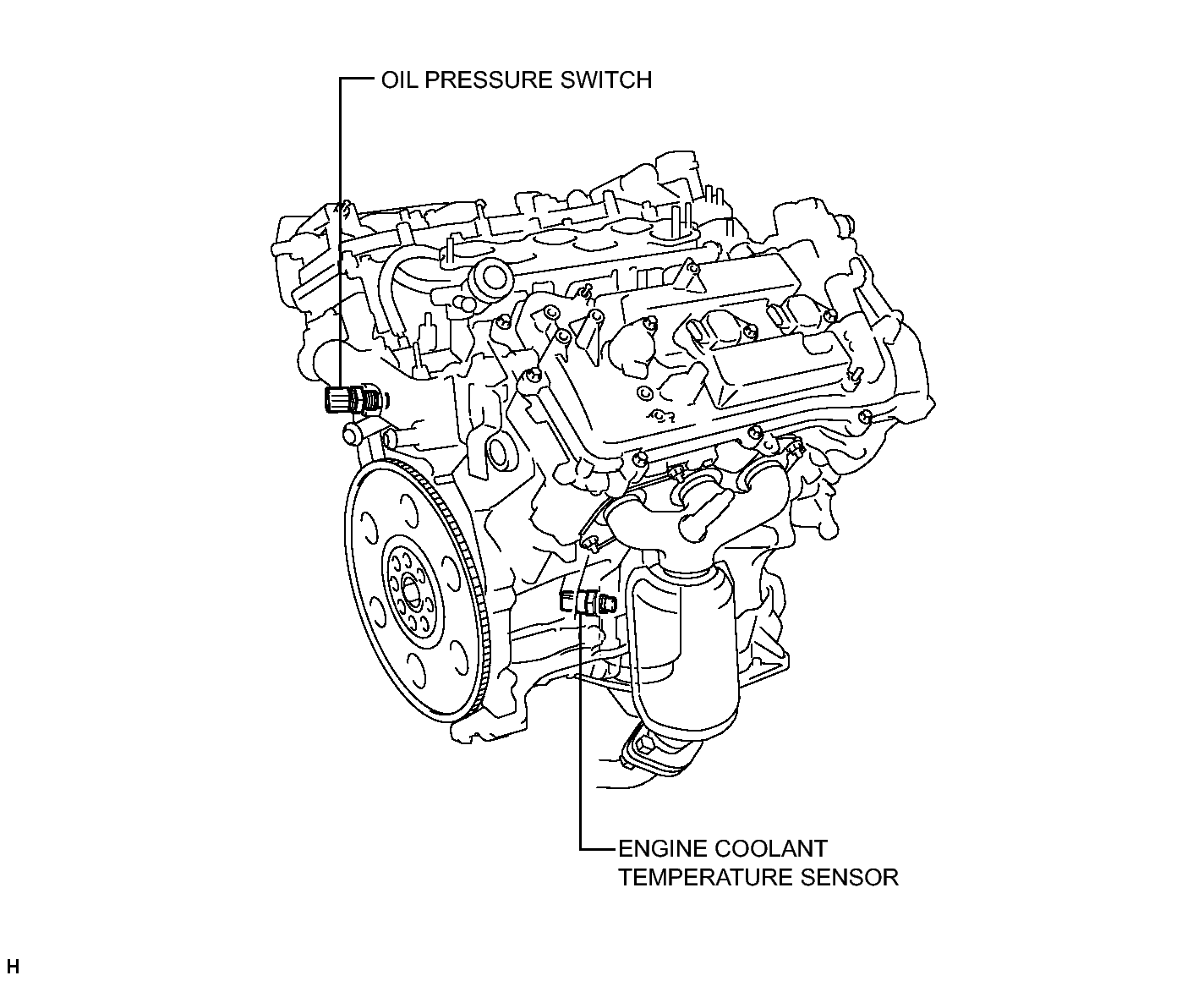

Fig 1: Identifying Meter / Gauge System Components Location (3 Of 3)
GTY303422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
